6. Charge Jack – used to charge the Li-Ion battery.
Accepts a 5.5mm x 2.5mm plug with the center positive.
Must be supplied with a 12VDC regulated power supply
with at least a 400mA current capacity.
7. Charge Light –
RED = Beltpack battery is charging.
GREEN = Beltpack battery is charged.
8. Headset Connector – standard 4-pin XLR connector.
Male XLR connector for Telex units, female XLR
connector for RTS units. A dynamic or electret
microphone headset is automatically detected by the
beltpack and a bias voltage is supplied if necessary.
9. Programming Input – this RJ-45 jack is used for wired
Ethernet connections, configuration, and to update
firmware.

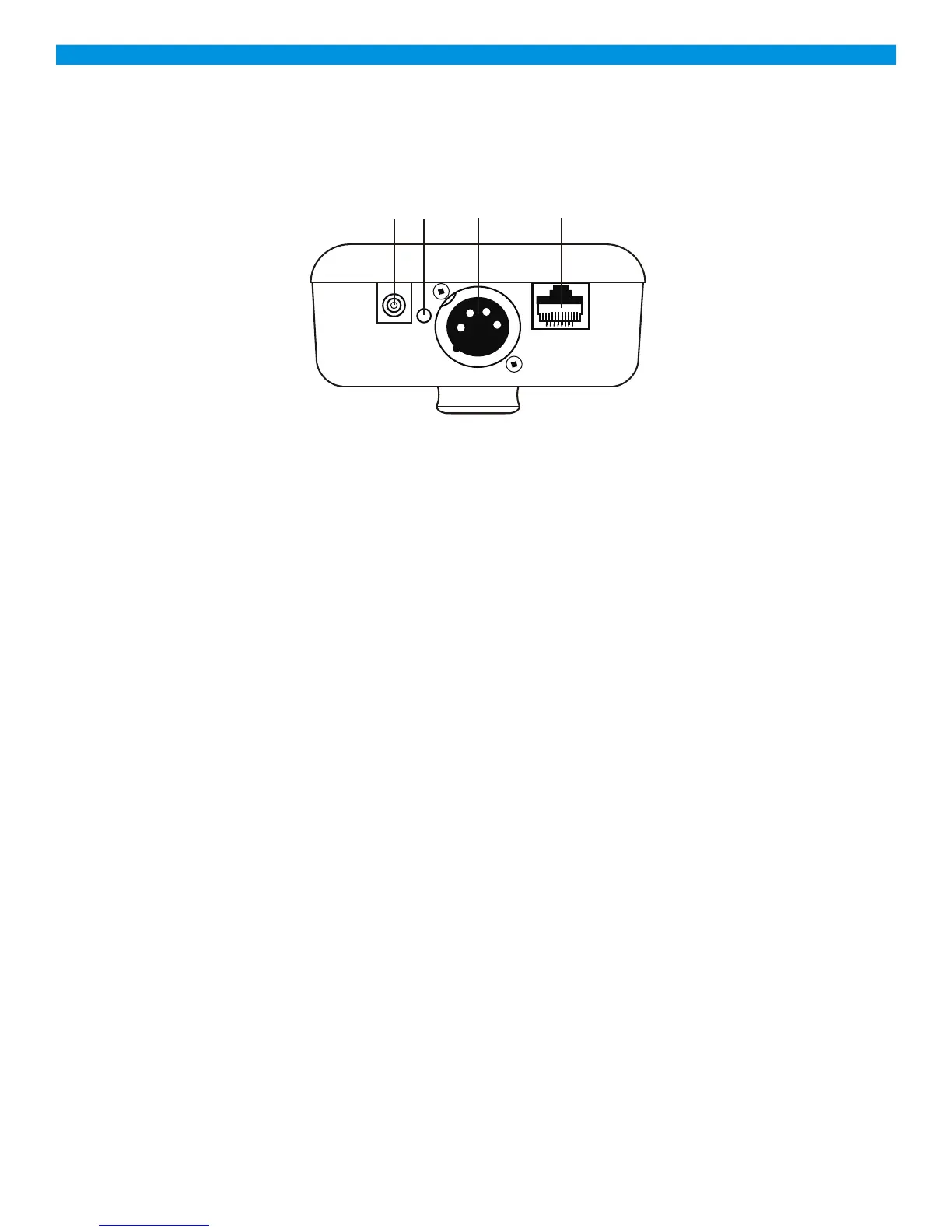

Figure 3-2
TR-240 Beltpack
Bottom View
Controls and Connections - Bottom Panel
3-2
