RTS BTR-240 - Section 10 RF Channels and Interference; RF Channels

802.11 RF Channels

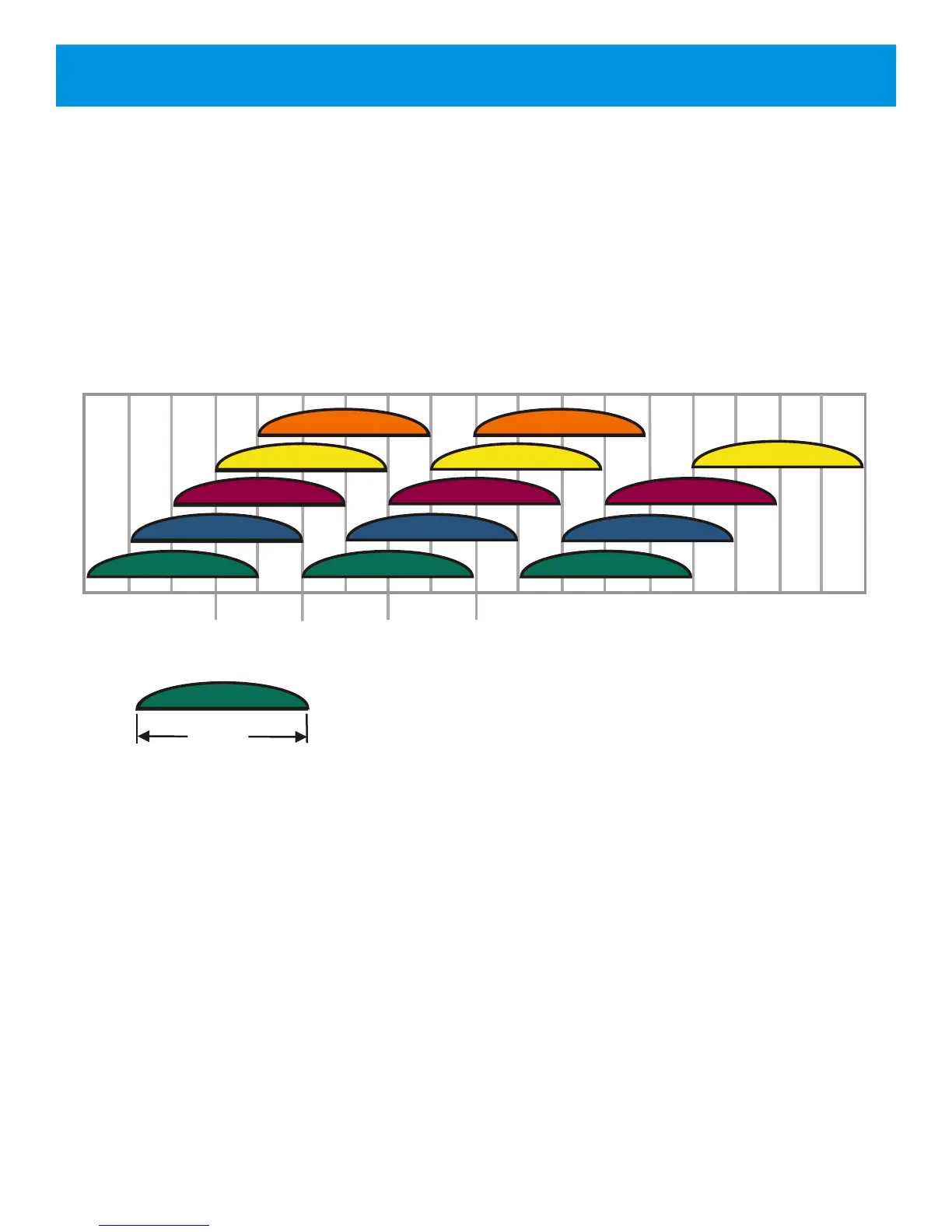

Figure 10-1 displays the entire 802.11 RF channel spectrum for
2.4GHz. In North America, the BTR-240 system has the ability to
operate on any RF channel between 1 and 11. In Europe, China,
and Japan, the BTR-240 system has the ability to operate on any
RF channel between 1 and 13.
\
Although there are several different frequency channel settings,
there is overlap between the channels. In North America, there
are three non-overlapping channels available (Channels 1, 6, and
11). In Europe, China, and Japan, there are more non-overlapping
channels available.
Section 10 - RF Channels & Interference
Channel Numbers
Channel Center Frequencies (in GHz)
22 MHz
Channel Bandwidth
BTR-240 & TR-240 RF Channelization Scheme
1 2 3 4 5 6 7 8 9 10 11 12 13 14
1
2
3
4
5
6
7
8
9
10
11
2.412 2.422
2.432
2.442
2.452
2.462
2.472
2.417 2.427
2.437
2.447
2.457 2.467
12
13
14
2.484
2.477
Fig 10-1
BTR-240 & TR-240 RF Channelization Scheme
10-1
