37. Manually place and tighten the hex bolts to secure the external radial bearing housing cover
to the radial bearing housing.

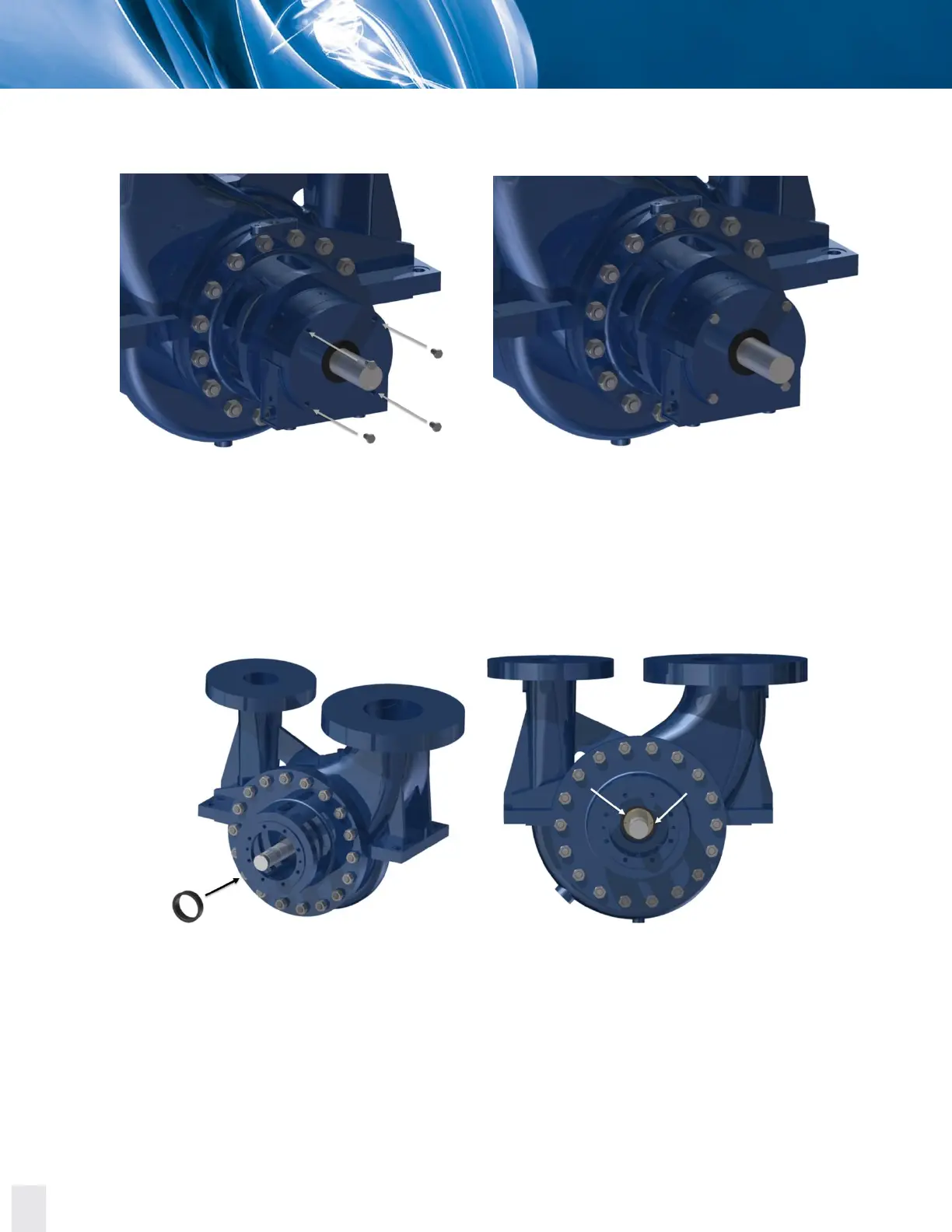

Figure 8.36JD. Placing and tightening the hex bolts to secure the external radial bearing housing cover to the
radial bearing housing.
NON-COUPLING SIDE (AXIAL) BEARING HOUSING
38. Insert the axial throat bushing over the shaft into the axial casing cover from the non-
coupling side.
Figure 8.37JD. Inserting the axial throat bushing over the shaft into the axial casing cover from the non-coupling
side.
