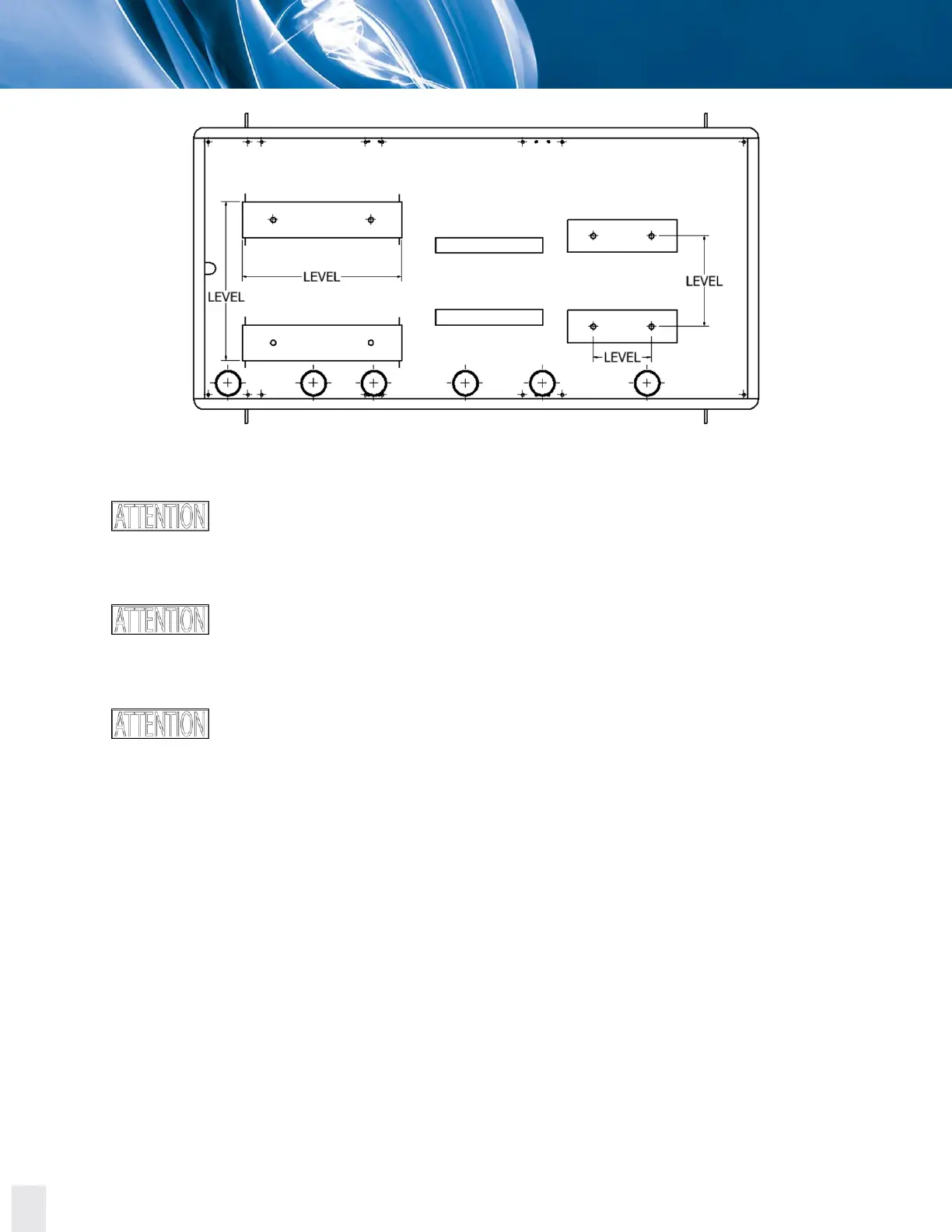

Figure 4.2 Baseplate leveling planes
The alignment of the baseplate is effected only with the help of adjusting screws.
Wedges may not be used for this purpose.
NOTE: Each jacking bolt should have a mounting pad, to distribute the stresses
evenly.
NOTE: The baseplate should be mounted without distortion. Under no
circumstances should the driver be higher than the pump.
6. When baseplate is level, 'snug' the foundation bolt nuts, but do not tighten completely.
4.3 GROUTING*
NOTE: The information included in this section is intended as a general guideline. For further
information refer to the corresponding section in API Recommended Practices 686.
IMPORTANT: It is recommended that the customer consult a competent specialist skilled in the field of
grouting to insure proper installation of all grouting.
