J Line Pump
Horizontal Double Suction Centrifugal Pump – API 610 Process Pump
119 V1.032818
In search of a match between a tab of the non-coupling side (axial) bearing lock
washer and a slot of the non-coupling side (axial) bearing lock nut, the lock nut
should always move forward, never backwards.
52. Insert the axial bearing housing over the shaft from the non-coupling side until it reaches the
axial casing cover.

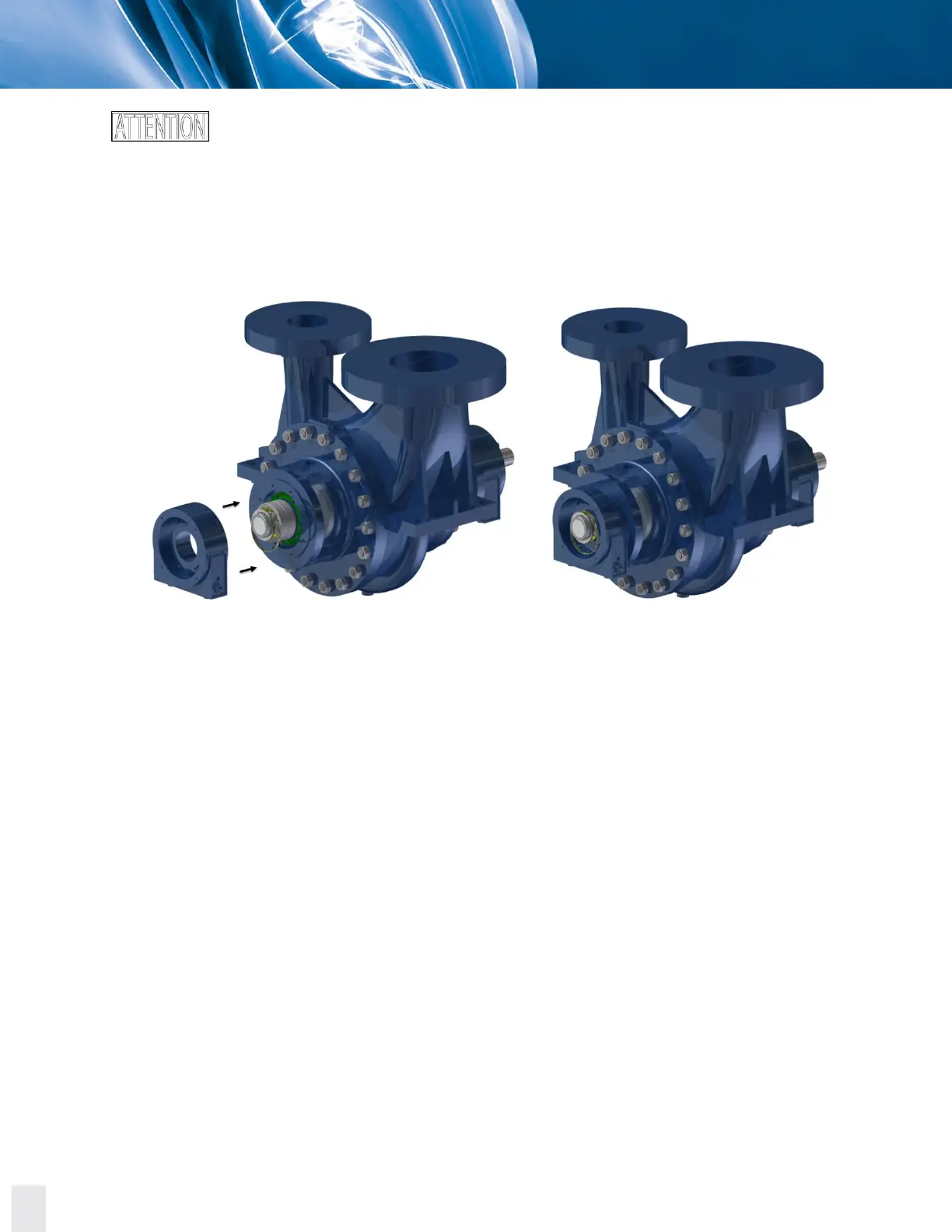

Figure 8.51JD. Inserting the axial bearing housing over the shaft from the non-coupling side.
