J Line Pump
Horizontal Double Suction Centrifugal Pump – API 610 Process Pump
40 V1.032818
3. Locate the constant level oiler assembly and identify its three main components: the oil tank,
the oil tank cap and the oil tank reservoir.

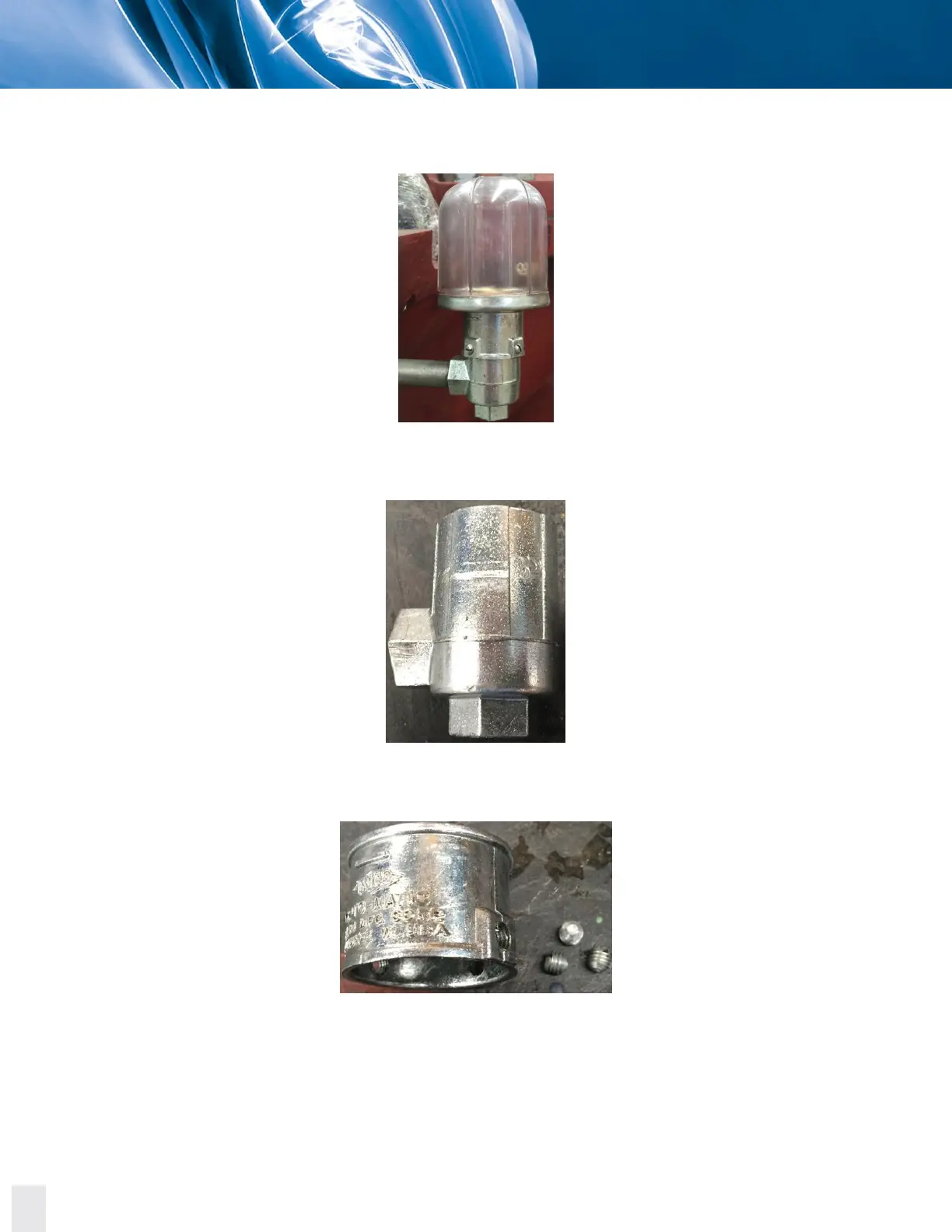

Figure 6.1a. Constant level oiler (assembly).
Figure 6.1b. Oil tank.
Figure 6.1c. Oil tank cap (with socket screws).
