J Line Pump
Horizontal Double Suction Centrifugal Pump ā API 610 Process Pump
74 V1.032818

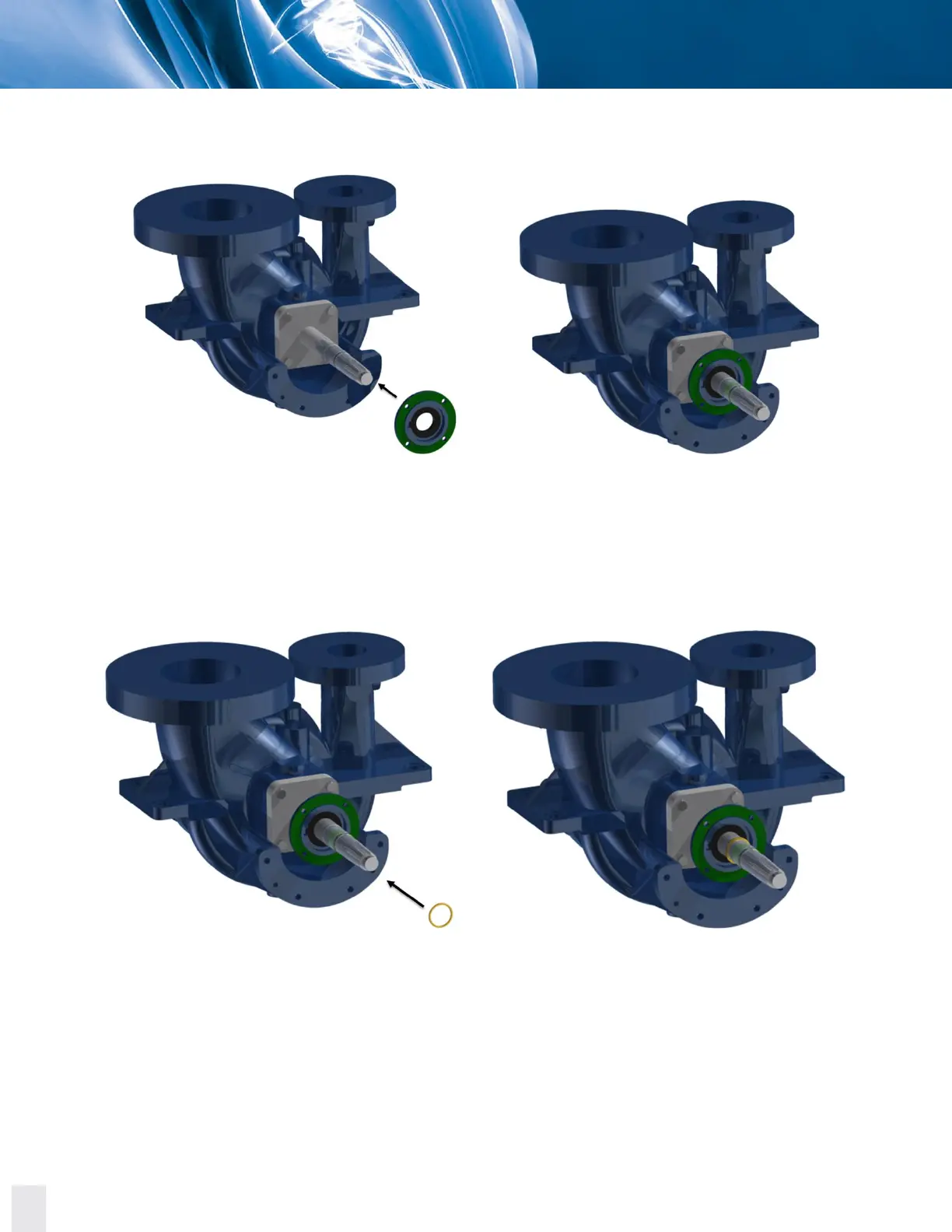

29. Insert the internal radial bearing housing cover with its corresponding gasket over the shaft
from the coupling side.
Figure 8.28. Inserting the internal radial bearing housing cover with its corresponding gasket over the shaft from
the coupling side.
30. Insert a radial bearing spacer over the shaft from the coupling side until it reaches the
shoulder on the shaft.
Figure 8.29. Inserting a radial bearing housing over the shaft from the coupling side.
