Horizontal End Suction Pump for Chemical Process, ASME B73.1-2001
Installation, Operation, and Maintenance Manual – CPP21

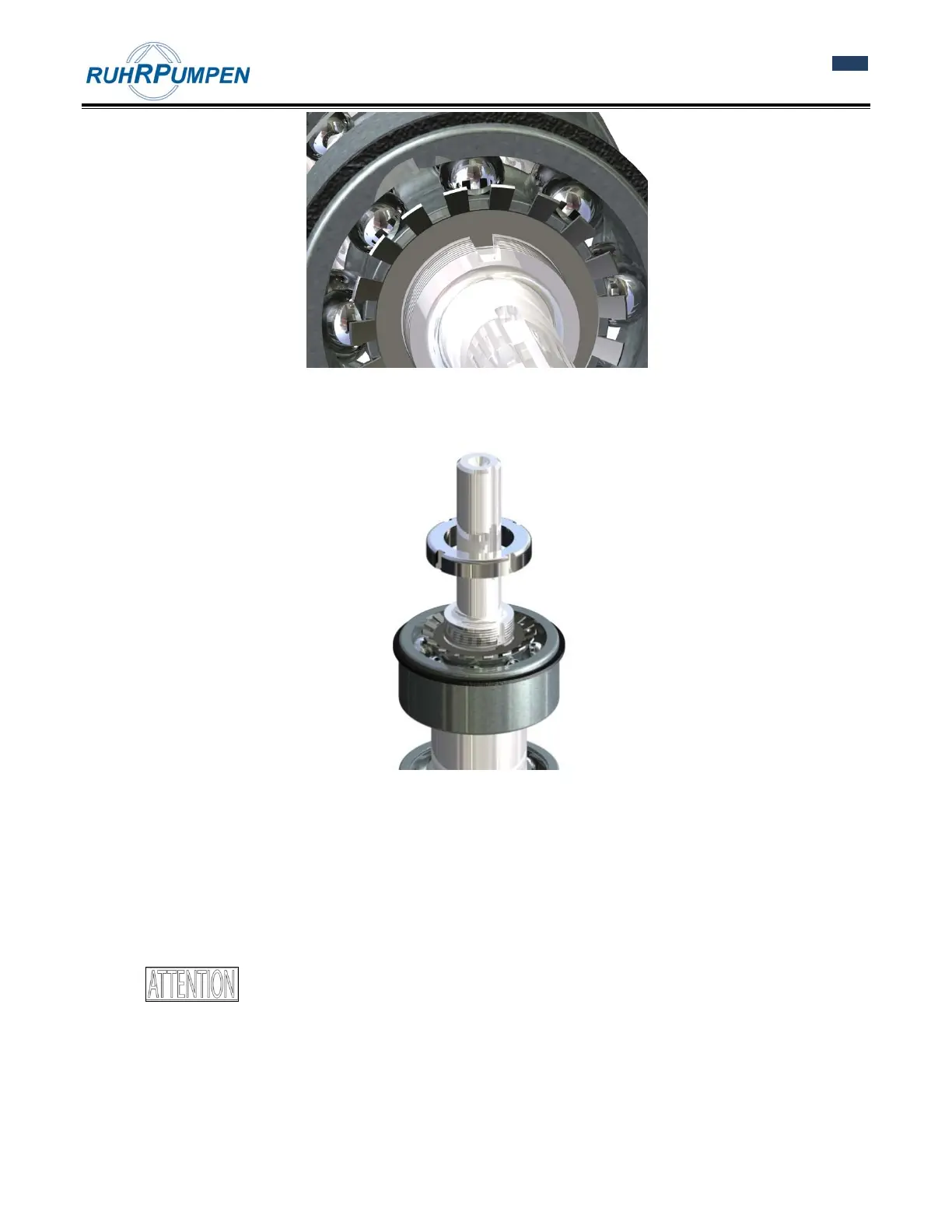

Figure 8.3 Positioning the lock washer.
5. Position the locknut with the taper towards the side of the lock washer at full-stop.
Figure 8.4 Positioning the locknut.
6. Now take the shaft out of the press and turn it over 180°, place it back in the press to reassemble the
radial bearing.
a. Place the radial bearing in the induction heater. Turn on the heater. Continuously measure the
temperature of the inner race, looking to reach 230 °F (110 °C).
• Measure the temperature continuously with an infrared thermometer, pointing
to the inner race of the bearing.
