Horizontal End Suction Pump for Chemical Process, ASME B73.1-2001
Installation, Operation, and Maintenance Manual – CPP21
SECTION TEN - PARTS INFORMATION

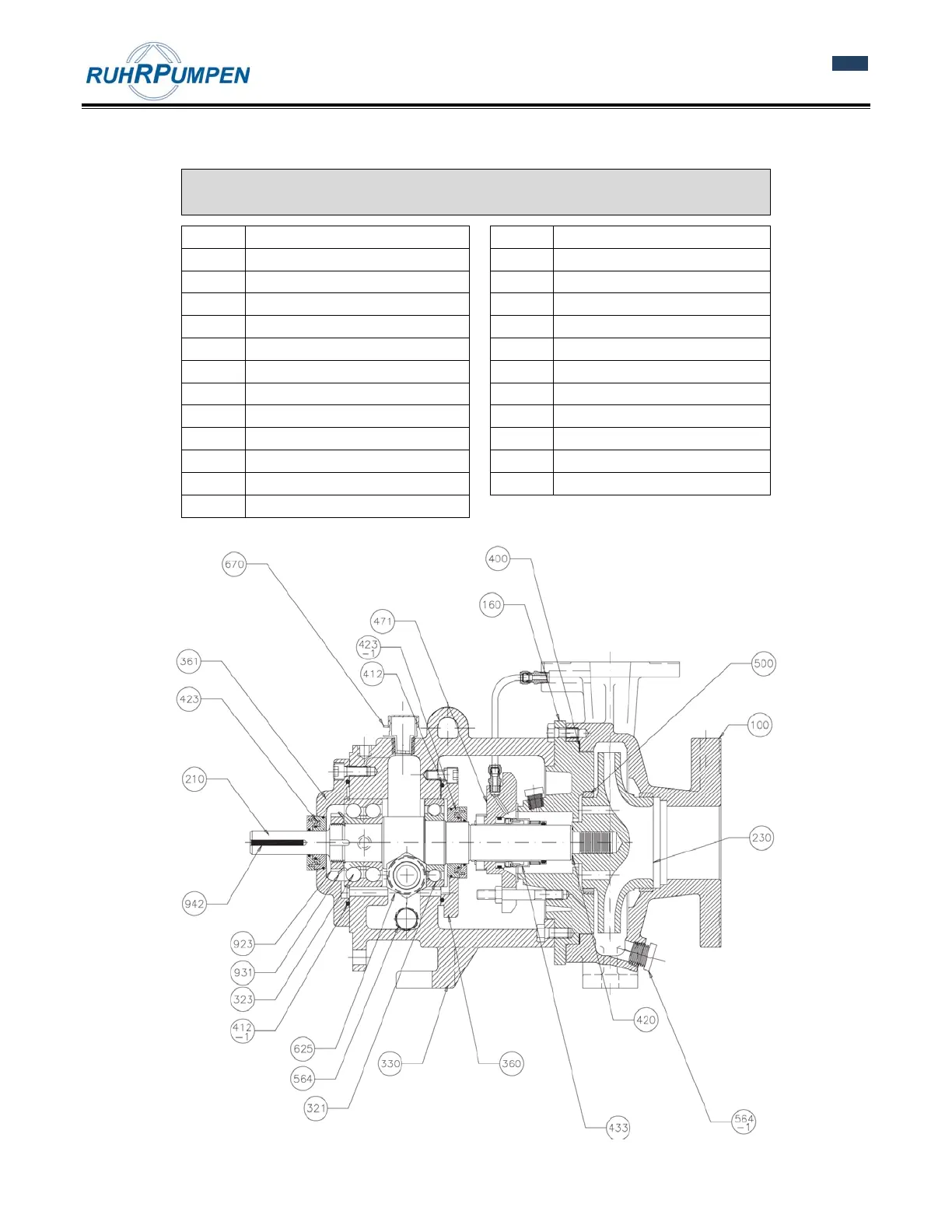

Bearing Frame: B-10
100 Case 423-1 Radial Labyrinth Seal
230 Impeller 423 Axial Labyrinth Seal
160 Case Cover 400 Case Gasket
471 Mechanical Seal Head 210 Shaft
330
Bearing Frame
670
Breather
361 Axial Bearing Cover 564 Radiator Plug
360 Radial Bearing Cover 625 Oil Sight
412-1 Axial Cover O-Ring 923 Bearing Nut
412 Radial Cover O-Ring 564-1 Case Drain Plug
321
Ball Bearing
931
Bearing Washer
323 Angular Contact Ball Bearing 942 Key
420 Impeller O-Ring 500 Adapter Ring
433 Mechanical Seal
