Horizontal End Suction Pump for Chemical Process, ASME B73.1-2001
Installation, Operation, and Maintenance Manual – CPP21

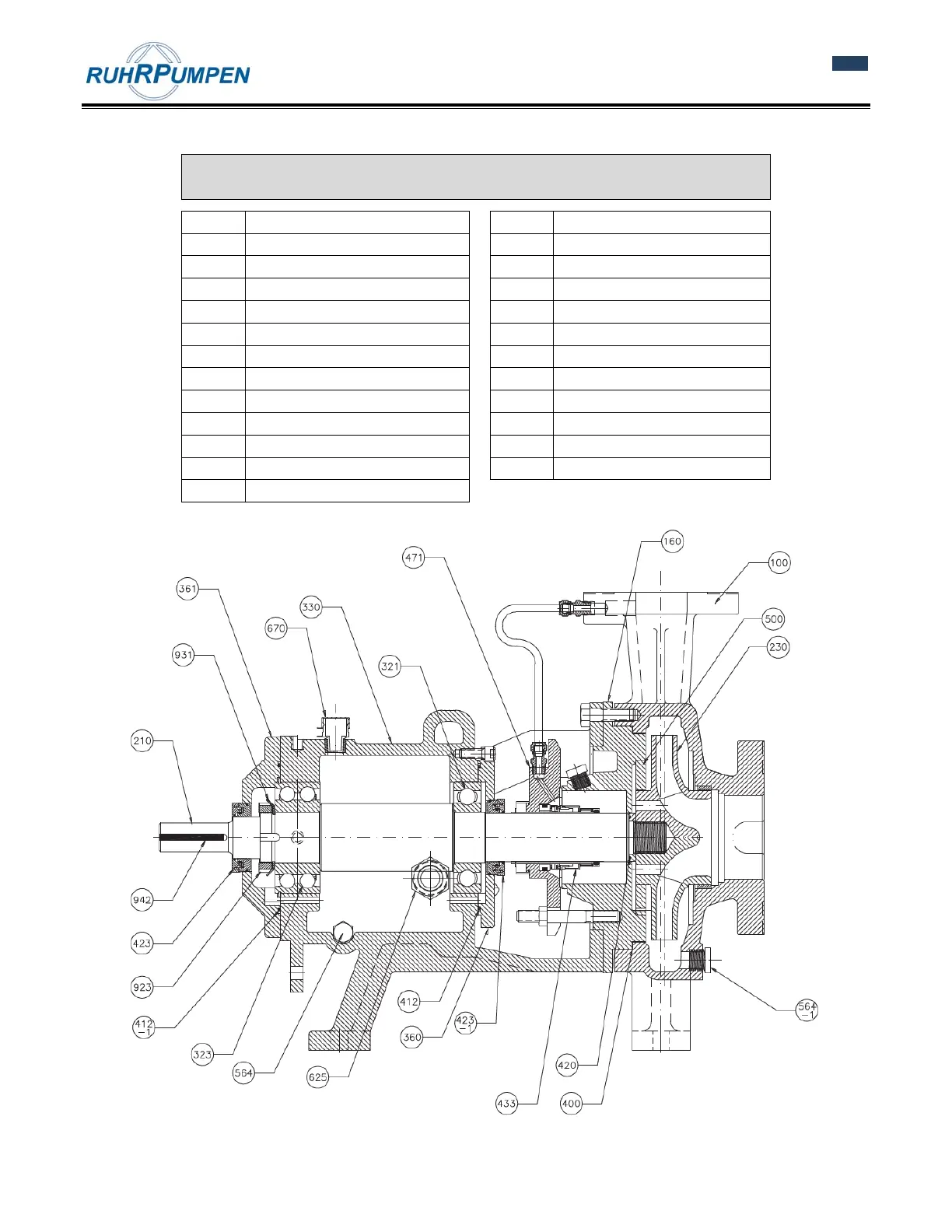

Bearing Frame: B-30A / B-30B
100 Case 423-1 Radial Labyrinth Seal
230 Impeller 423 Axial Labyrinth Seal
160 Case Cover 400 Case Gasket
471
Mechanical Seal Head
210
Shaft
330 Bearing Bracket 942 Key
361 Axial Bearing Cover 670 Breather
360 Radial Bearing Cover 564 Radiator Plug
412-1 Axial Cover O-Ring 625 Oil Sight
412
Radial Cover O-Ring
923
Bearing Nut
321 Ball Bearing 564-1 Case Drain Plug
323 Angular Contact Ball Bearing 931 Bearing Washer
420 Impeller O-Ring 500 Adapter Ring
433 Mechanical Seal
