Horizontal End Suction Pump for Chemical Process, ASME B73.1-2001
Installation, Operation, and Maintenance Manual – CPP21

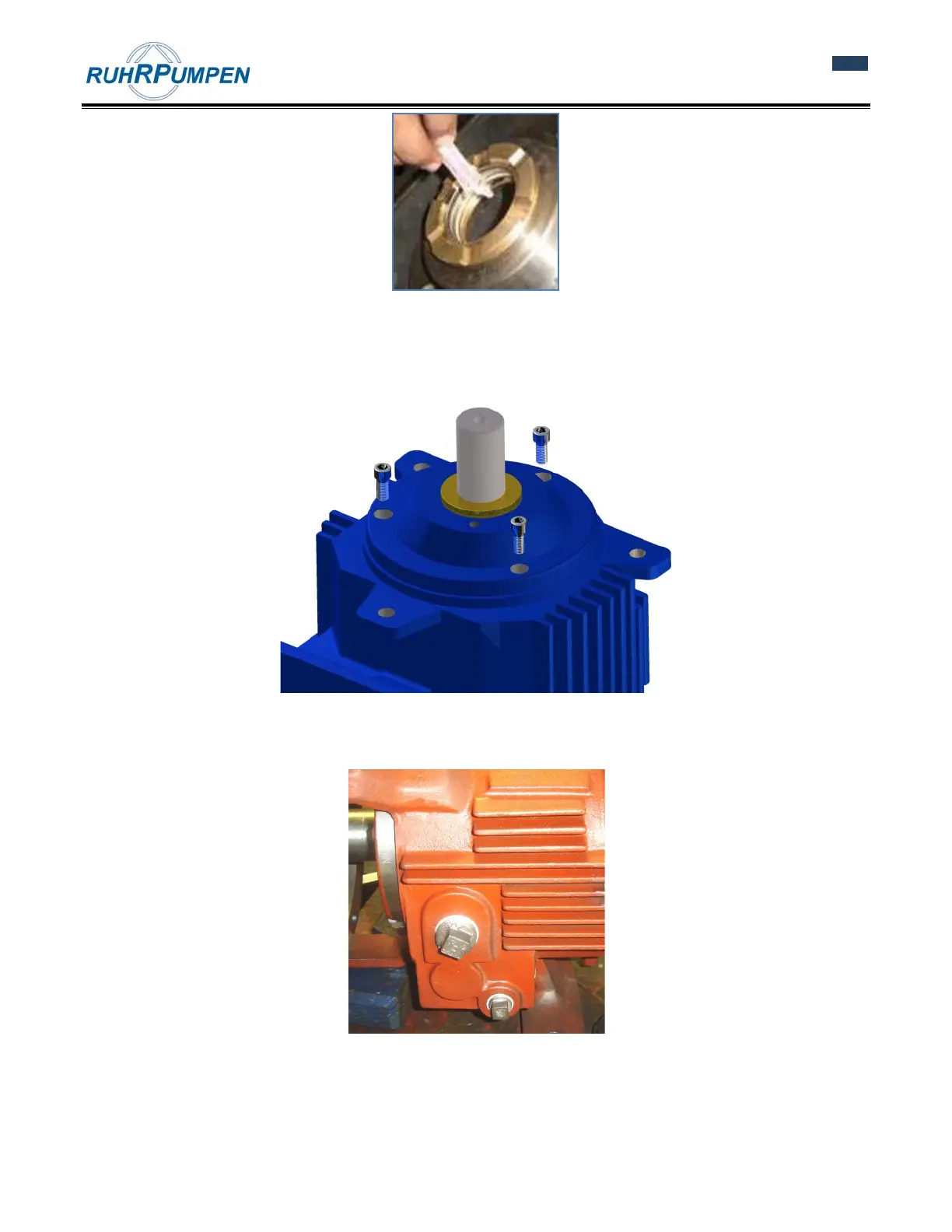

Figure 8.18 Lubricating the internal diameter of the labyrinth seal.
17. Slide cover onto the shaft, ensuring cover is rotated to the correct position (do not use a hammer).
18. Position the bolts manually. Tighten these bolts diagonally (crosswise) to ensure correct reassembly.
Figure 8.19 Thrust cover assembly.
19. Use the proper wrench to install plugs, sight glass, breather and any other plug necessary.
Figure 8.20 Identifying the plugs in the bearing frame.
