Ruijie Reyee RG-ES1 Series

Hardware Installation and Reference Guide Product Overview
19

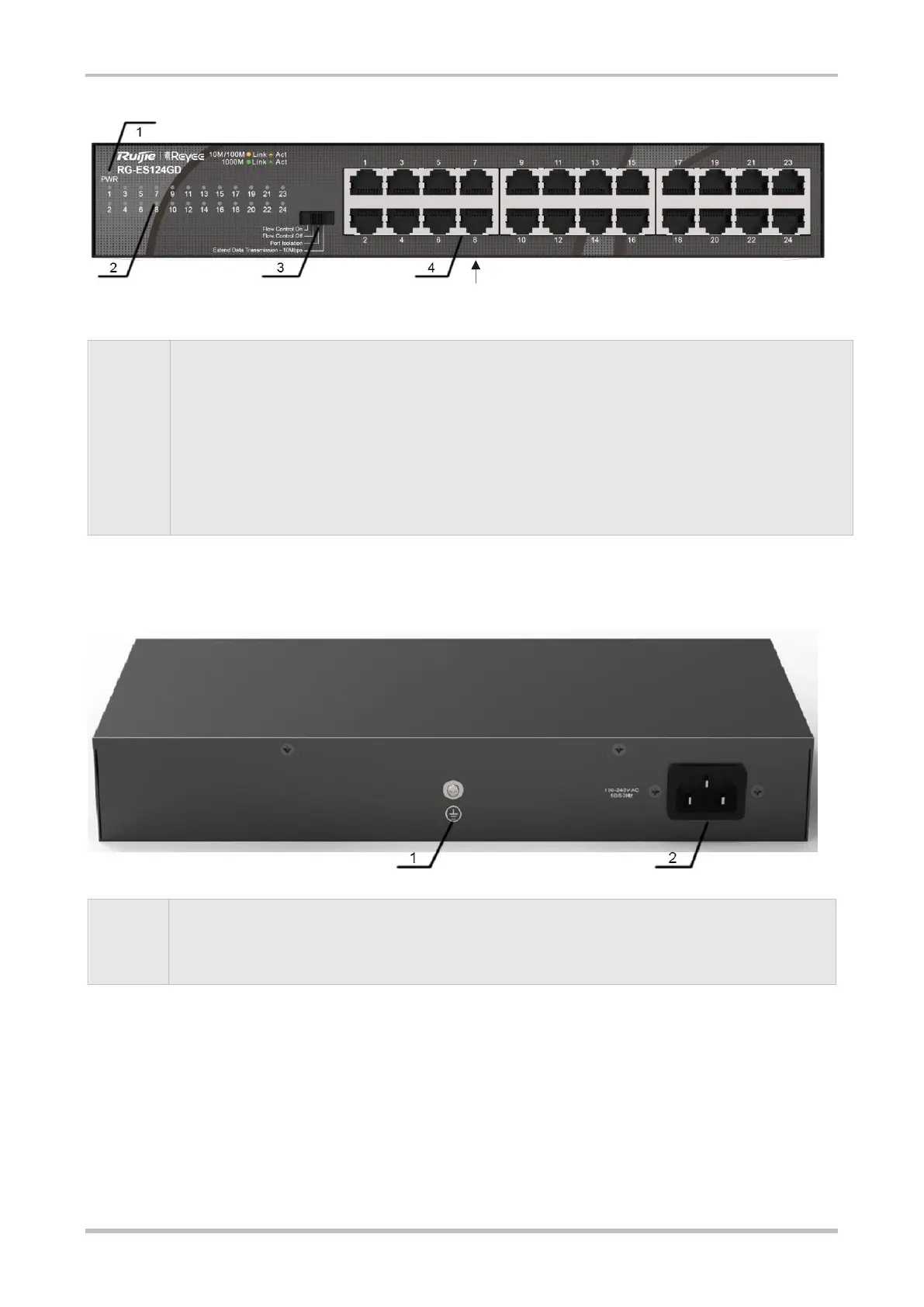

Note:
1. System status LED
2. Port status LED
3. Port mode switchover button
4. 10/100/1000Base-T auto-sensing Ethernet port
5. Nameplate on the bottom of the device
Back Panel
Figure 1-12 Back Panel of the RG-ES124GD
Note:
1. Grounding pole
2. AC power socket
Heat Dissipation
The RG-ES124GD adopts natural heat dissipation, thereby ensuring normal operation. You must maintain a minimum
clearance of 100 mm (3.94 in.) around the RG-ES124GD. It is recommended that you clean the RG-ES124GD once every
three months to avoid dust from blocking vents.
LEDs
5
