Ruijie Reyee Series User Manual

Cookbook Advanced Solution Guide
69
Note
The network segment 192.168.110.0/24 is configured for VLAN 1.

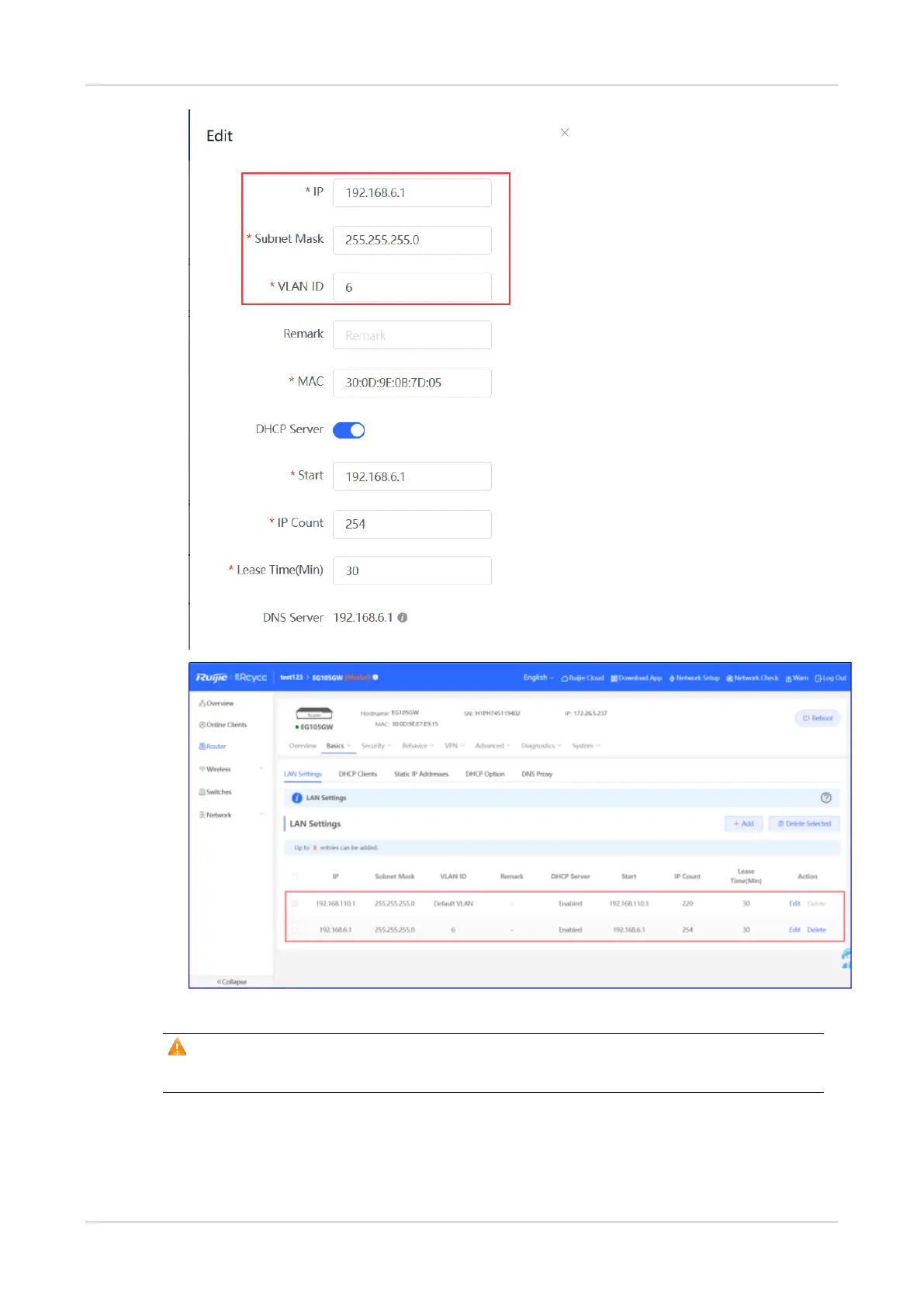

b Choose Switches > Manage > Basic Settings > VLAN Member to create VLAN 6 on the switch, and
click VLAN Settings to configure port 2 and port 9 connected to the AP and EG as trunk ports and allow
packets from VLAN 1 and VLAN 6 to pass through. Then check port settings on the switch.

Ruijie Reyee Series Specifications

General

Model	Reyee Series
Category	Wireless Access Point
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax
Frequency Bands	2.4 GHz, 5 GHz
Antenna Type	Internal or External
Ports	1 x Gigabit Ethernet
Power Supply	PoE or DC power adapter
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Management	Web-based
Security	WPA2
