Ruijie Reyee Series User Manual

Cookbook Advanced Solution Guide
72

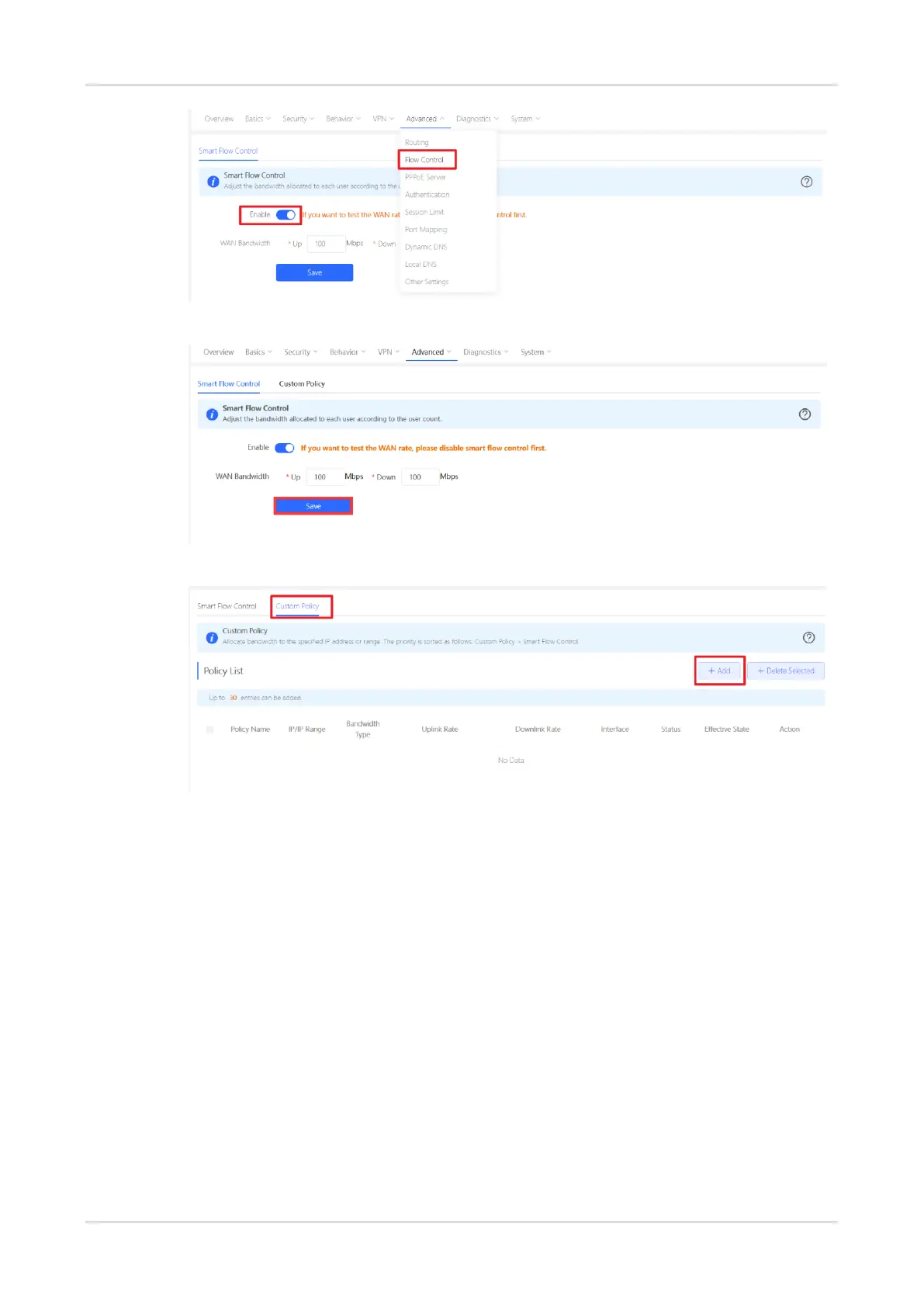

b Set uplink and downlink WAN bandwidth to 100 Mbit/s and click Save to save the configuration.
c After the previous step is complete, Custom Policy will be displayed. Click Add to add a policy.
d Set Policy Name, IP range, Bandwidth Type, Rate, and other parameters.

Ruijie Reyee Series Specifications

General

Model	Reyee Series
Category	Wireless Access Point
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax
Frequency Bands	2.4 GHz, 5 GHz
Antenna Type	Internal or External
Ports	1 x Gigabit Ethernet
Power Supply	PoE or DC power adapter
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Management	Web-based
Security	WPA2
