Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview
Front Panel

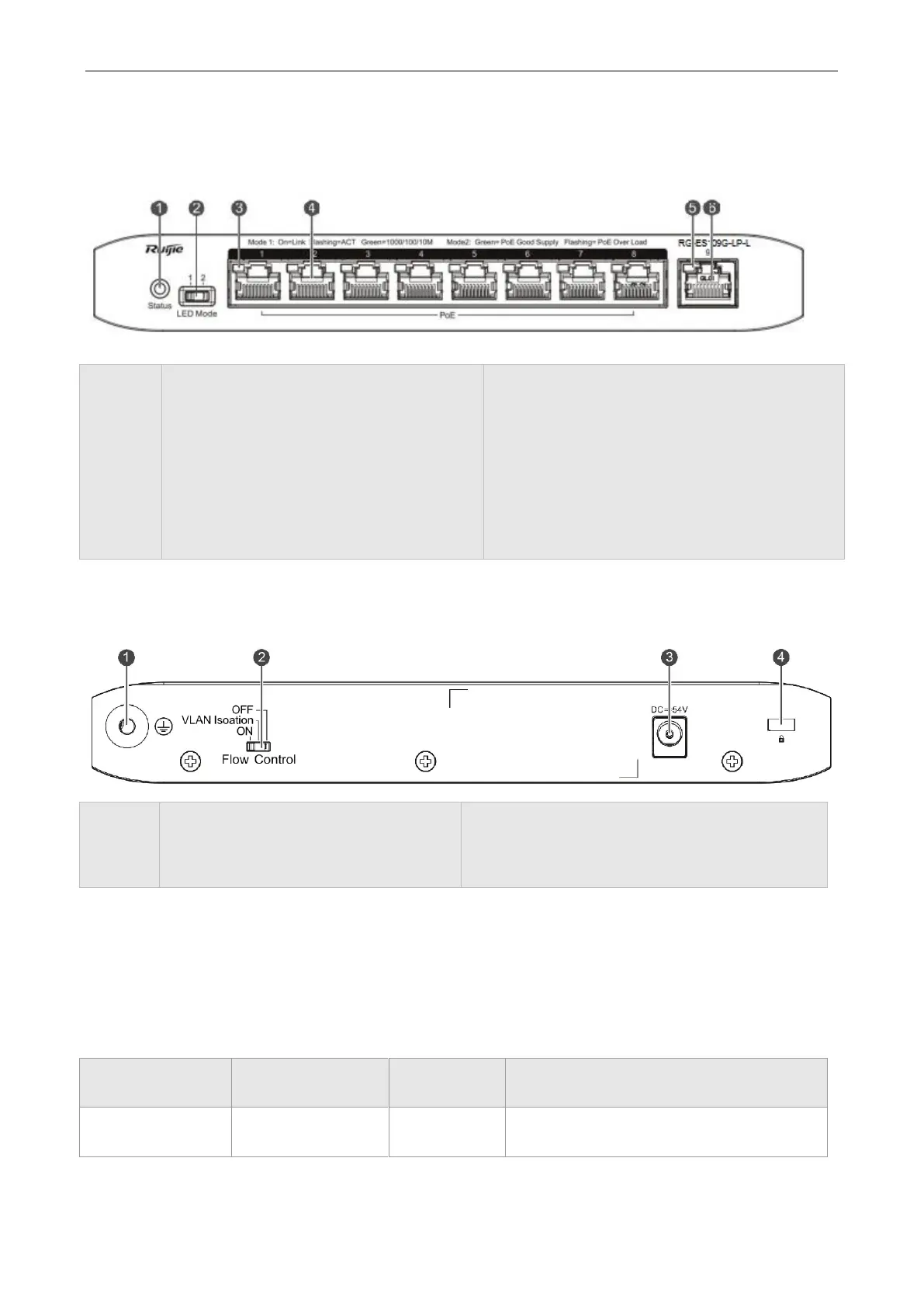

Figure 1-2 Front Panel of RG-ES109G-LP-L
Note:
1. System status LED
2. Port Mode LED Switch-Over Button
3. Copper port status LED
4. 10/100/1000Base-T auto-sensing Ethernet port
5. Copper port status LED
6. 10/100/1000Base-T auto-sensing Ethernet port
Back Panel
Figure 1-3 Back Panel of RG-ES109G-LP-L
Note:
1. Grounding pole
2. Working Mode Switch-Over Button
3. Power port
4. Hole for anti-theft lock
Heat Dissipation
The RG-ES109G-LP-L adopts natural heat dissipation, thereby ensuring normal function of the device in the specified
environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to allow air
circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.
LEDs
LED
Panel Identification
State
Meaning
System status LED
Status
Off
The switch is not receiving power.
