Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview
of the port: when the LED is solid green, it indicates that the link is up; when the LED blinks
green, data is being transmitted or received.
When the button is turned to the right position (Mode 2), the LED indicates the PoE status of
ports; when the LED is solid green, it indicates that the PoE-supported ports are supplying
power; when the LED blinks green, the power of the ports is overloaded.
Working Mode
Switchover Button
When the button is turned to the left position (flow control is enabled), all ports’ communication
is available and the flow control function is enabled on all ports.
When the button is turned to the middle position (VLAN isolation), ports 1-8 cannot
communicate with each other but can communicate only with port 9; the flow control is disabled
on port 9 but enabled on ports 1-8.
When the button is turned to the right position (flow control is disabled), all ports’
communication is available and the flow control function is disabled on all ports.
0℃ to 40℃ (32°F to 104°F)
-40℃ to 70℃ (-40°F to 158°F)
Accessing Optical
Module Information
206.5 mm x 108.5 mm x 28 mm
The RG-ES109G-LP-L switch is a class A product. In a domestic environment, this product may cause radio
interference in which case the user may be required to take adequate measures.

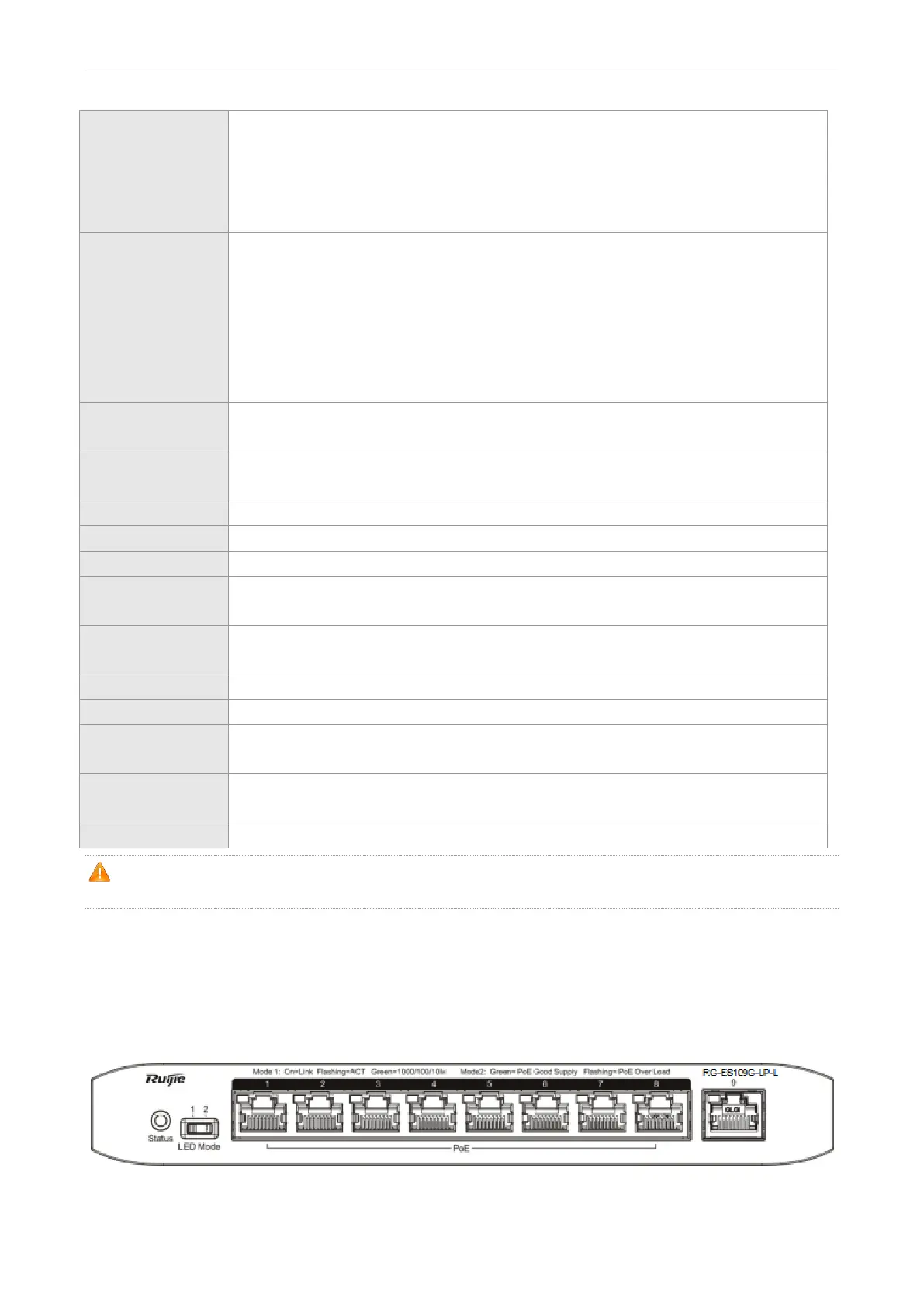

Product Appearance
On the front panel, the RG-ES109G-LP-L Ethernet switch provides nine 10/100/1000Base-T Ethernet ports. On the back
panel, it provides an AC power port.
Figure 1-1 Appearance of RG-ES109G-LP-L
