Ruijie RG-WLAN Series Web-Based Configuration Guide

Configuration Guide Configuring Web Management
Figure 61 Client Bandwidth Policy
Configuration description:
Add client bandwidth policies: Click Create Policy to open the window of Figure 62. Set parameters and click OK
to finish the addition operation.
Edit client bandwidth policies: Click Edit in the table above to open the Edit Client Bandwidth Policy window.
Set parameters and click OK to finish the editing operation.
Delete client bandwidth policies: Click Delete in the table above and click OK in the displayed dialog box to finish
the deletion operation.

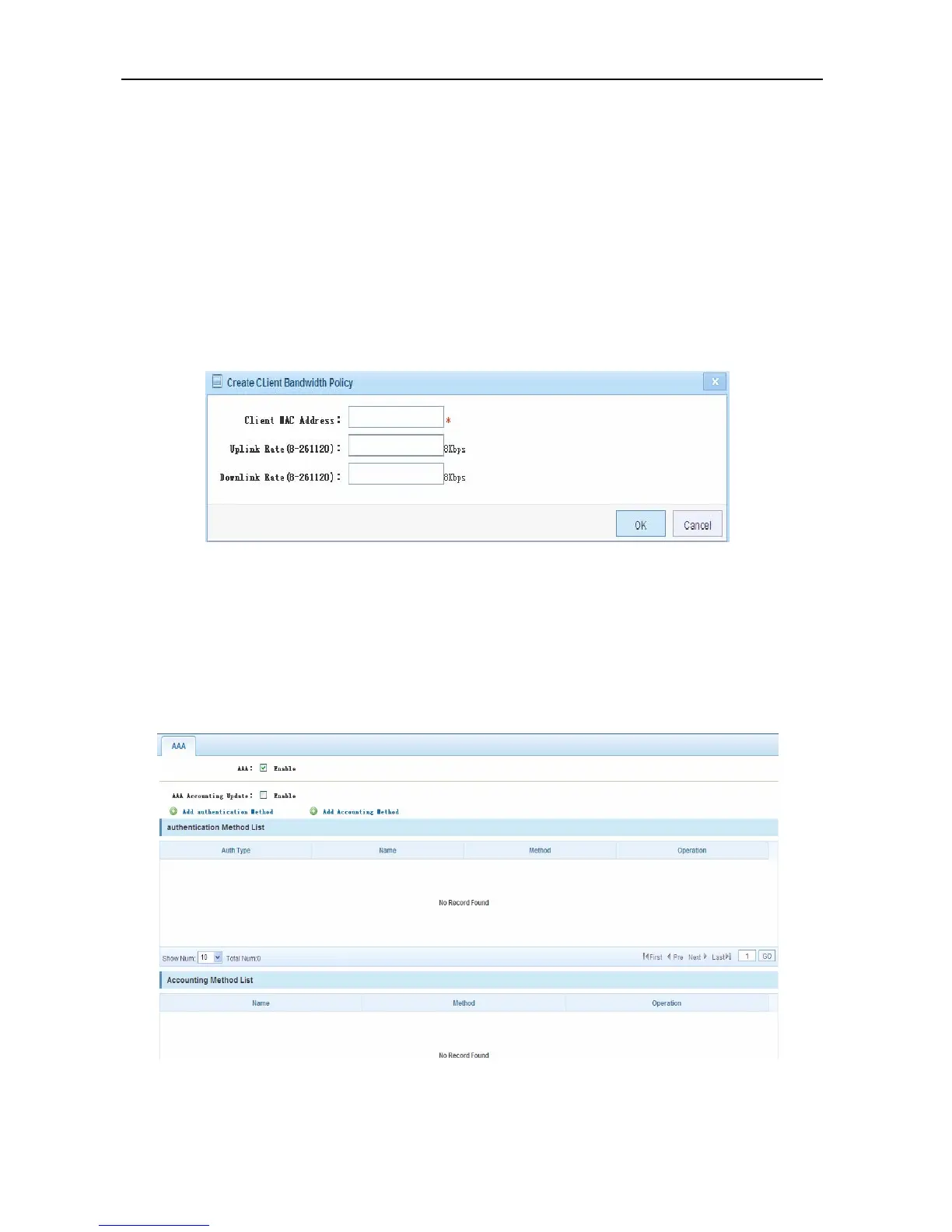

Figure 62 Create Client Bandwidth Policy
Authentication
AAA
Click the AAA menu to enter the following page.
Figure 63 AAA

Ruijie RG-WLAN Series Specifications

General

Brand	Ruijie
Model	RG-WLAN Series
Category	Wireless Access Point
Language	English
