MODEL 53515/53615/63515/63615/73515/73615
25
Instruction:

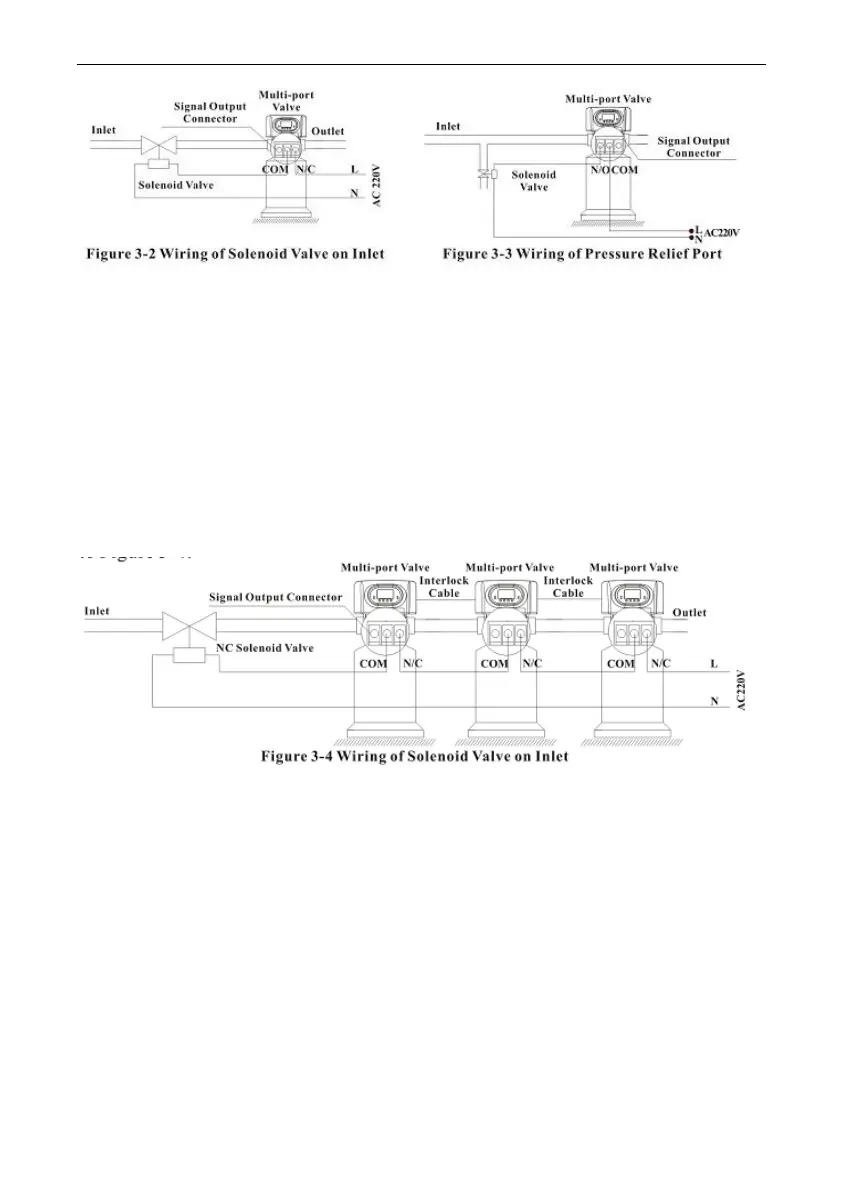

When inlet pressure is high, install a solenoid valve on inlet to
ensure valve switches properly. The solenoid valve will open when valve
is exactly at status of Service, Backwash, Brine & Slow Rinse, Brine
Refill and Fast Rinse. When valve is switching, solenoid valve is closed,
no water flows into valve to ensure valve switching properly. It could
prevent the problem of mixing water and water hammer.
Use interlock cable to realize valves in parallel and series in same
system which is suited for RO pretreatment system or second grade Na
+
system. The wiring refers to Figure 3-4:
2).Liquid Level Controller Controls Inlet Pump (Two-phase motor) (Set
b-01)
Instruction: For the system using ground water or middle-tank supplying
water, users can turn on and turn off the pump by operating the switch of
liquid level controller and valve. The wiring refers to Figure 3-5:
