9
HEAVY DUTY
SOD CUTTER
SET-UP INSTRUCTIONS
GENERAL NOTE: Front, rear, right and left
references below are as seen from the operator's
position. NEVER disable the operator presence
control by altering or modifying it in any way.
The HD Sodcutter is very heavy. To prevent serious
injury, use an adequate lifting device (i.e., hoist,
forklift,
etc.) to remove from shipping pallet.
1. Cut the banding securing the aerator to the
pallet.
2. Remove and discard cable ties securing handlebar
assembly to unit.
3. Using an adequate lifting device, remove HD sod
cutter from shipping pallet.
4. Remove hardware bag and empty content onto a
surface where they with not be misplaced or lost.

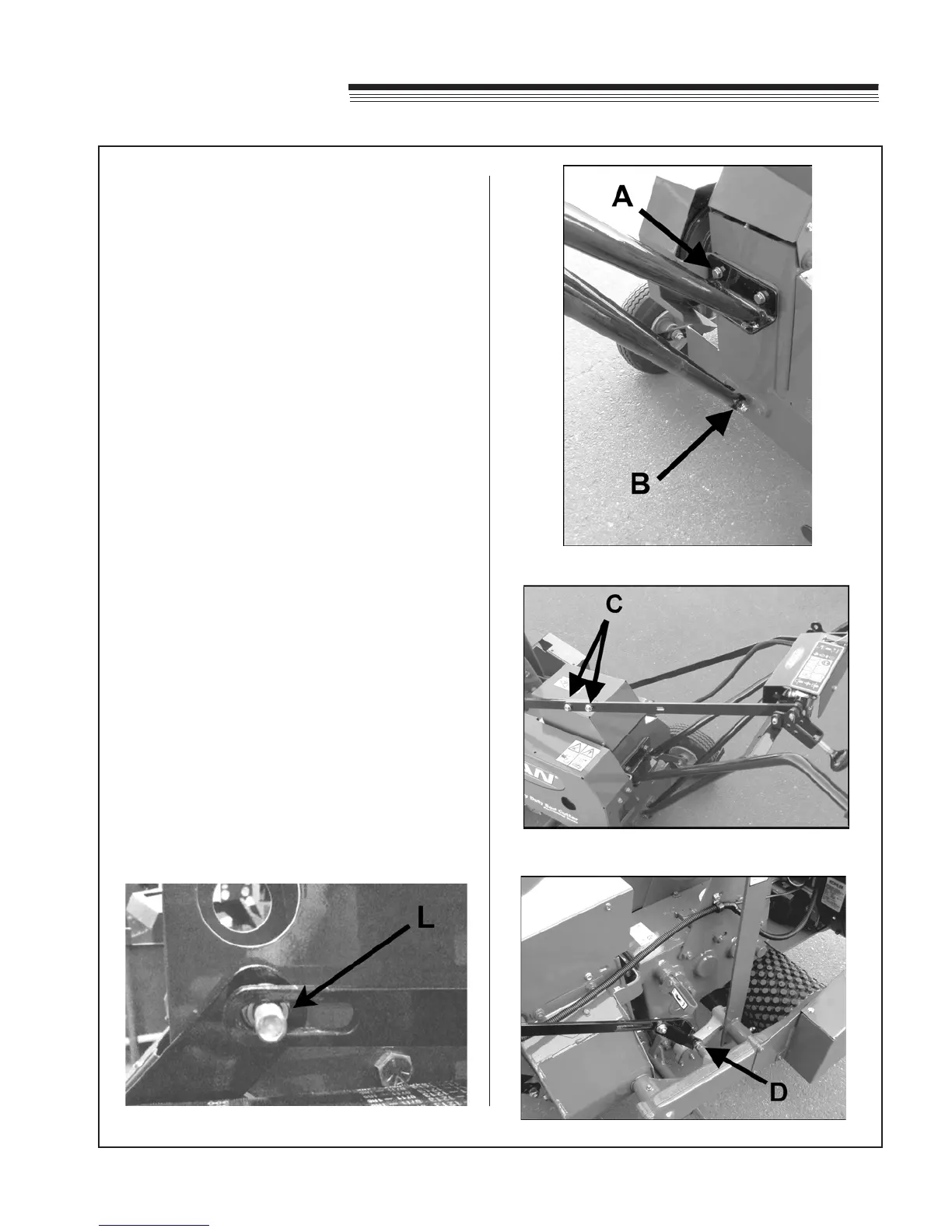

5. Remove the two screws and lockwashers from
upper rear of gear case A. Use those screws and
lockwashers to install upper portion of handle.
Secure the lower end of the handle B with one 1
1/2-13 x 2" screw and one 1/2-13 insert locknut.
(Figure 1)
6. Rotate the master clutch control to the rear
"Disengaged" position. Connect the clutch control
links together so that the lower link slot bolt L is
1/4" from the left side of the slot. (Figure 4) Tighten
links together and secure using two 5/16-18x1"
serrated ange screws and two serrated ange
nuts C. (Figure 2)
7. Attach metering wheel control link. Loosen the jam
nut and turn the connecting screw into the casting
D. Tighten the jam nut to secure. The adjuster links
should move freely after installation. (Figure 3)
FIGURE 3
FIGURE 1
FIGURE 2
SET-UP
FIGURE 4
