FEATURES

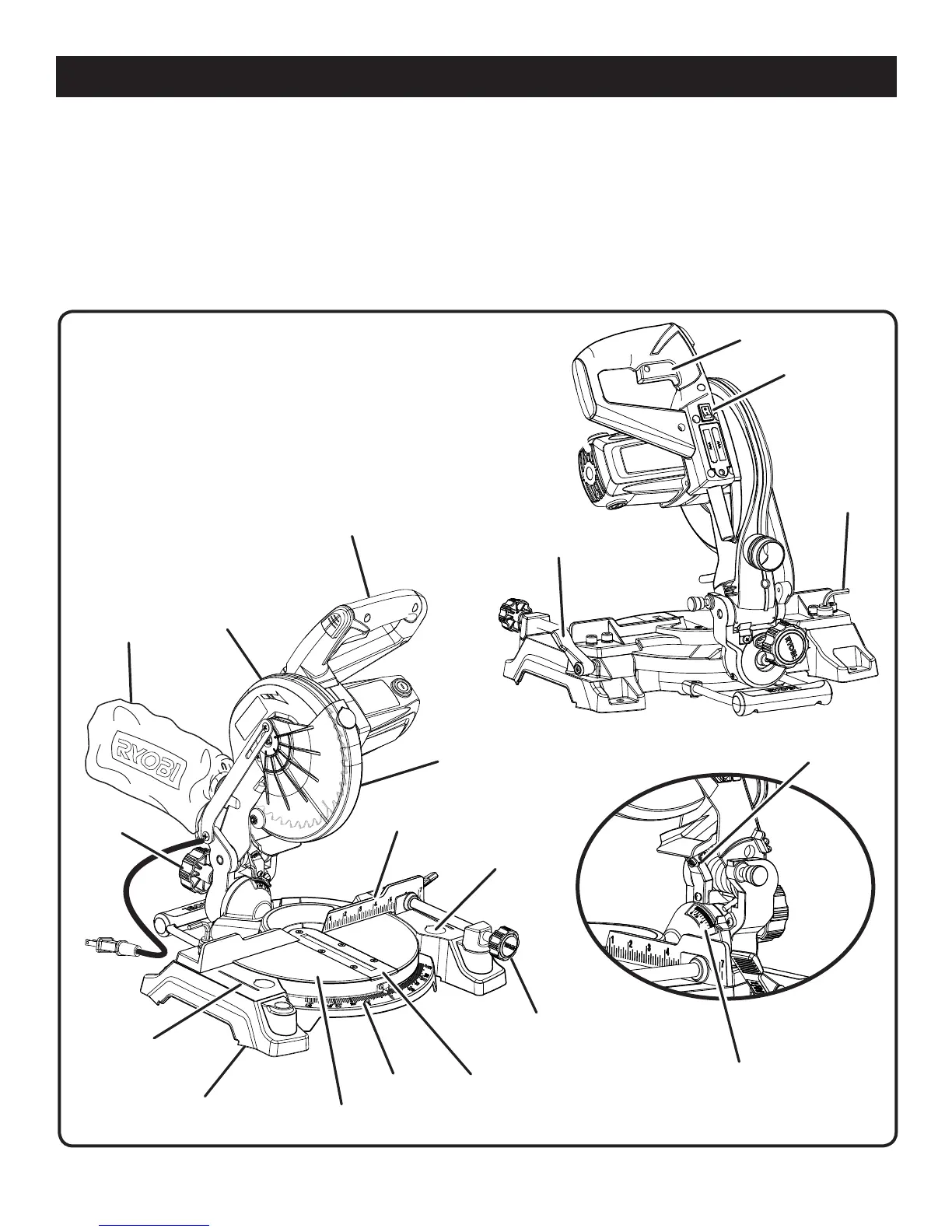

Fig. 1
PRODUCT SPECIFICATIONS
Arbor ......................................................................... 5/8 in.
Blade Diameter ...................................................... 7-1/4 in.
No Load Speed ....................................5,800 r/min. (RPM)
Input .................................. 120 V, 60 Hz, AC only, 9 Amps
Cutting Capacity with Miter at 0°/Bevel 0°:
Maximum lumber sizes ..................... 1-1/2 in. x 4-1/4 in.
Cutting Capacity with Miter at 45°/Bevel 0°:
Maximum lumber sizes ............................1-1/2 in. x 3 in.
Cutting Capacity with Miter at 0°/Bevel 45°:
Maximum lumber sizes ..................... 1-1/2 in. x 3-1/2 in.
Cutting Capacity with Miter at 45°/Bevel 45°:
Maximum lumber sizes ............................... 3/4 in. x 3 in.
LOWER
BLADE
GUARD
UPPER
BLADE
GUARD
“D” HANDLE
BASE
MITER
LOCK LEVER
BEVEL
LOCK
KNOB
SWITCH TRIGGER
“NO HANDS ZONE”
LABEL
“NO HANDS ZONE”
BOUNDARY LINE
BLADE
WRENCH
MITER
TABLE
DUST BAG
WORK
CLAMP
BEVEL
SCALE
MITER
SCALE
MITER
FENCE
LASER
GUIDE
LASER GUIDE
SWITCH
THROAT
PLATE
