19 - English

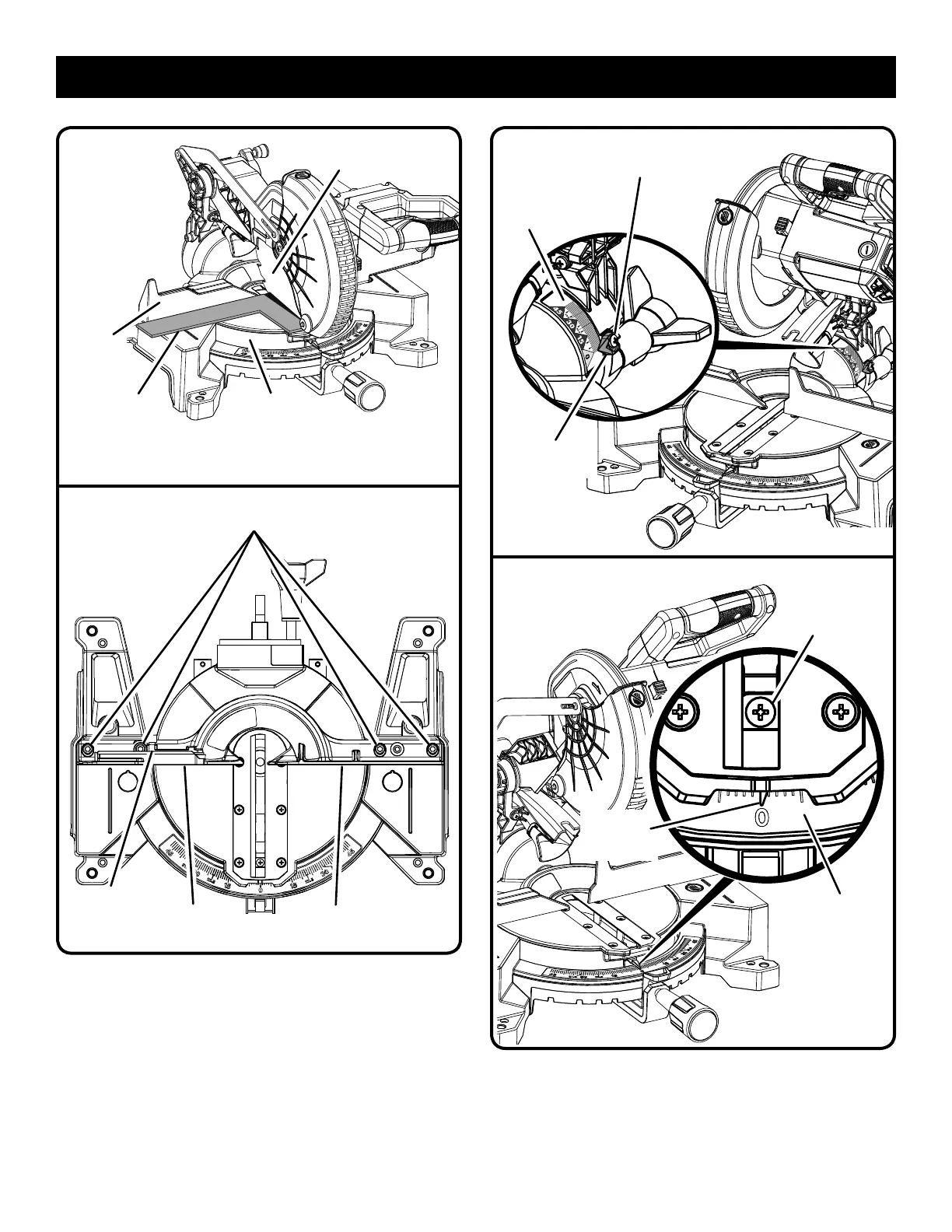

VIEW OF BLADE NOT SQUARE WITH FENCE,
ADJUSTMENTS ARE REQUIRED
Fig. 19
SOCKET HEAD
SCREW(S)
MITER
FENCE
Fig. 21
INDICATOR
SCREW
SCALE
INDICATOR
MITER
SCALE
ASSEMBLY
Fig. 18
MITER
FENCE
MITER
TABLE
BLADE
SQUARE
SCALE
INDICATOR
INDICATOR
SCREW
BEVEL
SCALE
Fig. 20
Using the blade wrench, loosen the socket head screws
that secure the miter fence to the miter table.
Rotate the miter fence left or right until the saw blade is
parallel with the square.
Retighten the screws securely and recheck the blade-to-
fence alignment.
Your saw has several scale indicators. After squaring adjust-
ments have been made, it may be necessary to loosen the
indicator screws and reset them to zero. See figures 20 - 21.
SLIDING
PARTIAL FENCE
FENCE SCREW
