Ryobi TS1144 - Features

9 - English
Fig. 1
FEATURES
PRODUCT SPECIFICATIONS
Arbor .......................................................................... 5/8 in.
Blade Diameter ....................................................... 7-1/4 in.
No Load Speed (RPM) ...................................... 5,100 /min.
Input ...................................120 V, AC only, 60 Hz, 9 Amps
Cutting Capacity with Miter at 0°/Bevel 0°:
Maximum lumber sizes ..................... 1-1/2 in. x 4-1/4 in.
Cutting Capacity with Miter at 45°/Bevel 0°:
Maximum lumber sizes ............................1-1/2 in. x 3 in.
Cutting Capacity with Miter at 0°/Bevel 45°:
Maximum lumber sizes ............................ 1 in. x 4-1/4 in.
and 1-1/2 in. x 3-1/2 in.
Cutting Capacity with Miter at 45°/Bevel 45°:
Maximum lumber sizes .................................. 1 in. x 3 in.

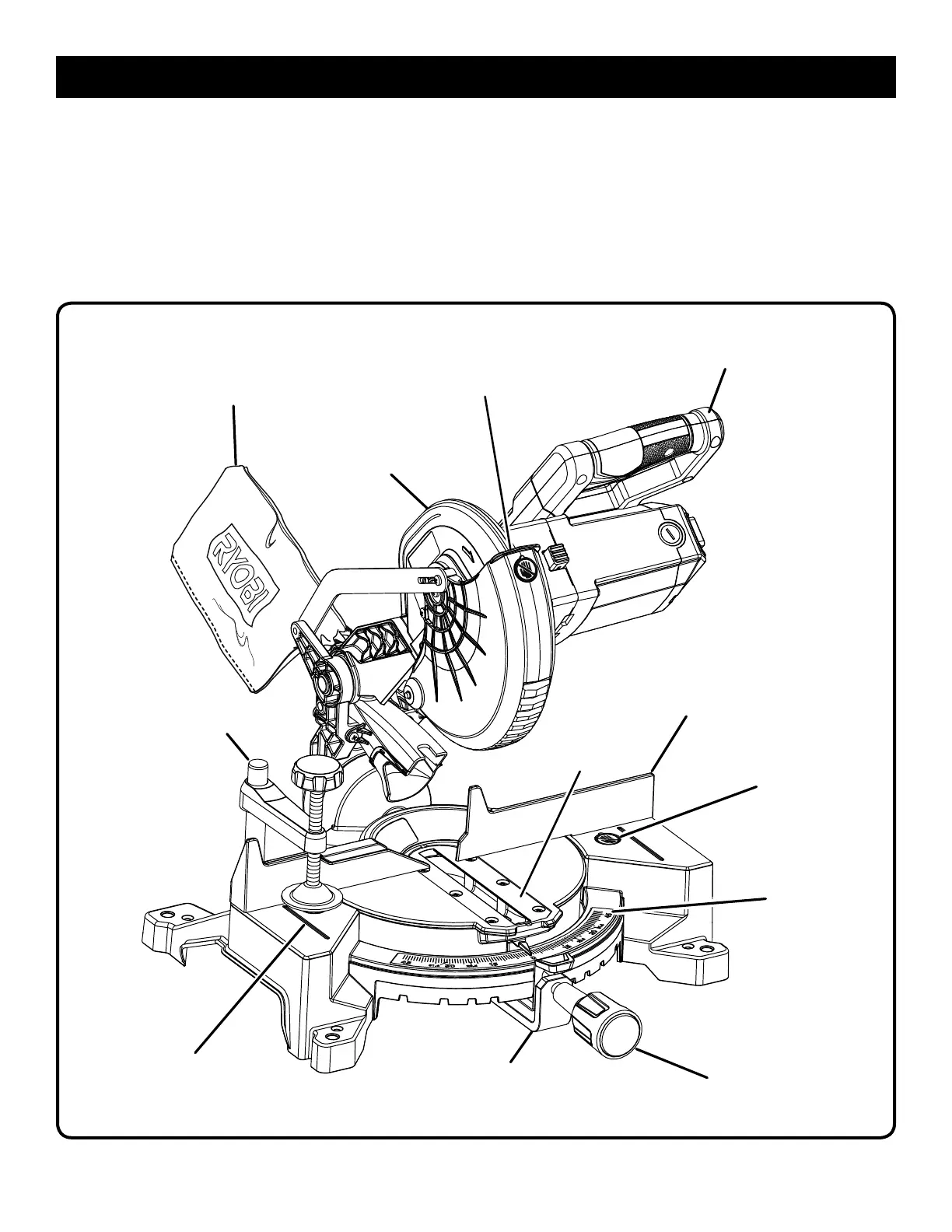

LOWER
BLADE
GUARD
UPPER
BLADE
GUARD
“D” HANDLE
CONTROL ARM
MITER
LOCK KNOB
“NO HANDS ZONE”
LABEL
DUST BAG
WORK
CLAMP
MITER
FENCE
MITER
SCALE
“NO HANDS ZONE”
BOUNDARY LINE
THROAT
PLATE
