FEATURES
MITER LOCK HANDLE
See Figure 2.
The miter lock handle securely locks the saw at desired
miter angles.
POSITIVE STOPS ON MITER TABLE
Positive stops have been provided at 0°, 15°, 22-1/2°, 31.6°,
and 45°. The stops have been provided on both the left and
right side of the miter table.
SELF-RETRACTING LOWER BLADE GUARD
The lower blade guard is made of shock-resistant, see-
through plastic that provides protection from each side of
the blade. It retracts over the upper blade guard as the saw
is lowered into the workpiece.
SPINDLE LOCK BUTTON
See Figure 3.
The spindle lock button locks the spindle stopping the blade
from rotating. Depress and hold the lock button while install-
ing, changing, or removing blade.
SWITCH TRIGGER
See Figure 4.
To prevent unauthorized use of the compound miter saw,
disconnect it from the power supply and lock the switch in
the off position. To lock the switch, install a padlock (not
included) through the hole in the switch trigger. A lock with
a long shackle up to 5/16 in. diameter may be used. When
the lock is installed and locked, the switch is inoperable.
Store the padlock key in another location.

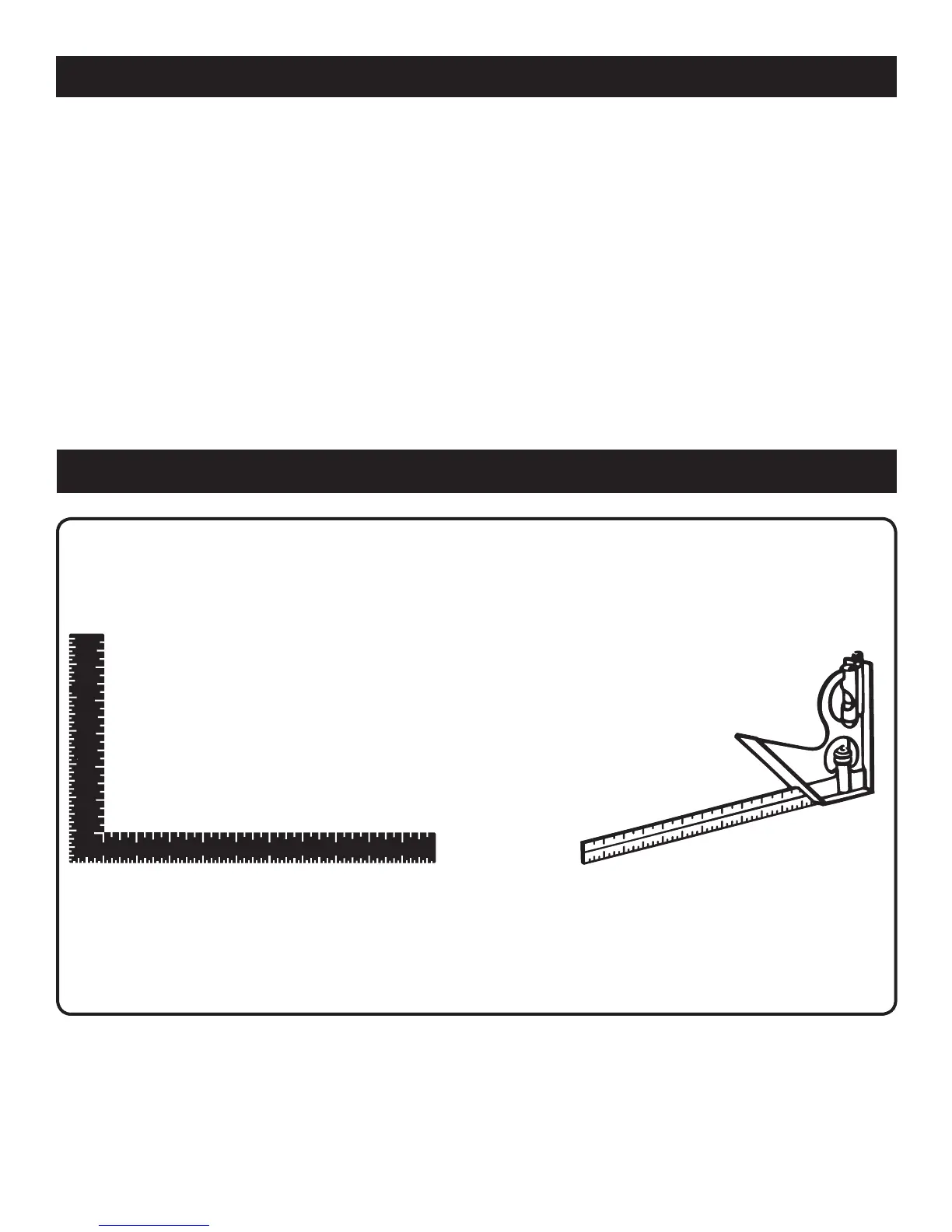

TOOLS NEEDED
The following tools (not included) are needed for making adjustments or installing the blade:
COMBINATION SQUARE
FRAMING SQUARE
Fig. 5
