FEATURES
PRODUCT SPECIFICATIONS
Blade Arbor ............................................................. 5/8 in.
Blade Diameter ..........................................................10 in.
No Load Speed ................................... 5,500 r/min. (RPM)
Input ........................................... 120 V~, 60 Hz, 14 Amps
Net Weight ...............................................................31 lbs.
Cutting Capacity with Miter at 0°/Bevel 0°:
Maximum nominal lumber sizes: ................. 2 x 6, 4 x 4
Cutting Capacity with Miter at 45°/Bevel 0°:
Maximum nominal lumber sizes: ...........................2 x 4
Cutting Capacity with Miter at 0°/Bevel 45°:
Maximum nominal lumber sizes: ...........................2 x 6
Cutting Capacity with Miter at 45°/Bevel 45°:
Maximum nominal lumber sizes: ...........................2 x 4

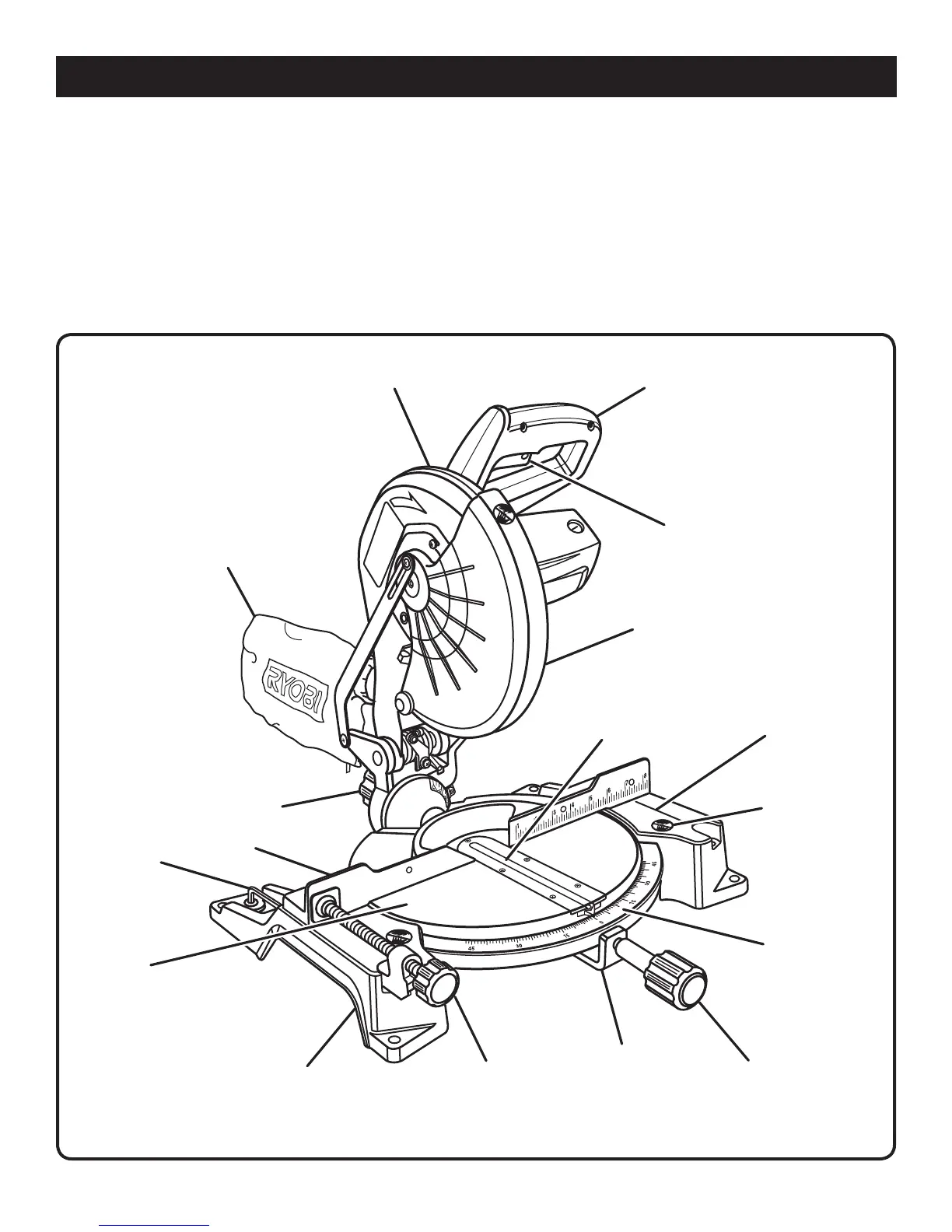

Fig. 1
LOWER
BLADE GUARD
“D” HANDLE
MITER
LOCK HANDLE
SWITCH
TRIGGER
“NO HANDS ZONE”
LABEL
“NO HANDS ZONE”
BOUNDARY LINE
MITER
SCALE
UPPER
BLADE GUARD
MITER
FENCE
BEVEL
LOCK KNOB
THROAT
PLATE
CONTROL
ARM
BASE
MITER
TABLE
BLADE
WRENCH
DUST
BAG
WORK
CLAMP
