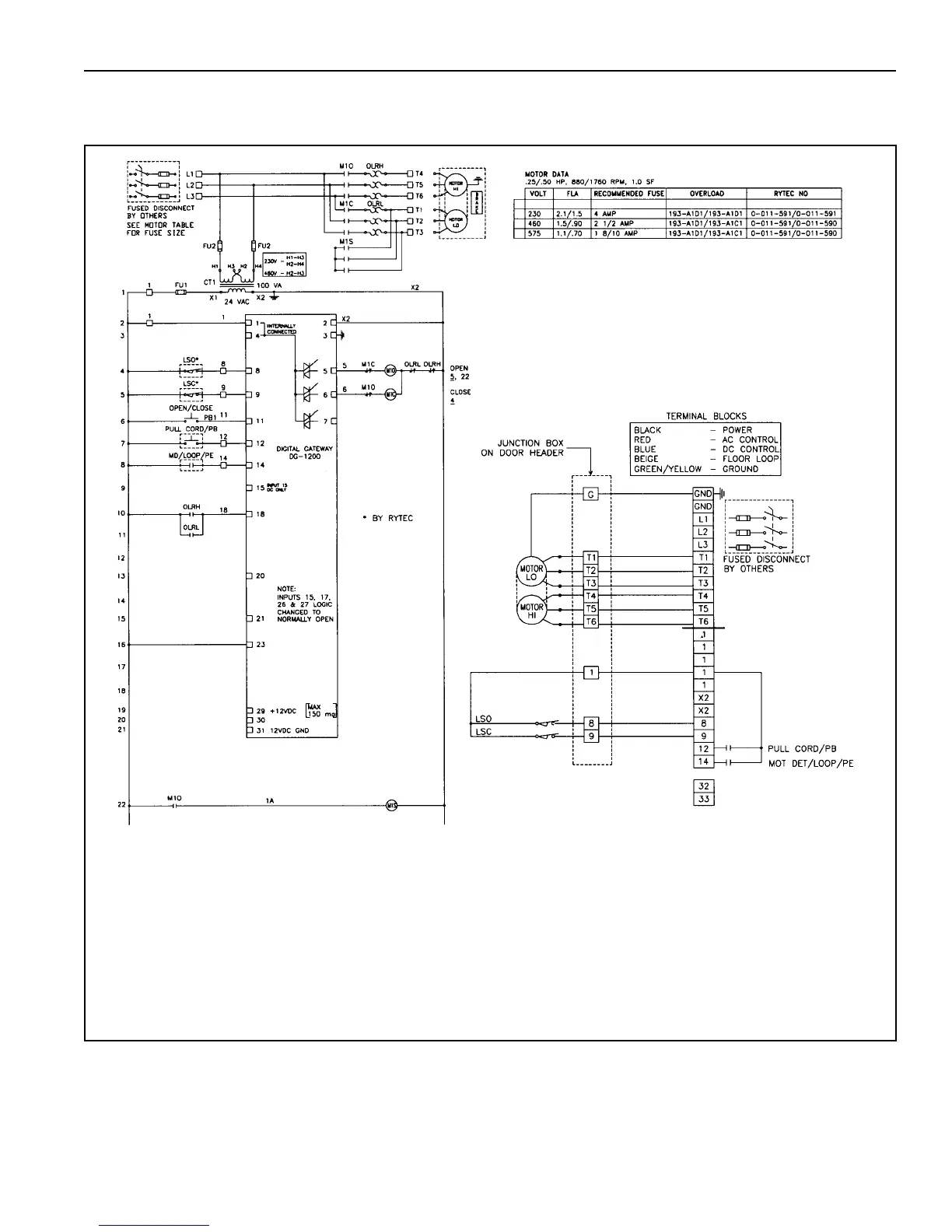

FAST-FOLD—TWO-SPEED DIGITAL GATEWAY (E4100)
A1500143
NOTE: This schematic is for general infor-
mation only. Due to varying require-
ments for individual customers, a
schematic is prepared for each door
installation. This schematic is
shipped inside of the control box and
must be used for that specific instal-
lation.
WIRING SCHEMATICS—FAST-FOLD—TWO-SPEED DIGITAL GATEWAY (E4100)
