INTRODUCTION
INTRODUCTION
Your door control box is equipped with Rytec's Digital
Gateway
®
which is a state of the art, solid state
microprocessor-based high-speed door control.
It provides connections for multiple activators, close
delay timers, backup timers, and status indicators.

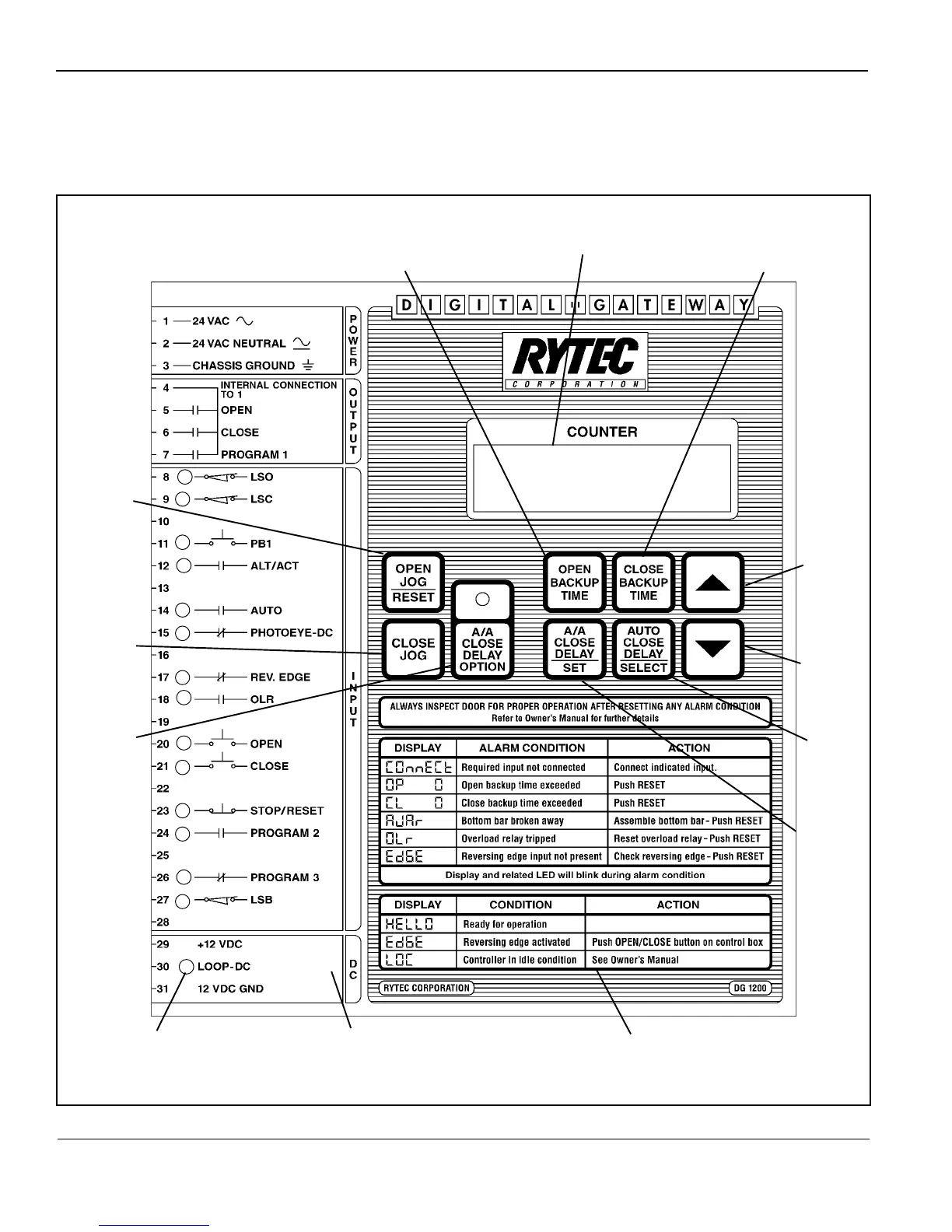

See Figure 1 for an overview of the Digital Gateway
controls.
A0500028
DOWN
Arrow
Auto
Close
Delay
Timer
A/A Close
Delay
Timer
UP Arrow
Display Message Explanation
CLOSE Backup Timer
OPEN Backup Timer
Digital Display:
Shows Cycles, Timer Settings,
Alarm Conditions and Door Functions
Input Connection Information
Status LEDs:
Light is ON When Remote
Contact Has Been Activated
HELLO
OPEN
Jog Button
CLOSE
Jog Button
Auto Close
Switch
Figure 1
