PARTS LISTSINGLE SLIDE DOOR PANEL ASSEMBLY
34

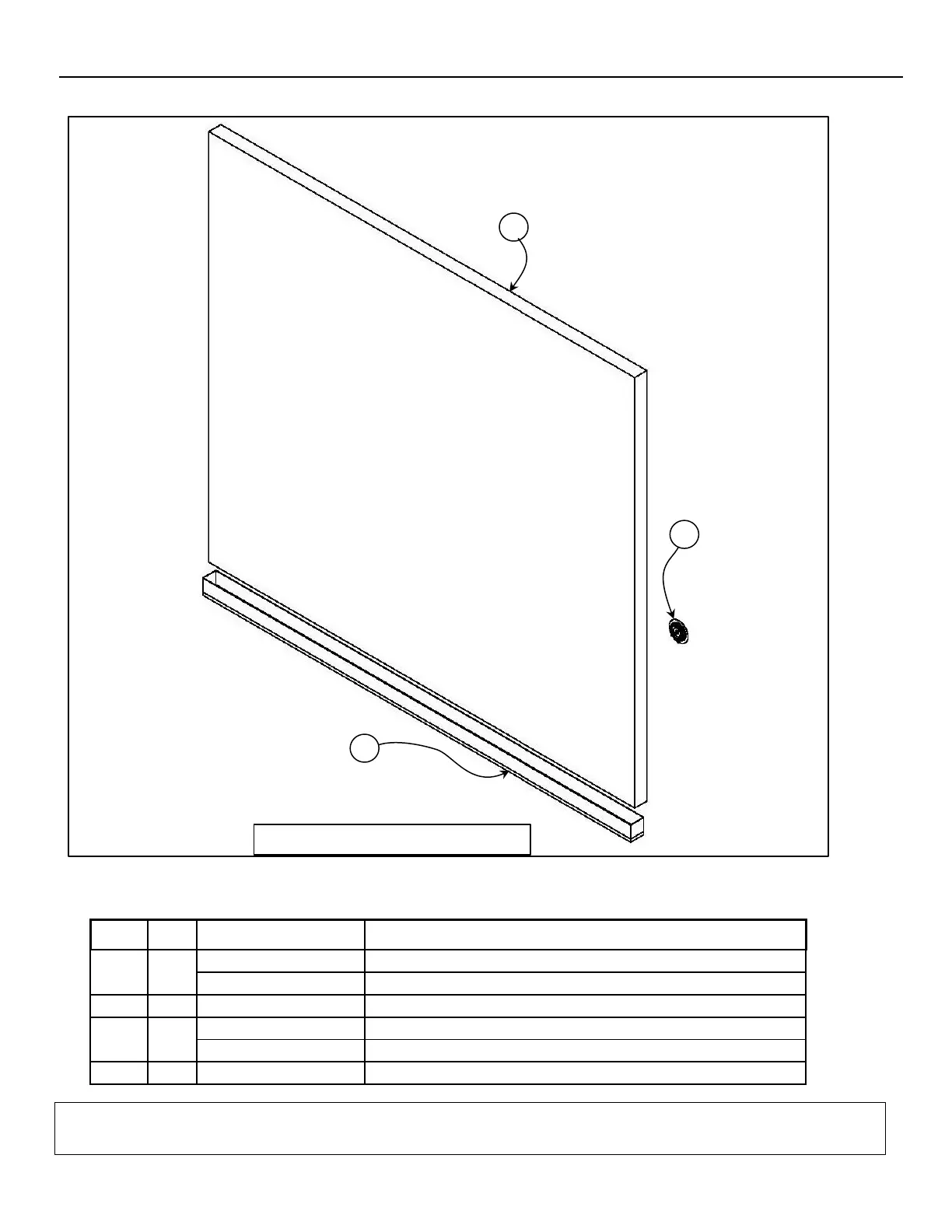

SINGLE SLIDE DOOR PANEL ASSEMBLY
Figure 53
SINGLE SLIDE DOOR PANEL ASSEMBLY BOM
ITEM
QTY.
PART #
DESCRIPTION
-
1
P1091112-1
Panel Assy, 1-Way, LH (Opens to Left) Turbo-Slide
P1091112-2
Panel Assy, 1-Way, RH (Opens to Right) Turbo-Slide
1
1
P1091113-0
Door Panel, 1-Way, Turbo-Slide
2
1
P1091196-0A
Panel Bottom Seal, 1-Way, R17, Turbo-Slide
P1091196-0B
Panel Bottom Seal, 1-Way, R25, Turbo-Slide
3
A/R
P1091118-0
Manual Release Handle, Turbo-Slide (Standard qty = 1)
3
1
2
Single Slide Door Panel Assembly
ALWAYS INCLUDE SERIAL NUMBER OF DOOR WHEN PLACING ORDER
Due to product enhancement, the actual parts on your door may be different from those shown in this manual.
