PARTS LIST—TURBO SLIDE DOOR BULB SEAL ASSEMBLYS
42
TURBO SLIDE DOOR BULB SEAL ASSEMBLYS

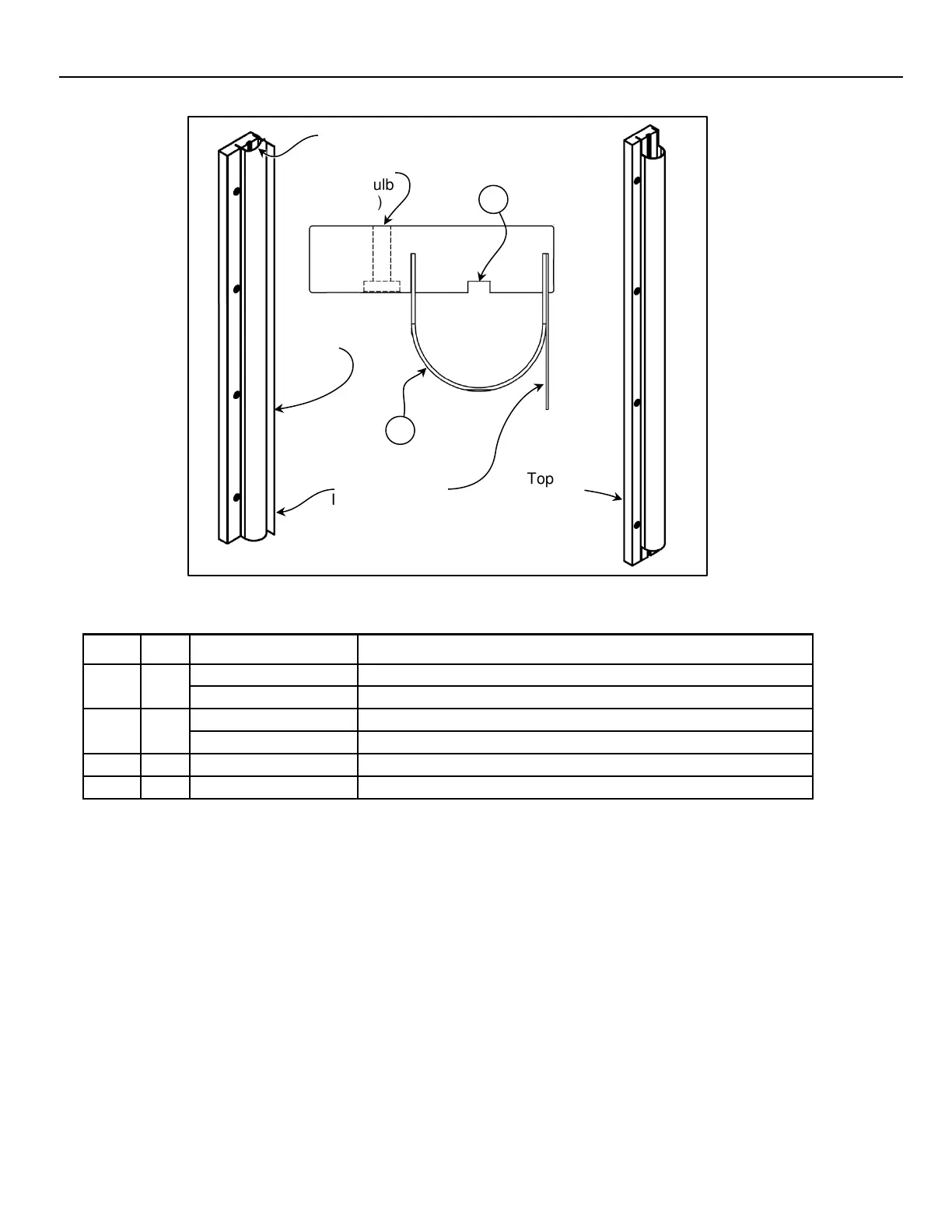

Figure 57
TURBO SLIDE DOOR BULB SEAL ASSEMBLYS BOM
ITEM
QTY.
PART #
DESCRIPTION
-
A/R
P1091198-XX
Bulb Seal Assembly, Side (LH Shown, RH is Opposite Hand)
P1091199-0
Bulb Seal Assembly, Top
1
A/R
P1091239-OA
Heat Tape, Drive Side (not shown)
P1091239-OB
Heat Tape, Non-Drive Side (not shown)
2
1
REF
Bulb Seal
1
Side Bulb
Assy
2
Top Bulb
Assy
Bolt Hole for
Mounting Bulb
Seal (REF)
Flap Seal on
Inside Edge(Side
Bulb Seals Only)
Bulb Cut for mating to
Top Bulb Seal (REF)
Heat Tape
Installed in Notch
(Not Shown)
