PARTS LIST—TURBO SLIDE CHAIN RELEASE ASSEMBLY
36
TURBO SLIDE CHAIN RELEASE ASSEMBLY

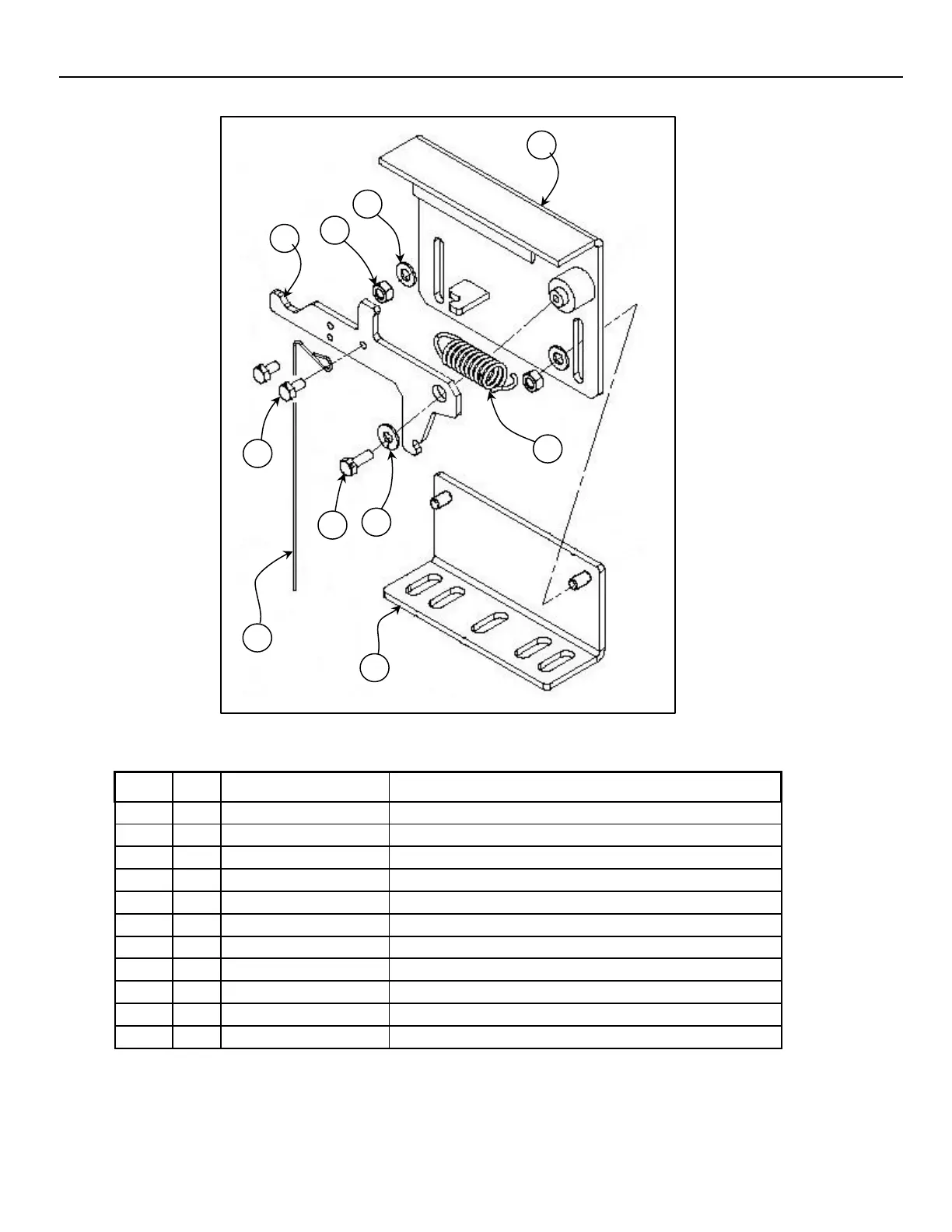

Figure 55
TURBO SLIDE CHAIN RELEASE ASSEMBLY BOM
ITEM
QTY.
PART #
DESCRIPTION
-
1
P1091130-0
Chain Release Assy, Turbo-Slide
1
1
P1091131-0
Chain Door Bracket Weldment, Turbo-Slide
2
1
P1091132-0
Pivot Arm, Turbo-Slide
3
1
P1091133-0
Door Bracket, Turbo-Slide
4
1
P1091134-0
Extension Spring, Turbo-Slide
5
1
P1091135-0
Cable, Chain Release, Turbo-Slide
6
2
Consult Factory
1/4-20 x 1/2" Long Hex Head Cap Screw
7
1
Consult Factory
1/4-20 x 3/4" Long Hex Head Cap Screw
8
1
Consult Factory
ؼ Flat Washer
9
2
Consult Factory
5/16-18 Hex Nut
10
2
Consult Factory
Ø5/16 Flat Washer
2
1
3
8
5
4
6
7
9
10
