PARTS LIST—TURBO SLIDE CHAIN RETURN IDLER ASSEMBLY
37
TURBO SLIDE CHAIN RETURN IDLER ASSEMBLY

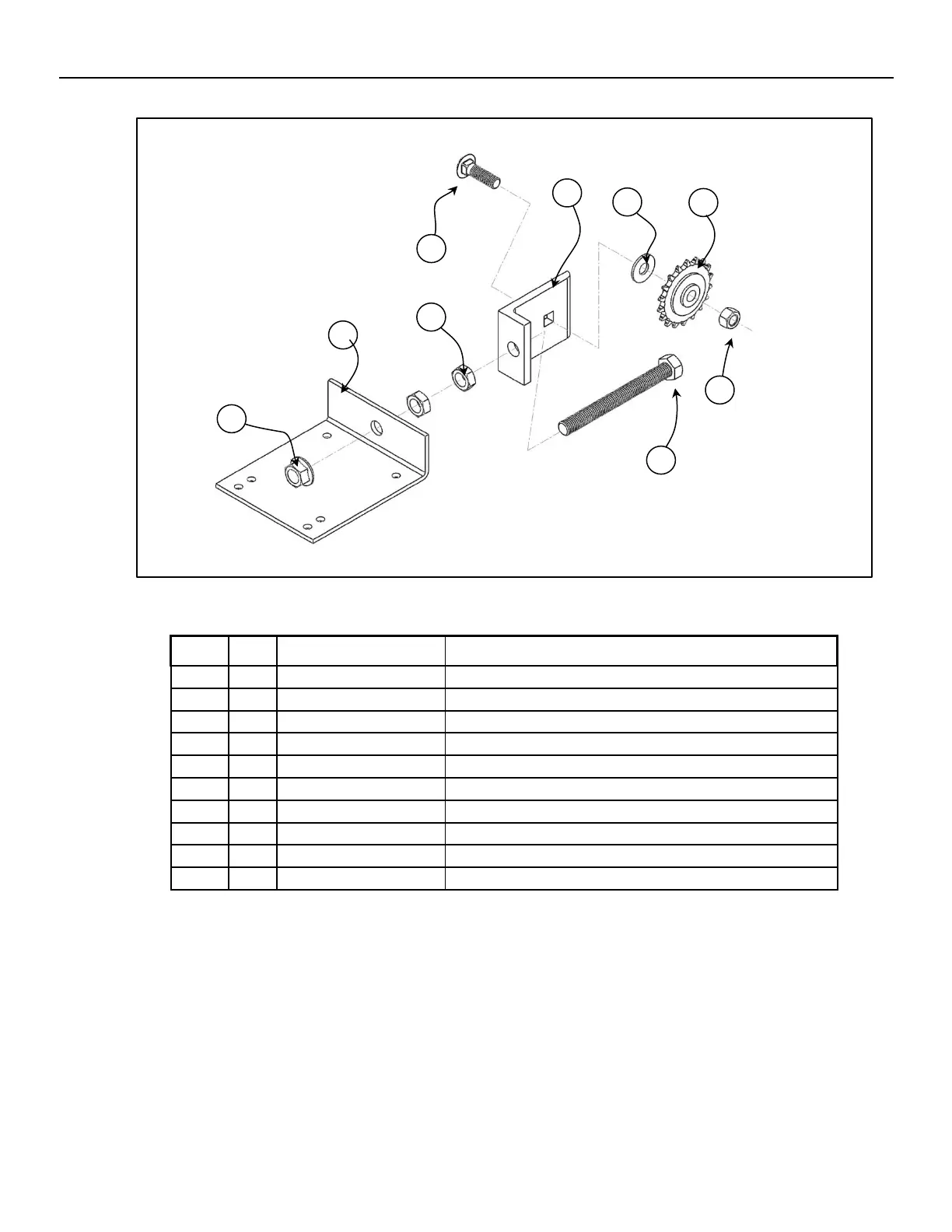

Figure 56
TURBO SLIDE CHAIN RETURN IDLER ASSEMBLY BOM
ITEM
QTY.
PART #
DESCRIPTION
-
1
P1091140-0
Return Idler Assembly, Non-Drive, Turbo-Slide
1
1
P1091141-0
Spring Hanger, Turbo-Slide
2
1
P1091142-0
Idler Sprocket, Turbo-Slide
3
1
P1091143-0
Tensioner L Bracket, Turbo-Slide
4
1
Consult Factory
½-13 x 1.75 Long Round Head Square Neck Bolt
5
1
Consult Factory
½-13 Hex Nut
6
1
Consult Factory
Ø1/2” Flat Washer
7
1
Consult Factory
5/8-11 x 6.00 Long Hex Head Bolt
8
1
P1091212-0
HFLN, 5/8-11
9
2
P1091213-0
Nut, 5/8-11, Hex Jamb
2
3
1
4
7
8
5
6
9
