PARTS LISTTURBO SLIDE MOTOR ASSEMBLY
35

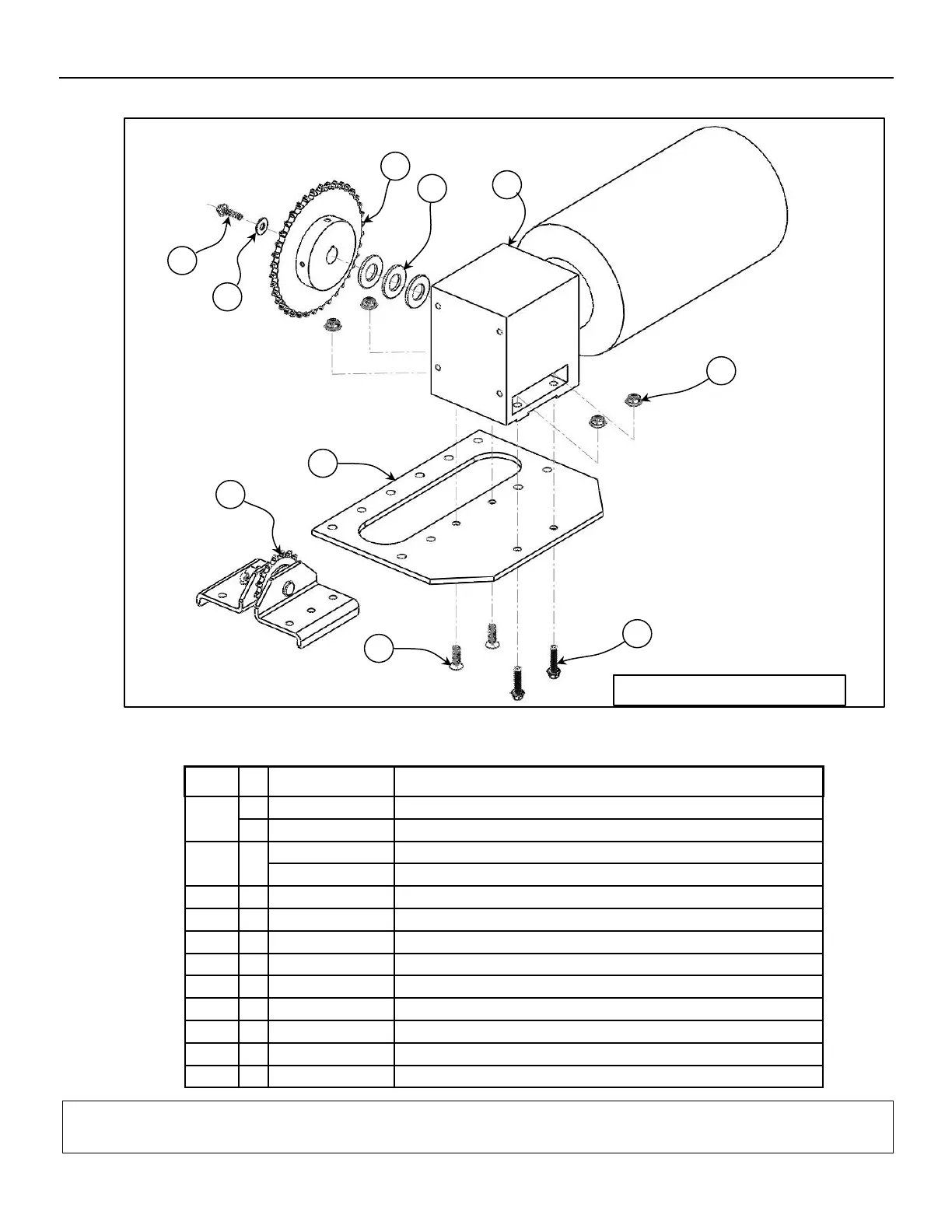

TURBO SLIDE MOTOR ASSEMBLY
Figure 54
TURBO SLIDE MOTOR ASSEMBLY BOM
ITEM
QTY.
PART #
DESCRIPTION
-
1
P1091120-1
Motor Assembly, LH, Turbo-Slide(Opposite Hand)
1
P1091120-2
Motor Assembly, RH, Turbo-Slide (Shown)
1
1
1090233-1
Turbo-Slide Motor/Gearbox, LH Mount (Opposite Hand)
1090233-2
Turbo-Slide Motor/Gearbox, RH Mount (Shown)
2
1
P1091121-0
Motor Mount Plate, Turbo-Slide
3
1
P1091122-0
Idler Assembly, Turbo-Slide
4
1
P1091123-0
Drive Sprocket, Motor, Turbo-Slide
5
2
Consult Factory
5/16-18 x 1.25 Hex Bolt
6
2
P1091202-0
HSFMS, 5/16-18 x 1"
7
4
P1091215-0
HLNSF, 5/16-18
8
1
P1091207-0
SFHHCS, 1/4-20 x 1"
9
1
Consult Factory
ؼ Flat Washer
10
3
Consult Factory
ؾ Flat Washer
10
1
2
Turbo Slide Motor Assembly
5
3
4
9
8
7
6
ALWAYS INCLUDE SERIAL NUMBER OF DOOR WHEN PLACING ORDER
Due to product enhancement, the actual parts on your door may be different from those shown in this manual.
