Saab 9-4X Owner Manual - 2011
Vehicle Care 10-33
Front Wiper Blade
Replacement

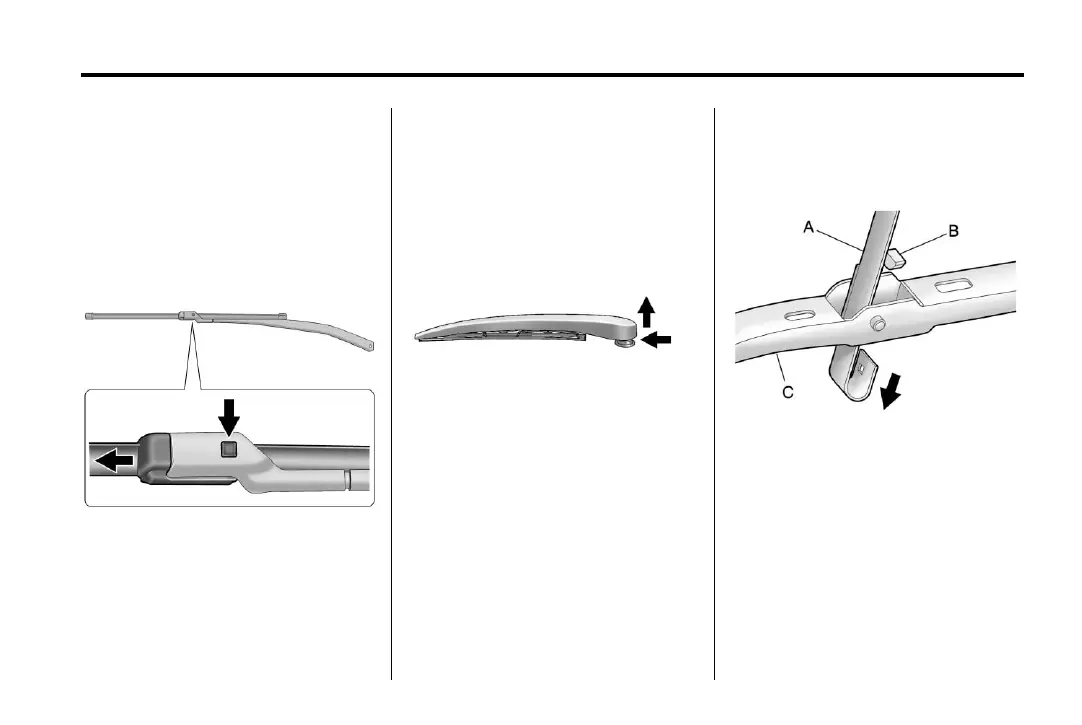

To replace the wiper blade
assembly:
1. Pull the windshield wiper
assembly away from the
windshield.
2. Press the button in the middle of
the wiper arm connector, and
pull the wiper blade away from
the arm connector.
3. Remove the wiper blade.
4. Reverse Steps 1 through 3 for
wiper blade replacement.
Rear Wiper Blade Replacement
The rear wiper blade and wiper arm
have a cover for protection. The
cover must be removed before the
wiper blade can be replaced.
To remove the cover:
1. Slide a plastic tool under the
cover and push upward to
unlock.
2. Slide the cover toward the wiper
blade tip to unhook it from the
blade assembly.
3. Remove the cover.
4. After replacing the wiper blade,
the cover hooks must slide into
the blade assembly slots
and lock.
To remove the wiper blade:
1. Lift the wiper arm away from the
windshield.
A. Wiper Arm
B. Release Lever
C. Blade Assembly
