Vehicle Care 10-35
.
The vehicle should be normally
loaded with a full tank of fuel and
one person or 75 kg (160 lbs)
sitting on the driver seat.
.
Tires should be properly inflated.
Headlamp aiming is done with the
vehicle's low-beam headlamps. The
high-beam headlamps will be
correctly aimed if the low-beam
headlamps are aimed properly.
To adjust the vertical aim:
1. Open the hood. See Hood on
page 10‑5 for more information.

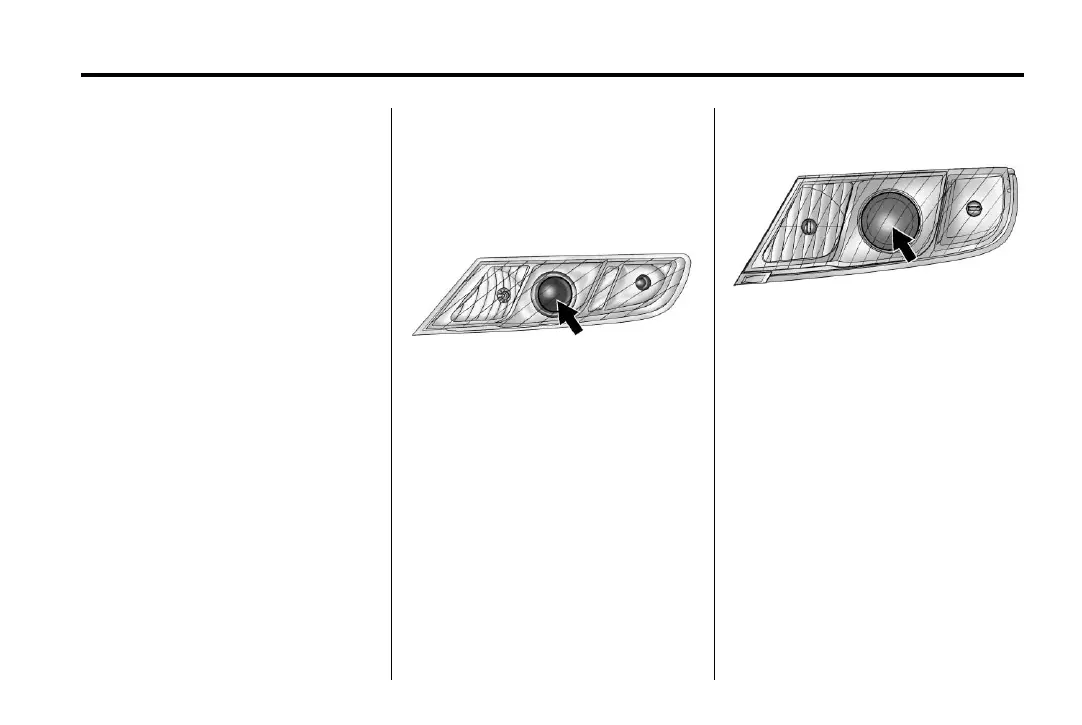

Base Vehicle (Halogen
Headlamps)
Uplevel Vehicle (HID Headlamps)
2. Locate the aim point at the
center inner projector
condensing lens of the low-beam
headlamp (not the outer lens).
3. Measure the distance from the
ground to the aim dot on the
low‐beam headlamp. Record the
distance.
