Saab 9-4X Owner Manual - 2011
Vehicle Care 10-37
For the vehicle equipped with a
base level lamp (halogen bulb),
there will be one vertical
headlamp aiming screw (V1).
The aiming screw (V1) is
adjusted from the engine
compartment side of the
beauty cover.
For the vehicle equipped with an
uplevel headlamp (HID), there
will be two vertical headlamp
aiming screws (V1 and V2). The
aiming screw (V2) is adjusted
through the access hole in the
beauty cover.
The adjustment screw can be
turned with a 6 mm hex key.
8. For the base vehicle, turn the
vertical aiming screw (V1) until
the headlamp beam is aimed to
the horizontal tape line. Turn it
clockwise or counterclockwise to
raise or lower the angle of
the beam.
For the uplevel vehicle, turn the
vertical aiming screws (V1 and
V2) simultaneously until the
headlamp beam is aimed to the
horizontal tape line. Turn them
clockwise or counterclockwise to
raise or lower the angle of
the beam.

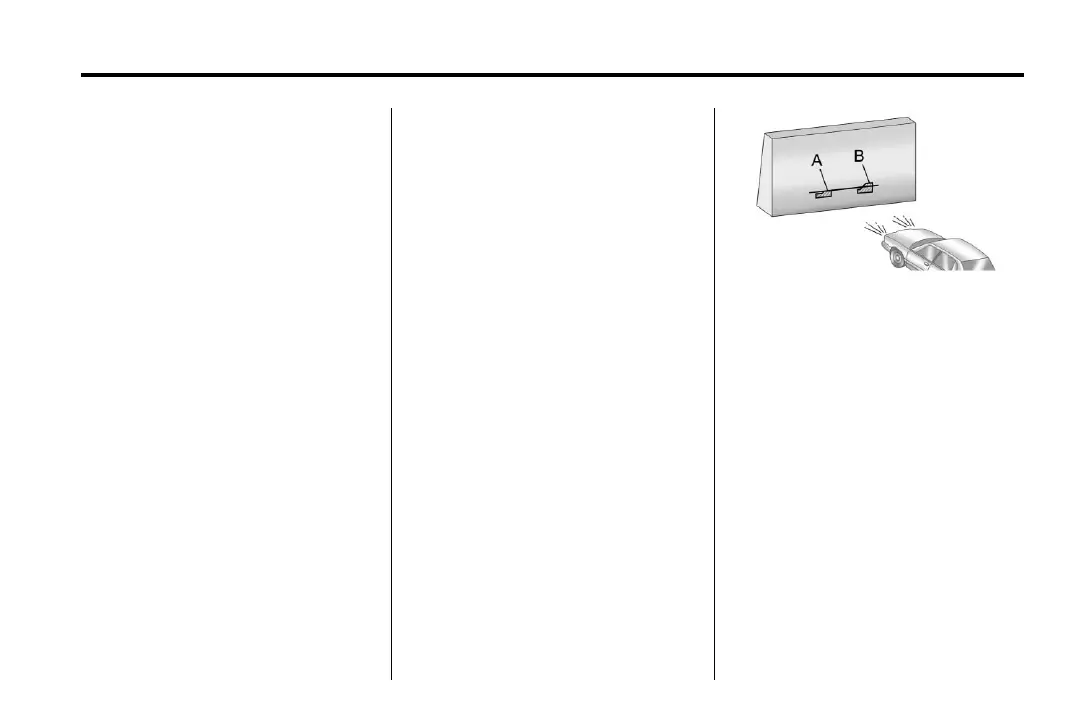

9. Make sure that the light from the
headlamp is positioned at the
bottom edge of the horizontal
tape line. The lamp on the
left (A) shows the correct
headlamp aim. The lamp on the
right (B) shows the incorrect
headlamp aim.
10. Repeat Steps 7 through 9 for
the opposite headlamp.
