Vehicle care 191
Low beam/high beam/daytime
running light
Bulb HB3

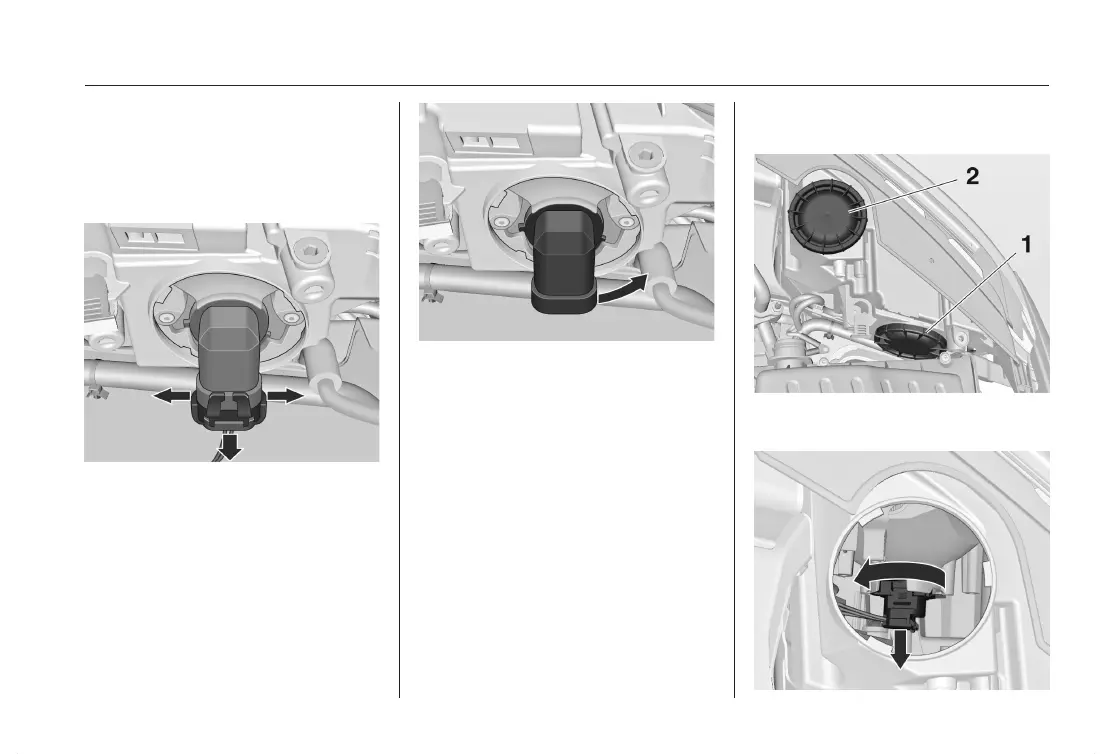

1. Rotate cap 1 counterclockwise
and remove.
2. Disengage clips on the connector
and take off the plug connector
from the bulb. Rotate bulb coun‐
terclockwise to disengage. With‐
draw the bulb from the reflector.
3. Insert the new bulb, engaging the
two lugs into the reflector.
4. Rotate bulb carrier clockwise as
far as it will go.
5. Clip on and engage connector to
the bulb.
6. Fit cap and rotate clockwise.
High beam
Bulb H7
1. Rotate cap 2 counterclockwise
and remove.
