SERVICE MOWER
48-Inch Mower Deck

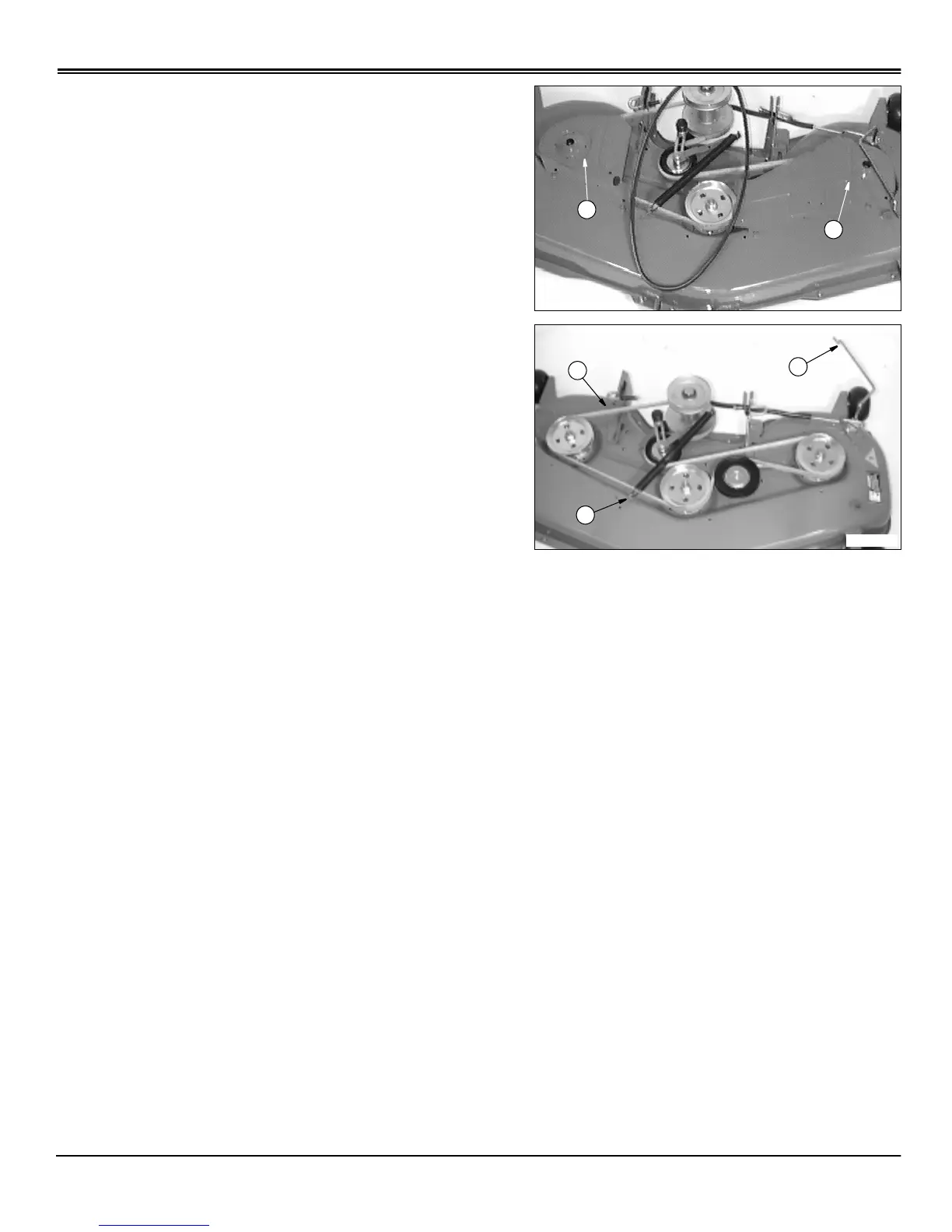

1. Remove three cap screws and belt shields (A).
2. Put drive belt tension rod (B) in the released position
as shown and disconnect idler spring (C).
3. Remove mower belt (D).
4. Clean upper mower deck and sheaves.
5. Inspect belt for wear or damage; replace as
necessary.
6. Install belt (D) on mower deck as shown.
7. Connect idler spring (C).
8. Install two belt shields and fasten with three cap
screws.
9. Install mower deck. (See Installing Mower in Installing
Mower section.)
