Sabre 1848GV - 1848 GV and 1848 HV Only - Box of Parts

Assembly - Page 2
ASSEMBLY

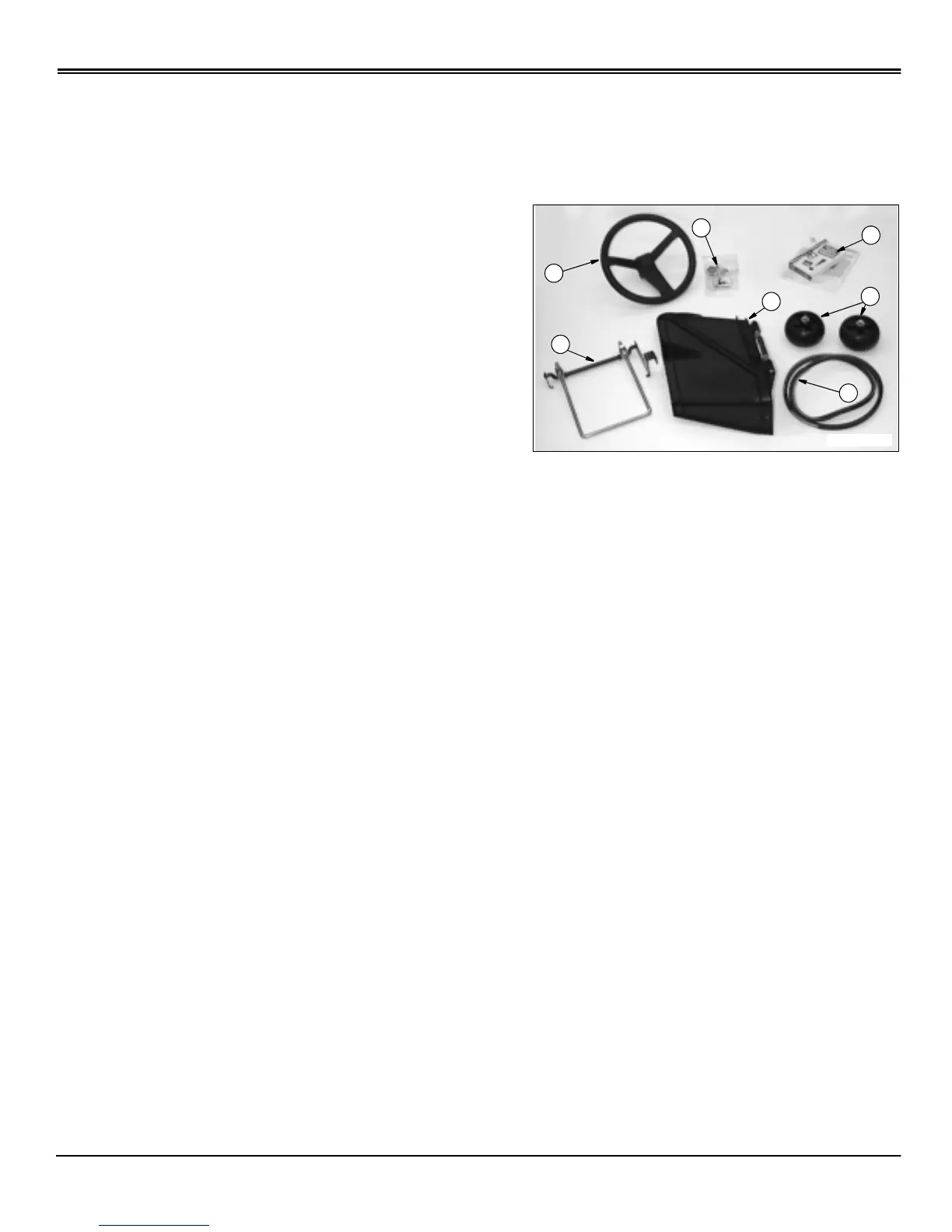

1848GV and 1848HV Only - Box of Parts
NOTE: If you are missing any parts see the
Replacement Parts section for additional service
part numbers.
A Sabre Operator’s Manual
Safety Video
M135884
M134321
B Mower Gage Wheels (2) M111489
C Mower Drive Belt M110312
D Mower Discharge Chute with:
Chute Pin
Chute Spring
Chute Hinge
M123859
M112899
M83410
M83411
E Front Lift Rod Assembly:
Rod
Welded Pivot
Clevis (2)
Spacers (2)
Lock Nuts (2)
Jam Nuts (2)
M132735
AM119811
M113014
M110875
M85540
14M7275
F Steering Wheel AM121918
G Bag of Hardware
• 2 - Bolts
• 2 - Nuts
• 2 - Bushings
• 2 - Washers
• 1 - Shoulder Bolt-Steering Wheel
• 1 - Nut-Steering Wheel
• 1 - Washer-Steering Wheel
• 2 - M8x16 Bolts-Battery
• 2 - M8x16 Nut-Battery
• 2 - M8x20 Bolts-Chute
• 2 - M8x20 Nuts-Chute
• 2 - Keys
H63686
19M7274
14M7396
M111491
M110698
M87404
M63662
24H1721
19M7775
14M7303
03M7184
14M7464
M127340
