Service Mower - Page 51
SERVICE MOWER
Replacing Mower (Secondary) Belt
1. STOP engine, LOCK park brake, push PTO switch
down to DISENGAGE, turn key to the OFF position, and
remove key.
2. Remove mower deck. (See Removing Mower in
Removing Mower section.)

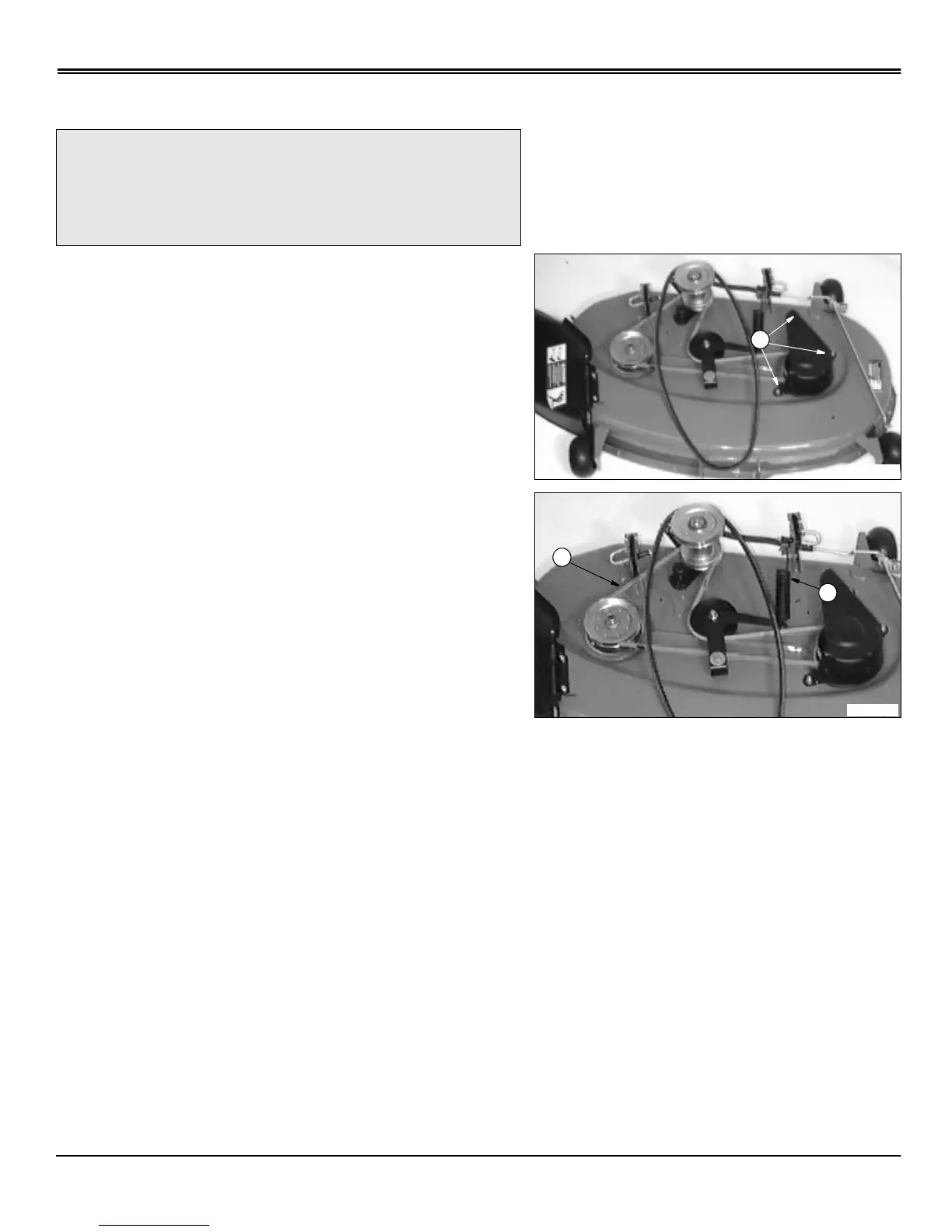

42-Inch Mower Deck
1. Remove three carriage bolts, washers, and nuts (A)
and belt shield if necessary.
2. Disconnect idler spring (B).
3. Remove mower belt (C).
4. Clean upper mower deck and sheaves.
5. Inspect belt for wear or damage; replace as
necessary.
6. Install belt (C) on mower deck as shown.
7. Connect idler spring (B).
8. Install belt shield and fasten with three carriage bolts,
washers, and nuts.
9. Install mower deck. (See Installing Mower in Installing
Mower section.)
c
CAUTION: To avoid injury: Before replacing
mower drive belt: STOP engine, remove key,
wait for all moving parts to STOP, and wear
gloves when replacing belt.
