Installation

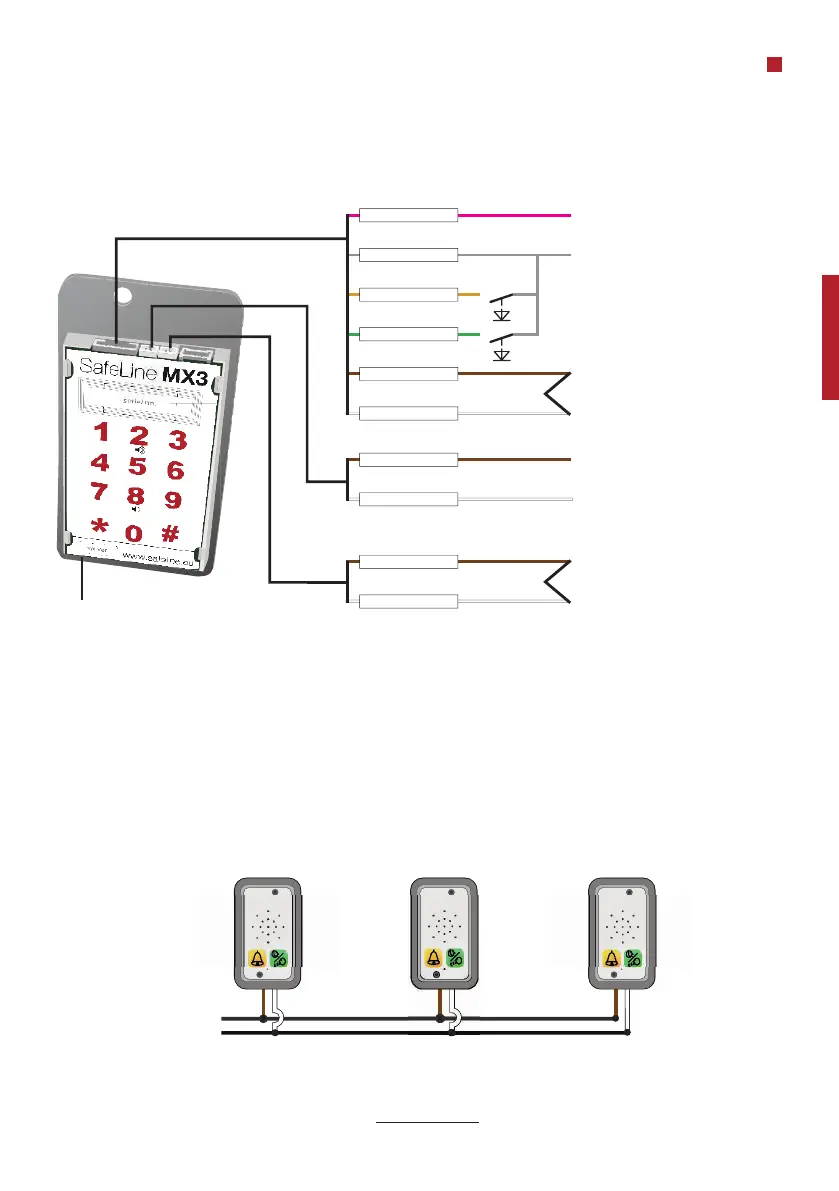

WIRING DIAGRAM
PINK
GREY
YELLOW
GREEN
BROWN
WHITE
Voltage supply +10 - 30 V
Voltage supply 0 V
Additional input (fi lter)
Input alarm button
Telephone line in
Output 1
Output 2
Additional alarm button, only N/O.
NOTE: *Cable13 is required.
Additional Voice Unit
For example: LT-STAT01
NOTE: When connecting an additional remote station *Cable14 is required.
BROWN
WHITE
BROWN
WHITE
Parallel-wiring, SafeLine MX3 on PSTN Line (max 9 units)
Telephone line in
NOTE: In order to access the unit remotely, it needs to be assigned a unit number.
Please refere to the Parameter list (* 82 *) for more information.
NOTE:
Please refer to
the Parameterlist #88 for
programming information.
*Cable13 is required.
To Next Page
