10 - 30 VDC
max 200 mA
10 - 30 VDC
max 200 mA
CABLE13
X
MX3 v1.06 EN
Installation
or
MX3
In this example the settings
are confi gured as:
Output 1: Alarm
*88*13#
Output 2: System failure
*88*22#
In this example the settings
are confi gured as (default):
Output 1: Yellow Pictogram
*88*10#
Output 2: Green Pictogram
*88*20#
WHITE BROWN WHITE
BROWN
Green Pictogram
Yellow Pictogram

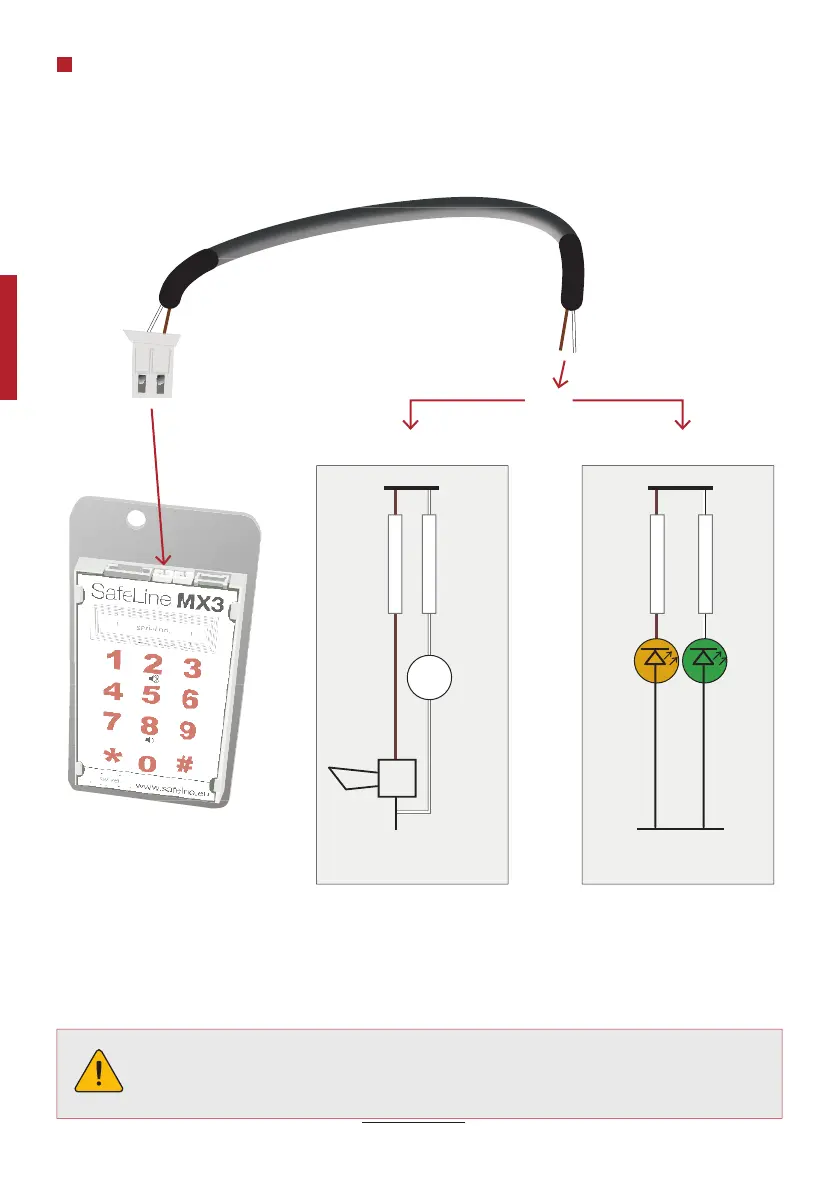

WIRING DIAGRAM, OUTPUT 1 AND 2
NOTE!
Requires that the output is confi gured for the corresponding function.
Please refere to the Parameter list (#88) for more information.
for example for example
Use CABLE13 to connect SafeLine MX3 with external accessories.
