11 Connections, Pictures, Examples

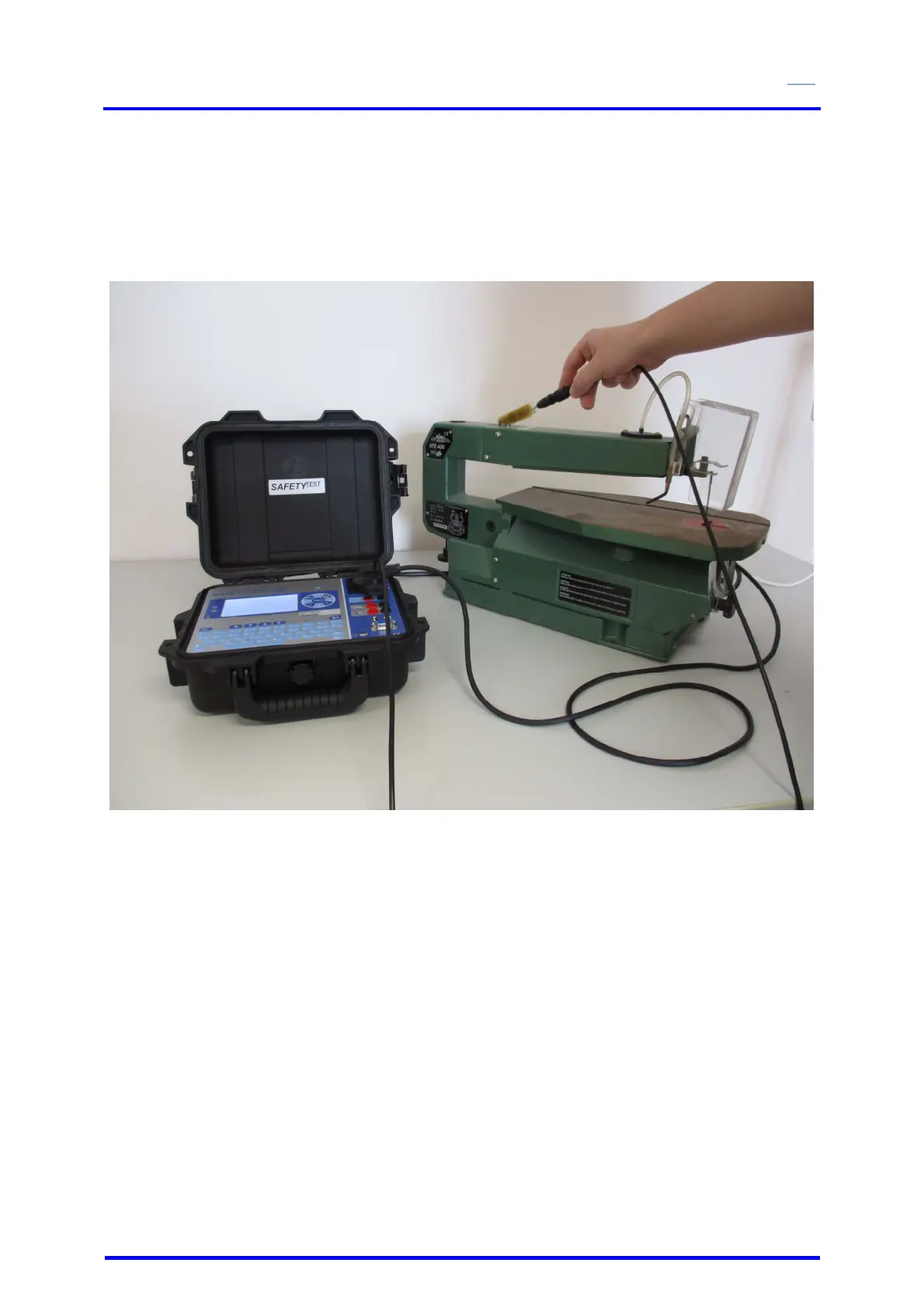

11.1 Earth bond test of AC appliances
Protective conductor: Use the protective conductor probe to scan the housing parts and
move the connection cord.
11.2 Earth bond test of three phase equipment using a test lead
Earth bond test: Use the probe to test all conductive parts connected to PE. Move the power
cord.
Permanently connected equipment: Use the profile “Fixed equipment”. Connect the tester to
mains. Probe all conductive parts connected to PE. The earth bonding is tested via the PE
connection of the tester, the installation and the connection of the unit under test. Therefore
the limit value is higher than the normal limit value.
