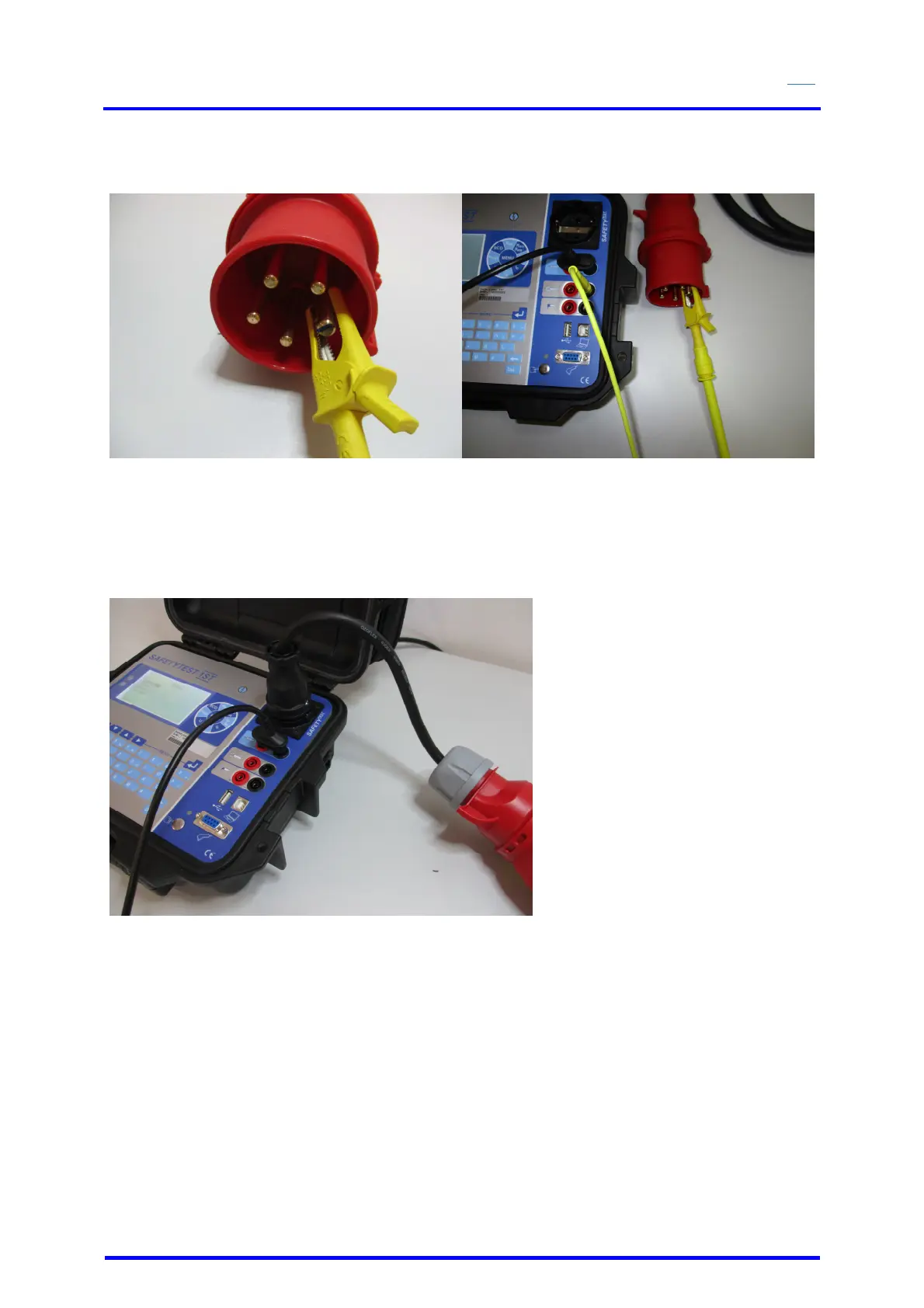

11.3 Earth bond test of three phase equipment using the extension lead adapter
Testing sequence: „Cl with Clamp“. Connect the test lead to the yellow connection on the
tester and the large earth pin on the CEE connector. Probe all earthed parts of the appliance
under test.
11.4 Accessible conductive parts not connected to PE
Testing sequence: „Cl with Clamp“. Connect the extension lead adapter to the tester and plug
the appliance into the CEE socket. Probe all earthed parts of the appliance under test.
11.5 Exposed insulated conductive parts
Testing conductive parts not connected to PE: Use the probe to test these parts. If there
are rotating or moving parts test these in motion. The best way is to use the optional brass
brush probe. Use protective glasses.
