Insulation resistance test LN-PE, Substitute leakage test: Connect appliance to test
socket. Switch on the appliance. The test is done without applying mains.

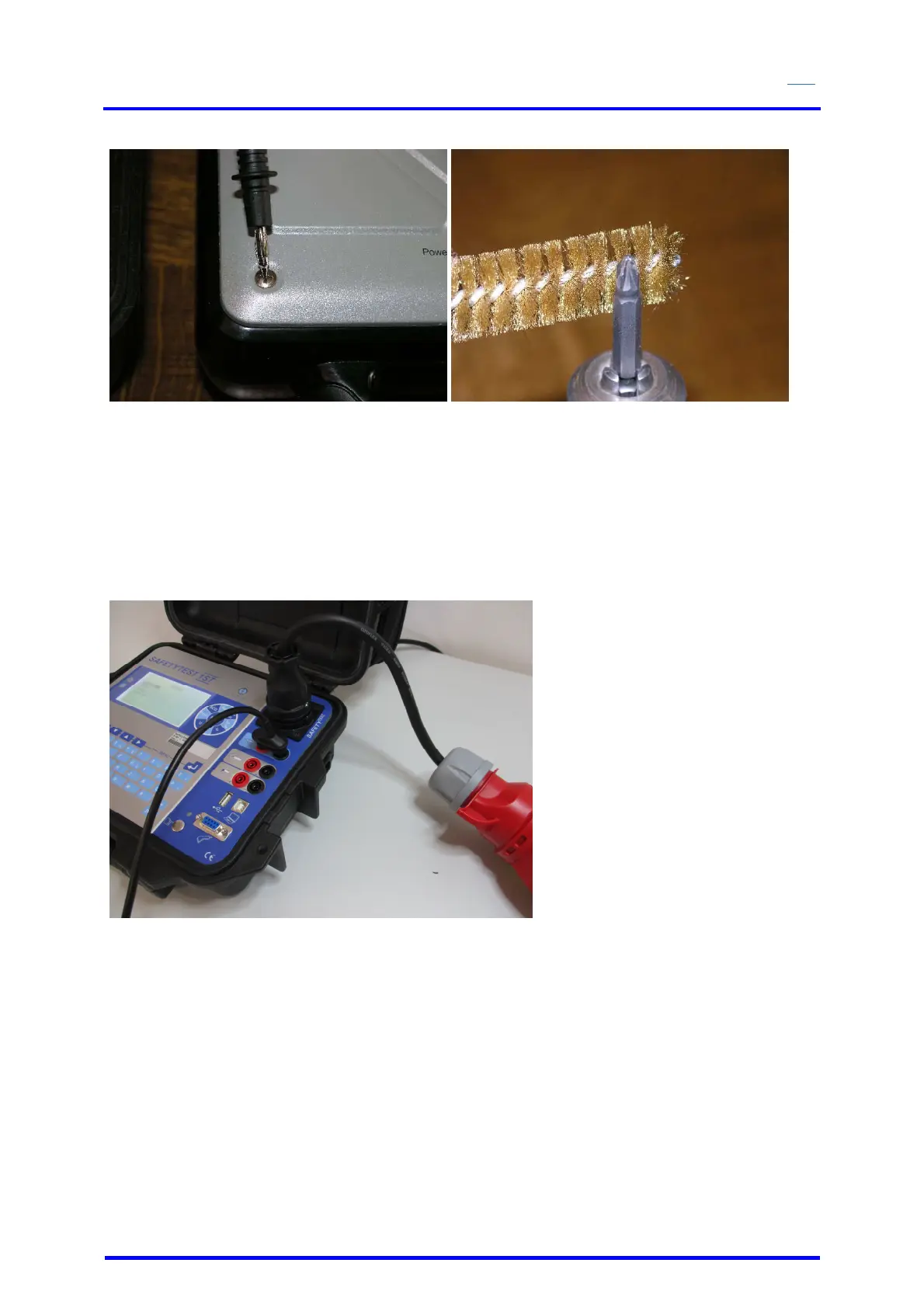

11.6 Insulation resistance test LN-PE of three phase equipment using the
extension lead adapter
11.7 Earth leakage test of AC appliances with plug
Testing sequence: „Cl with Ins test“. Connect the extension lead adapter to the tester and
plug the appliance into the CEE socket. Turn on the appliance under test.
11.8 Earth leakage test on three phase equipment using the three phase adapter
Earth leakage test, functional test: Connect the appliance to the test socket. The appliance
is tested with mains applied to it.
