Power supply from electrical source shall be switched off before starting the installation.
Before proceeding, make sure that the person in charge of installation and connections, is properly connected to
earth, in order to prevent Electrostatic Discharges (ESD).

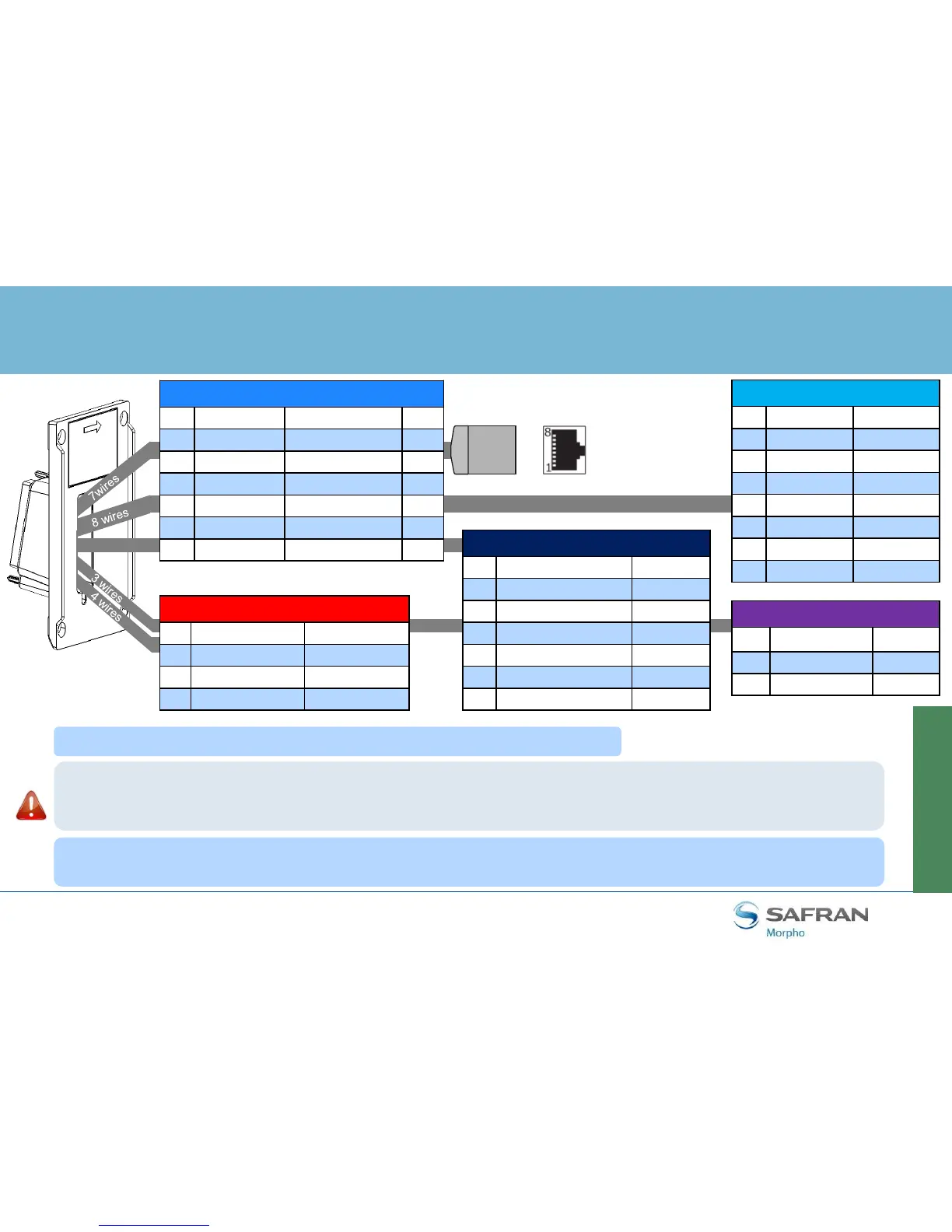

Wiring Overview
MorphoAccess® SIGMA Lite Series –
Quick User Guide - 2015_2000005700-V4
All connections of the terminal are of SELV (Safety Electrical Low Voltage) type.
Step two : wiring
7 wires
RJ-45
Backup of the Date/Time of the terminal: the volatile settings (such as date/time) of the terminal are protected against
power failure, by a dedicated component during a least 24 hours (at 25
o
C) without external power supply.
RJ-45 : Ethernet & PoE
25 ETH TX+ Orange 1
27 ETH TX- Orange / White 2
29 ETH RX+ Green 3
31 ETH RX- Green / White 6
30 ETH VPORT+ Blue 4&5
32 ETH VPORT- Blue / White 7&8
28 ETH GND Drain wire (no color) shell
Internal Relay
19 RELAY_NO Yellow
21 RELAY_NC Orange
22 RELAY_COM Grey
Wiegand IN & Wiegand OUT
13 WIEGAND_IN0 Green / Red
15 WIEGAND_IN1 White / Red
14 WIEGAND_OUT0 Green
16 WIEGAND_OUT1 White
17 WIEGAND_LEDOUT1 Blue
18 WIEGAND_LEDOUT2 Blue / Red
20 WIEGAND_GND Black / Red
RS-485, GP IN & OUT
5 RS485_A Blue
7 RS485_B Blue / Red
6 RS485_GND Black / Red
9 GPI_0 Orange
10 GPI_1 Orange / Red
11 GPO_0 Yellow
12 GPO_1 Yellow / Red
8 GPIO_GND Black / Red
Power supply & Tamper switch
1 Power + 12V Red
2 Power GND Black
3 SWITCH_PIN1 Light Blue
4 SWITCH_PIN2 Pink
