Single Door Access Control (SDAC)
MorphoAccess® SIGMA Lite Series –
Quick User Guide - 2015_2000005700-V4
If door contact is not used, GPI1 (9) and GPO1 (11) shall be connected together
Power
supply

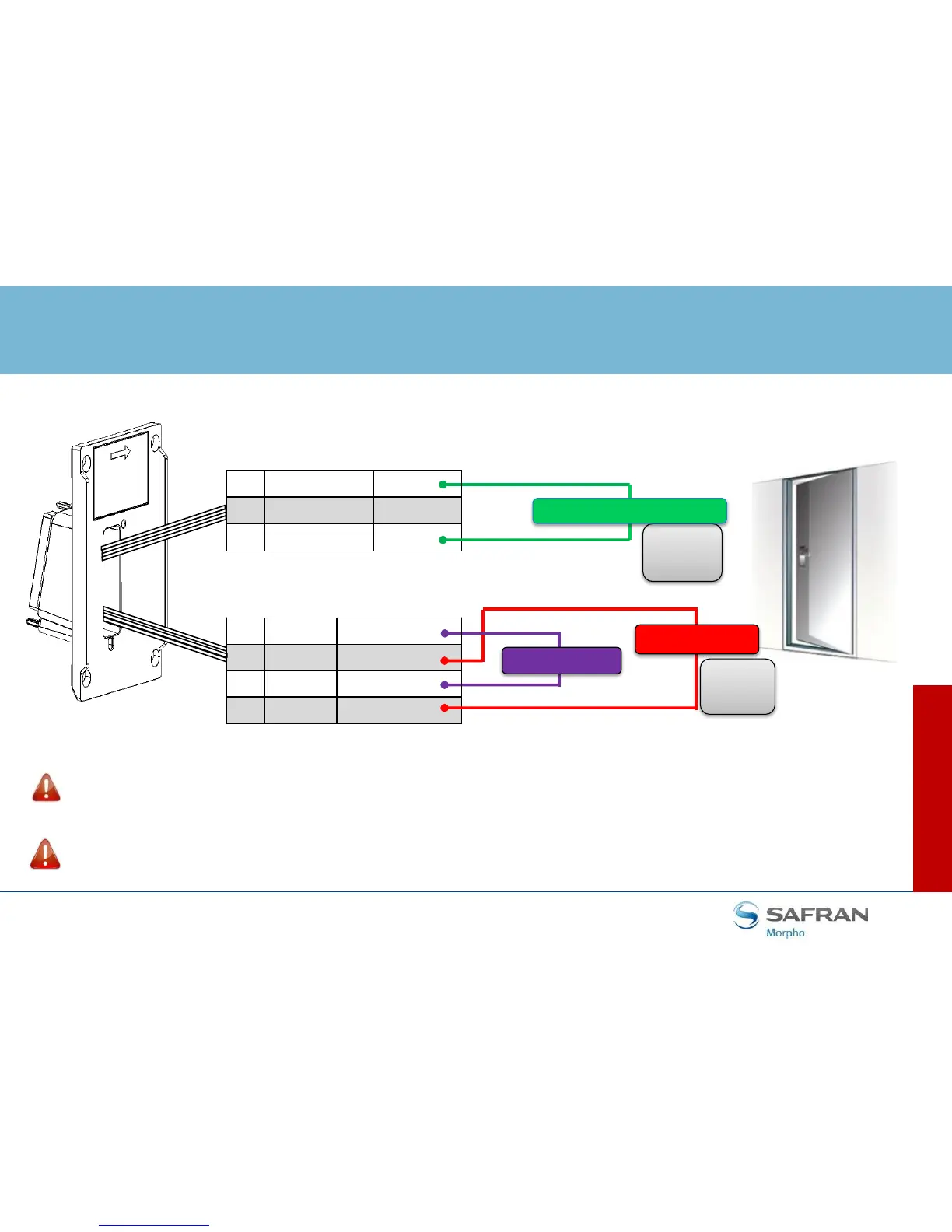

Single Door Access Control (SDAC) wiring sample : with Push Button
Deadbolt / Door strike
Door contact
Step four: ACP or SDAC
Power
supply
19 RELAY_NO Yellow
21 RELAY_NC Orange
22 RELAY_COM Grey
Push Button
Power supply from electrical source shall be switched off before starting the installation.
9 GPI_0 Yellow
10 GPI_1 Orange / Red
11 GPO_0 Yellow
12 GPO_1 Yellow / Red
See details on next page
for relay connection
