2 - Connecting the SAGEM F@st
TM
800 / 840
SAGEM F@st™ 800 / 840 (PPP) User Guide - 288 047 975-03
Page 2-4 Sagem Communication document. Reproduction and disclosure prohibited
2.1.2 Connecting the SAGEM F@st™ 840
The connections must be made in the following order:
1
Connect the RJ45 connector of the cable to the input splitter
2 Connect the RJ11 connector of the cable to the LINE connector on the modem
If using an input splitter or a microfilter, their outputs must also be fitted with RJ45 connectors.
If not, contact your Operator for an adapter or a specific cable.
3
Connect the "flat" connector at one end of the USB cable to one of the type
A USB ports on the computer (or on the HUB if appropriate), marked with
the following symbol:
4 Connect the "square" connector at the other end of the USB cable to the USB connector
on the rear panel of the modem, when prompted by the driver installation software.

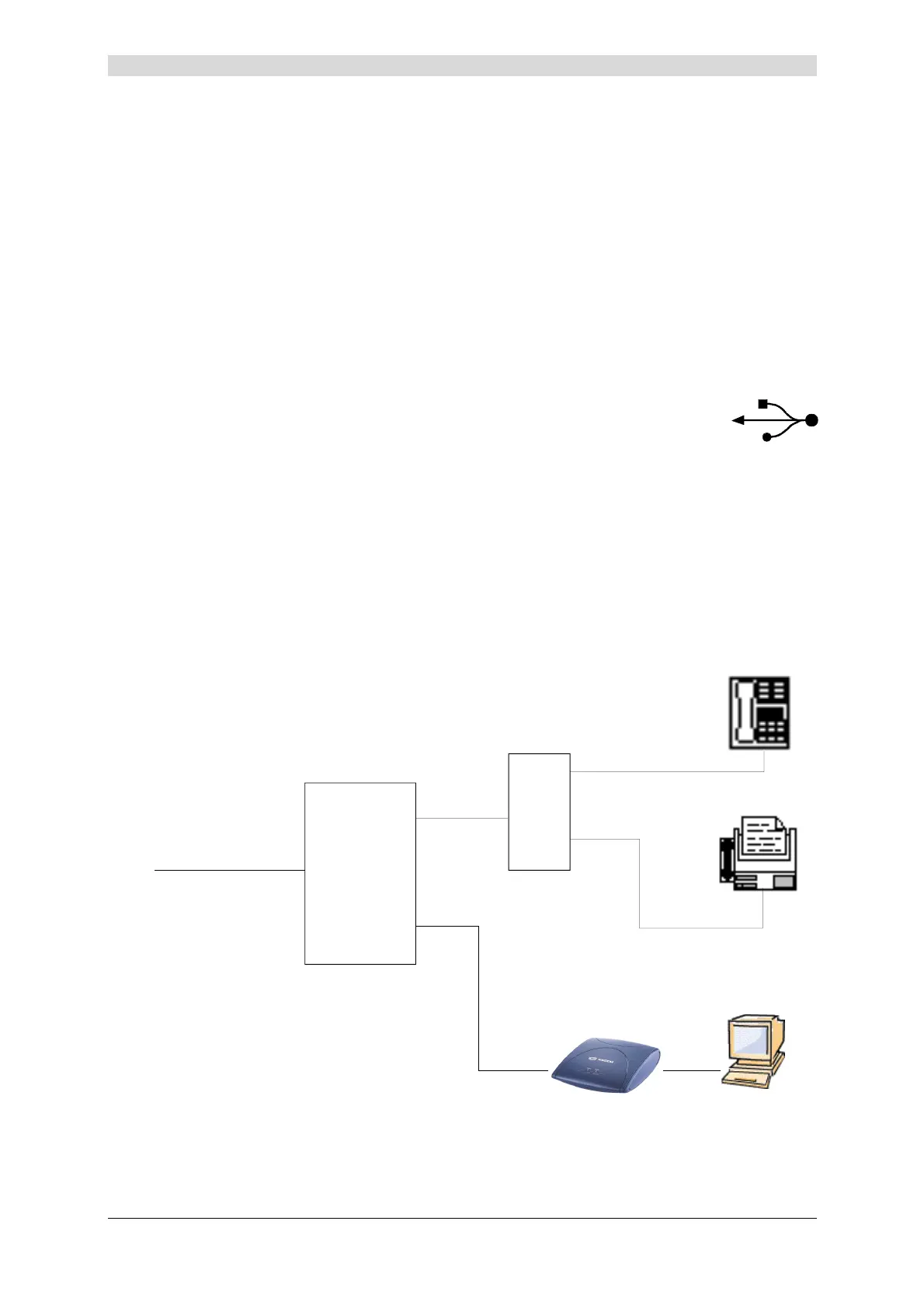

Connecting analog terminals
An input splitter is required when using the SAGEM F@st™ 840 and analog terminals on the
same telephone line.
SAGEM F@st
TM
840
U
S
PC
FAX
SPLITTER
FAX
TELEPHONE
Analog + ADSL Signals
ISDN
NT
Analog Signal
Analog Signal
Your Operator will tell you how many analog terminals can be connected.
