6. QUICK INSTALLATION
Before connecting your device, please ensure that Digital Terrestrial Television (DTT) is available in your
area.

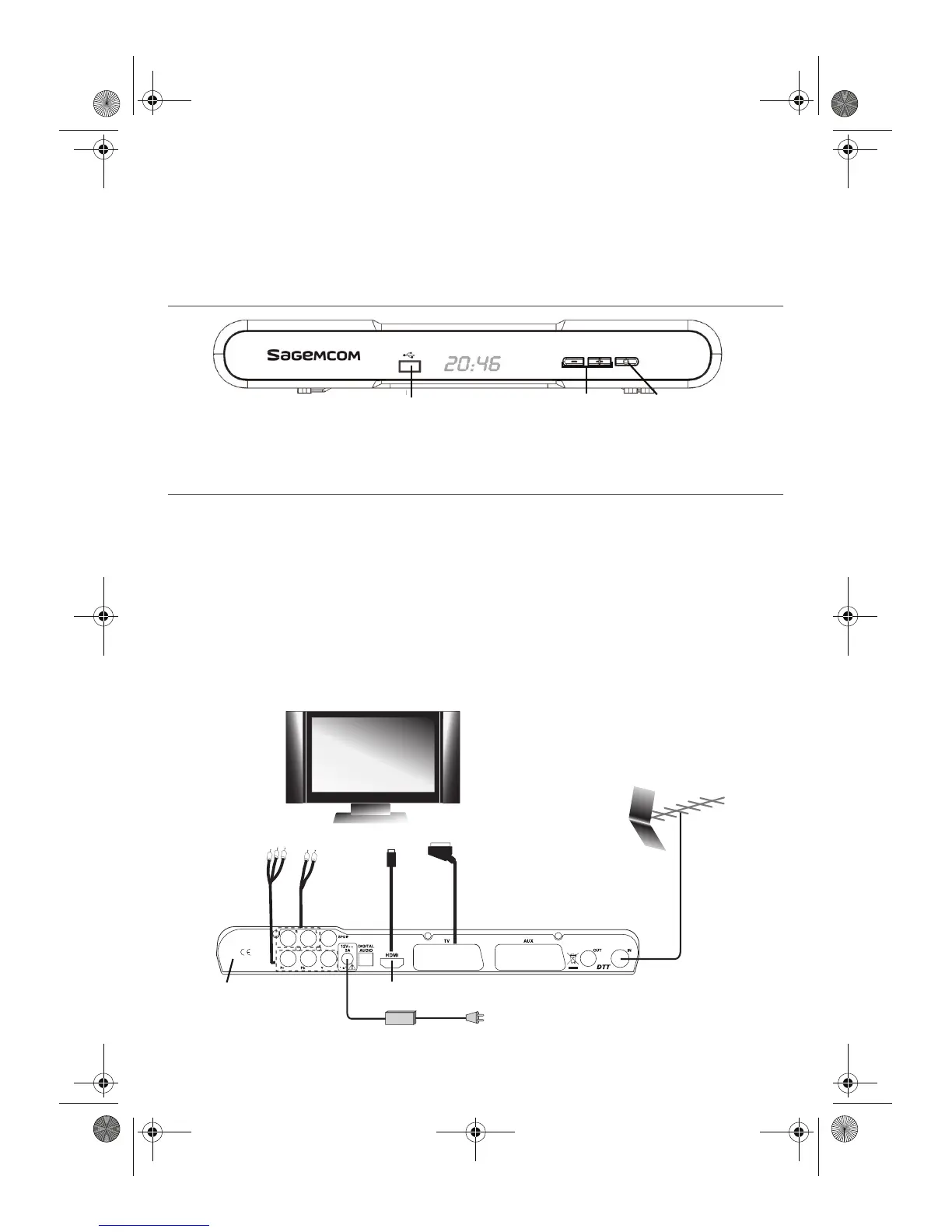

6-1 FRONT PANEL OF THE RECEIVER
6-2 CONNECTION OF THE RECEIVER TO THE TV SET
Before installing your receiver, please check that the delivery is complete: instructions, remote control,
batteries (X2), Scart lead and AC/DC adapter.
Please ensure that the appliances to be connected together (receiver, TV, VCR…) are unplugged before
making any connections.
Connect the appliances together as shown in the diagrams and plug them back into the power socket.
For optimal quality, preferably connect the Scart lead to the TV Scart socket that is marked with 3 dots
(RGB).
USB
Channel
buttons
On/Standby
selection
button
YPrPb
Audio R/L
Television set
FAN
(depending
on model)
OROR
DTR6700T series
