SAGEMCOM UM20 User Manual

1-Free Sagemcom - Modification with the authorization of the management concerned – This docu-
ment and the information it contains is the property of Sagemcom
UM User Manual (EN) rev. 3.2
Page 14
3000499643-R11-000-01
4. PHYSICAL DESIGN

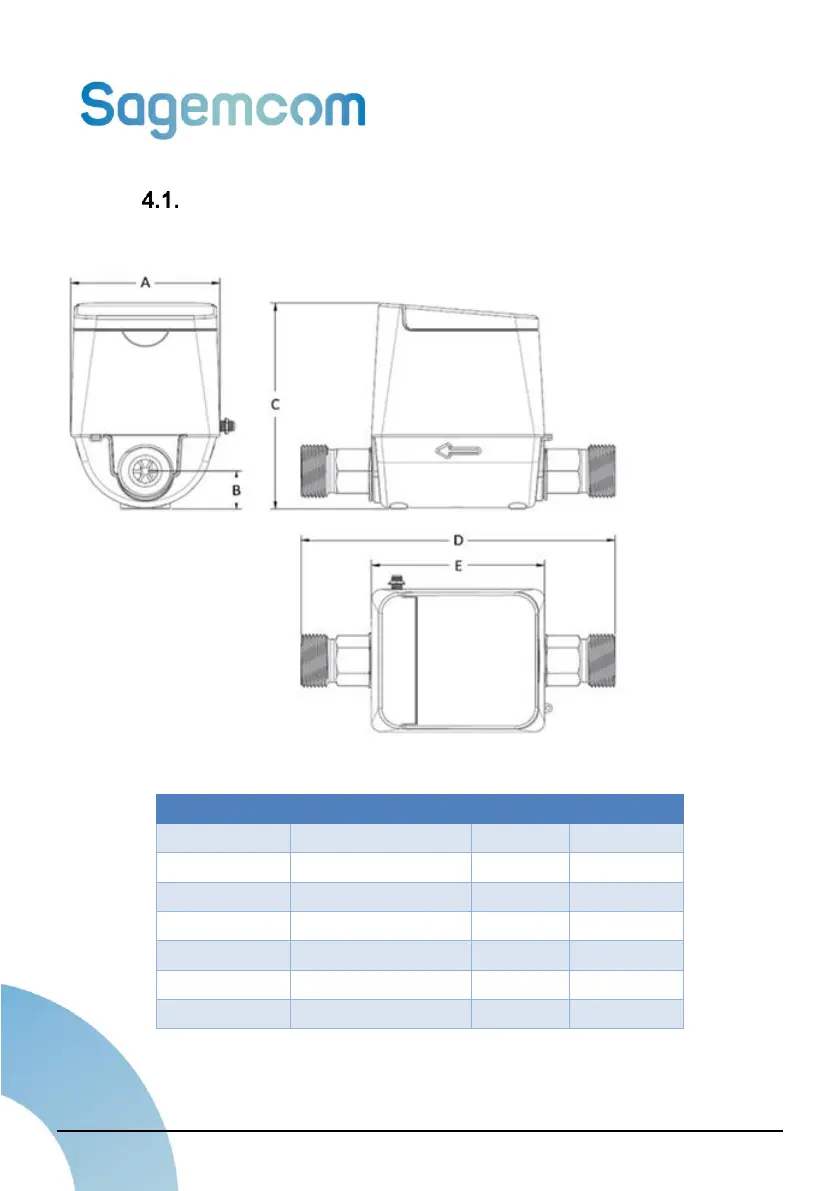

Meter dimensions
The meter has the dimensions described in the next pictures. All values are in millimeters.
Figure 3 – Dimensions.
Notes
UM PL190
UM PL273
Box Width (A)
Except RF connector
90.2 mm
90.2 mm
Height (B)
Height below pipe axis
24 mm
22 mm
Height (C)
Total height
130.3 mm
130.3 mm
Pipe Length (D)
190 mm
273 mm
Box Length (E)
104.6 mm
104.6 mm
Thread
NPSM 1”
NPSM 1 1/4”
Weight
1007 g
1069 g
