6101

6101 Belt

Belt

Belt Scale

Scale

Scale Integrator

Integrator

Integrator Operating

Operating

Operating and

and

and Service

Service

Service Manual

Manual

· Measuring

· Monitoring

· Printing

· Communication

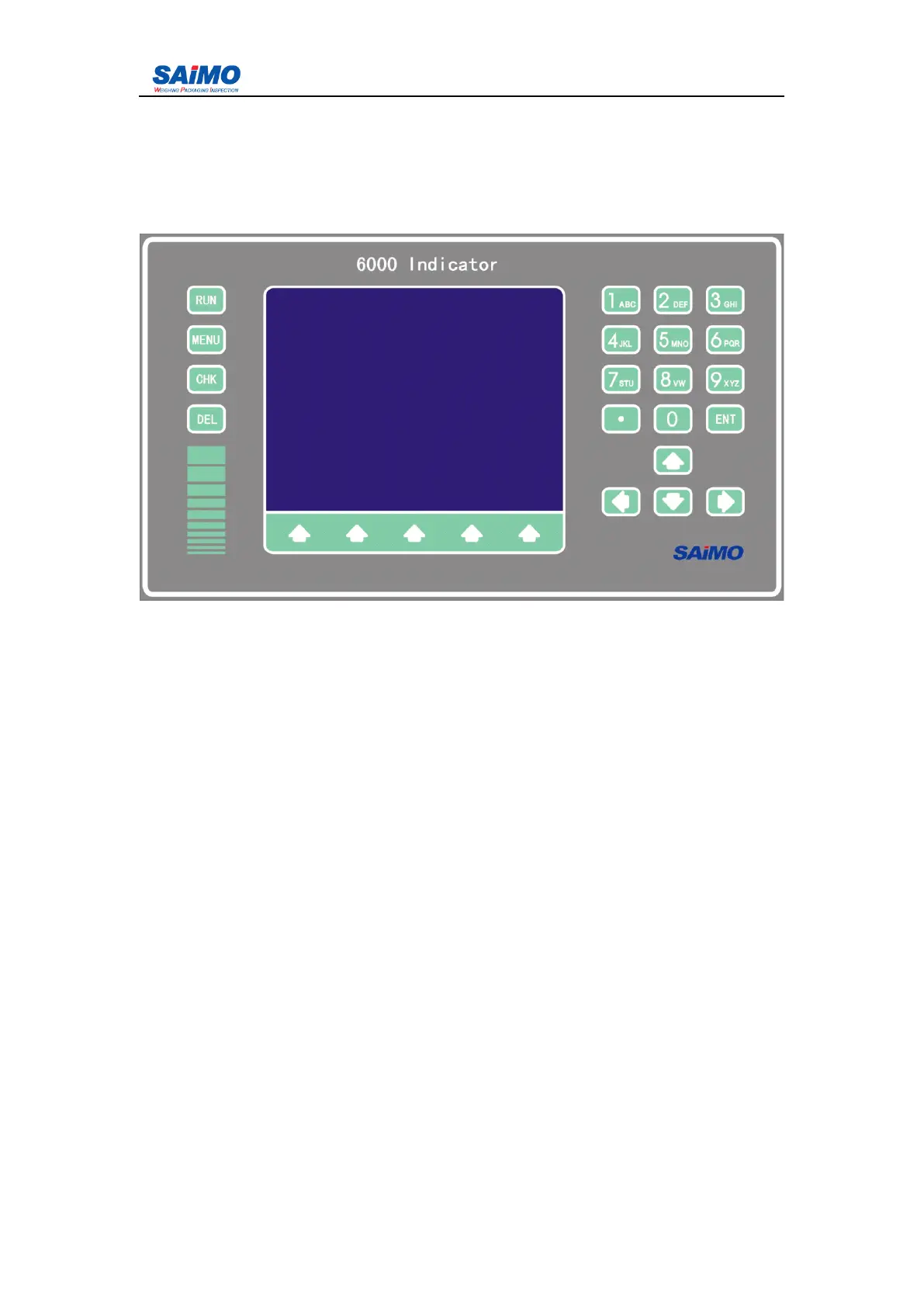

Figure 1- 3 6101 belt scale integrator front panel

1.3.1

1.3.1 Measuring

Measuring

Measuring Function

Function

1. Instantaneous Flowrate Calculation

The signal delivered by the load cell(s), which represents the weight per unit length of

the belt(kg/m), is multiplied by the signal delivered by the speed sensor which

represents the belt speed (m/s). The result of this operation is the instantaneous

flowrate (kg/m x m/s=kg/s) which is then multiplied by suitable constant to obtain the

value in the required engineering units (kg/h or ton/h, etc.). An adjustable damping

filter is provided separately for displayed rate and current outputs.

2. Flow Totalization

The total is accumulated by multiplying mass per unit length by incremental length

and totalizing the result in engineering units.

3. Zero and Span Automatic Calibration

Zero and span calibrations are based on belt length defined by a number of belt

revolutions.

To calculate the exact number of revolutions, the instrument counts the pulses

delivered by the speed sensor (one pulse represents a specific belt length); when the

required number of pulses is reached, the instrument ends the calibration test, and

compares the actual totalized value to the theoretical one (0 for zero calibration), and

calculates the calibration constant.

The calibration constant is a calculated value that can be factored based on an actual

material test.

· Electronic Calibration (R-Cal)

Allows the operator to perform the calibration without the need of applying test
