22
2.
2.
2.
2. 2.6
2.6
2.6
2.6
Load cell
· integrator supplies 10VDC ± 10%
，
500mA excitation power supply, for parallel
connection of up to 8 load cells.
· Sensitivity 0.5mV/V – 3.5mV/V
· Max. input signal 33mV
· Load cell shield grounding
· Excitation compensation circuit is employed when the cable distance is over 60 meters but
less than 900 meters. Local or remote compensation can be selected by a jumper set.
Jumper select local or remote compensation:
J1 J2
F our wire system （ no
compensation ）
A A
S ix wire system
（ compensation ）
B B

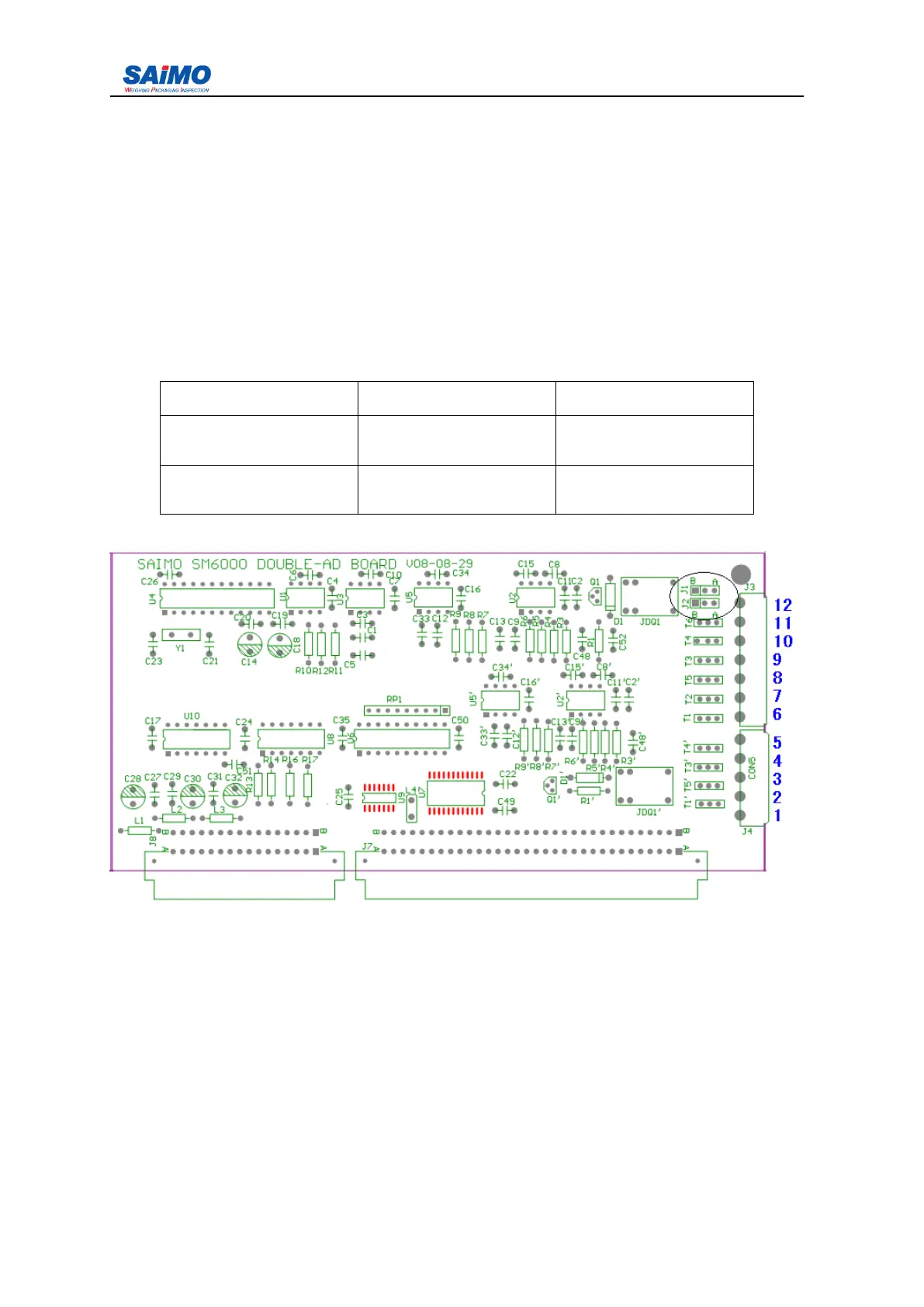

Figure 2- 8 6101integrator load cell A/D board
2.2.7
2.2.7
2.2.7
2.2.7 Integrator
Integrator
Integrator
Integrator analog
analog
analog
analog board
board
board
board
There are both analog input/output modes: two way inputs voltage/current and two way
outputs current. Integrator supports up to 4 current outputs, 4 outputs need two analog board
(the other one is extending analog board, see figure 2-10).
A. User can define 4 — 20mA or 20 — 4mA output current.
B. Two way +/- 5 VDC different input voltage
Input: Incline compensation, humidity compensation, remote setup.
Output ： flow rate, speed, loading, PID output
